Programmable Thermostatic Head HR90EE

Description

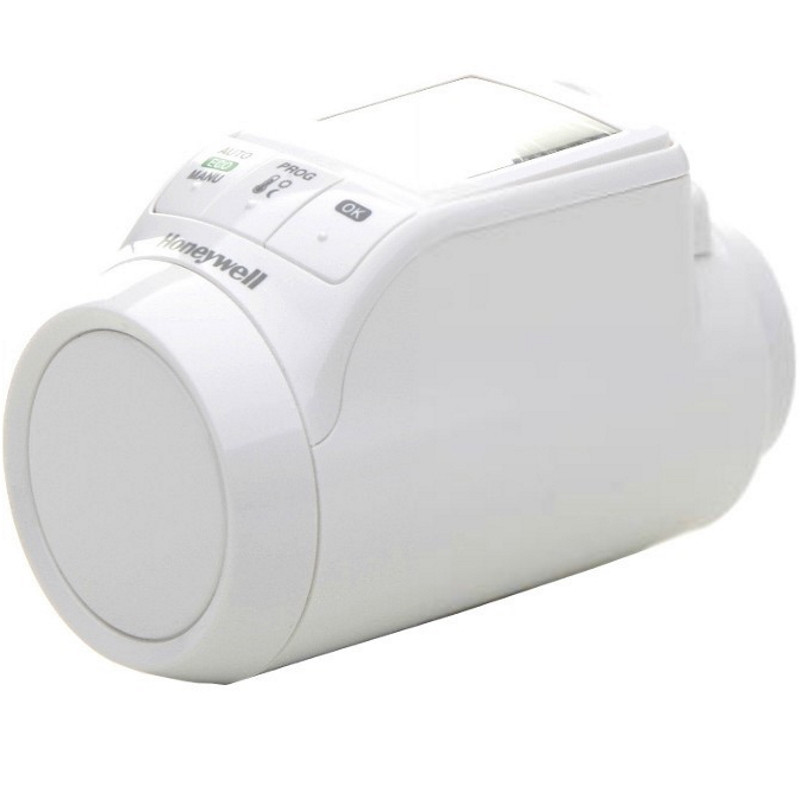

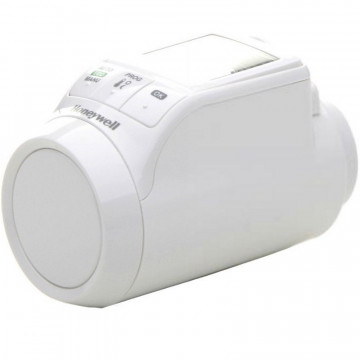

HR90 TheraPro programmable thermostatic head

Mountable radiator valves have been designed to provide individual room temperature control in modern heating systems where area control is desired.

HR90 can be mounted on any conventional radiator valve. No valves are required for Honeywell, Braukmann, Watts, Calefi, MNG, Heimeier, Junkers and Landis & Gyr Duogyr valves, the HR90 adapts to the valve stroke.
Characteristics:

modern design to fit any decor

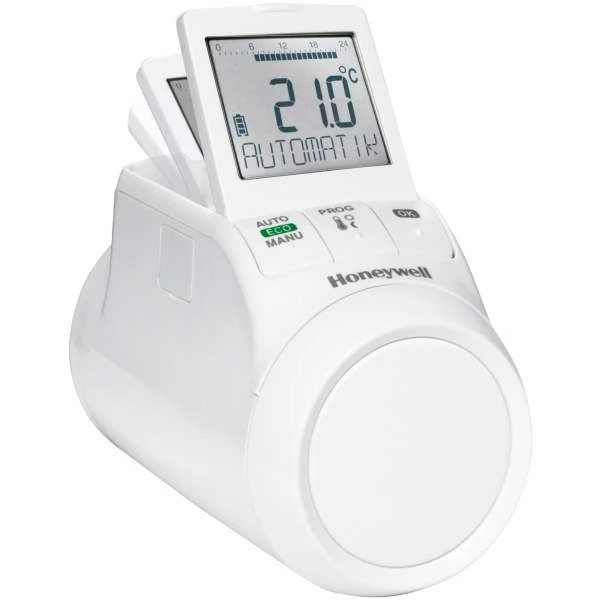

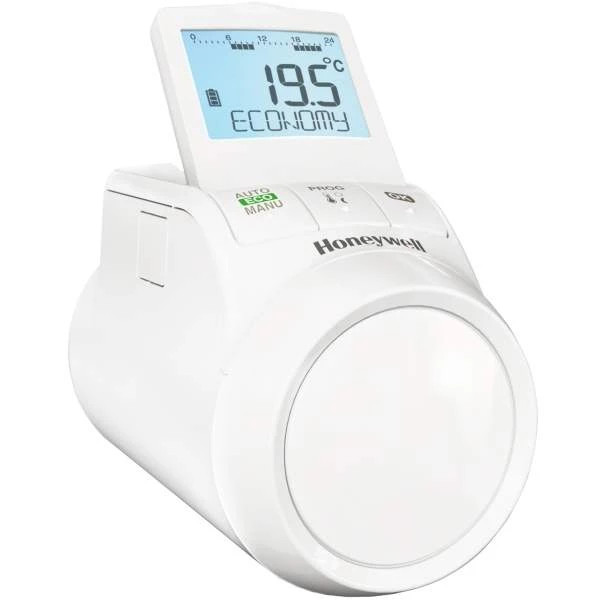

the illuminated liquid crystal display indicates the reference temperature and the result of the self-diagnosis
manual override of the temperature control for the comfort of the user of the area
anti-seizure function activated weekly
automatic detection of the open window to maximize energy efficiency or through the window contact (optional)
battery operation LR6, AA, AM3 / Minion: 2 x 1.5 V / Lithium: 2 x 1.5 V / NiMH: 2 x 1.2 V
self-adaptation to the valve stroke
the internal sensor signal can be used for control or additionally the remote environment sensor can be mounted (optional)
HR90 technical data:

Temperature regulation range: - +5 ... + 30 ° C
Anti-freeze temperature: - + 5 ° C
Dimensions: 96 x 54 x 60 mm
Valve connection: M30x1.5 mm or M28x1.5 mm
Stroke: 3.2 mm, closing size 11.5 mm
Liquid crystal display: indicates operating mode, ambient temperature, reference temperature, low battery
Manufacturer: Honeywell UK
Honeywell HR90 TheraPro programmable thermostatic head data sheet
