Thermostatic Head RAS-C2

Description

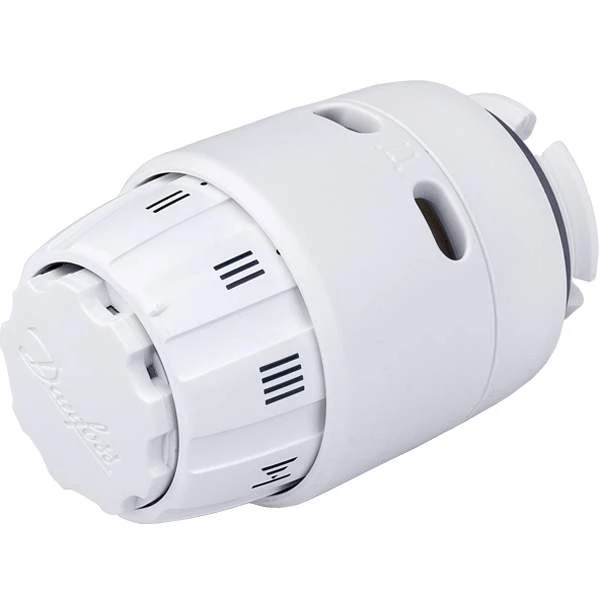

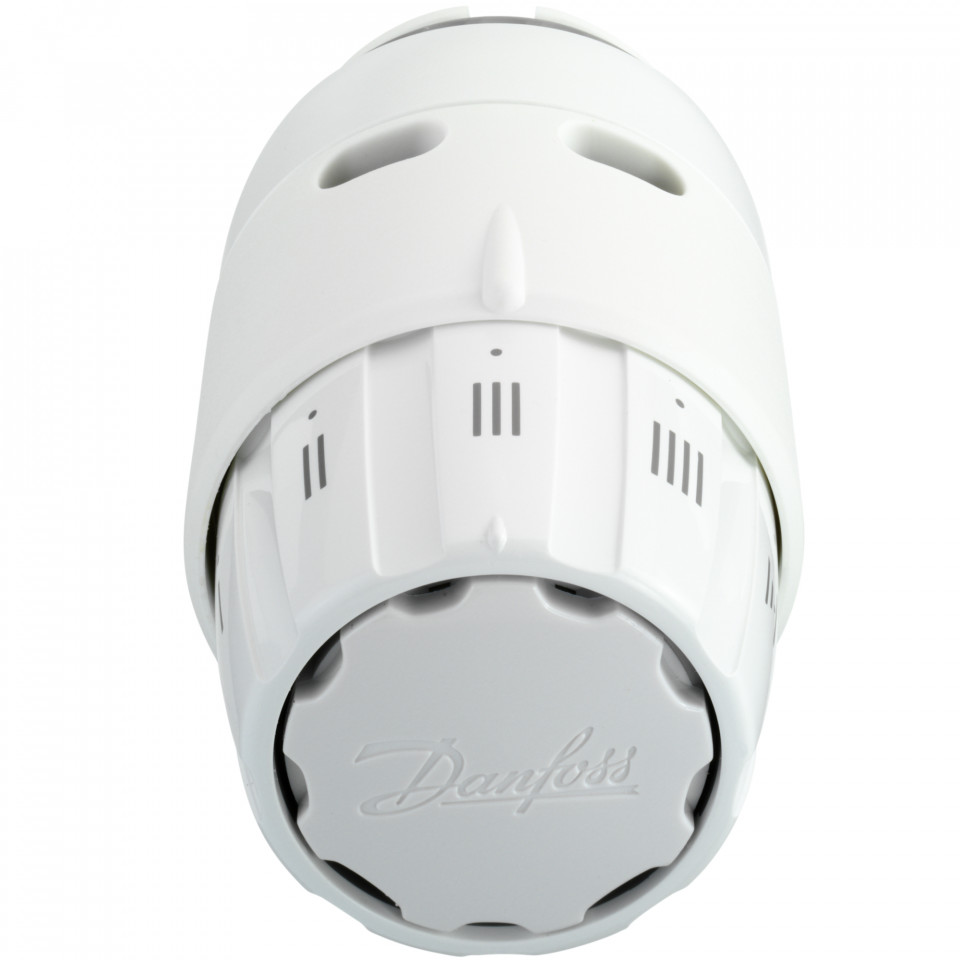

Thermostatic Head Danfoss RAS-C2

The RAS-C2 thermostatic sensor is a narrow P-band proportional automatic regulator. The RAS-C2 has a temperature range of 8 to 28°C and is equipped with a frost protection setting and a precise closure to ensure maximum flexibility.

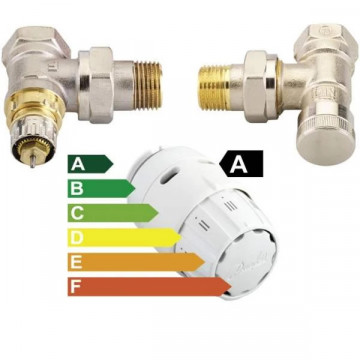

RAS-C² received the A rating for energy efficiency, according to the strict TELL (Thermostatic Efficiency Label) criteria
RAS-C² has a temperature control range from 8 to 28 ° C, as well as a position for frost protection

Product details

Gross weight 0.15 kg, Net weight 0.13 kg
Colour White RAL 9016
Connection type to sensor Plastic nut
Connection type to valve RA
Description Grey socket, positive shut-off feature.
Frost protection Yes
Product group Radiator Sensors
Sensor design RAS-C2
Sensor media Liquid
Sensor setting temperature [°C] [Max] 28°C
Sensor setting temperature [°C] [Min] 8°C
Sensor type Built-in sensor
Sensor version RAS-C2 6040
Shut-off function Yes
Temperature limitation No
Type RAS-C2 Sensors
