Description

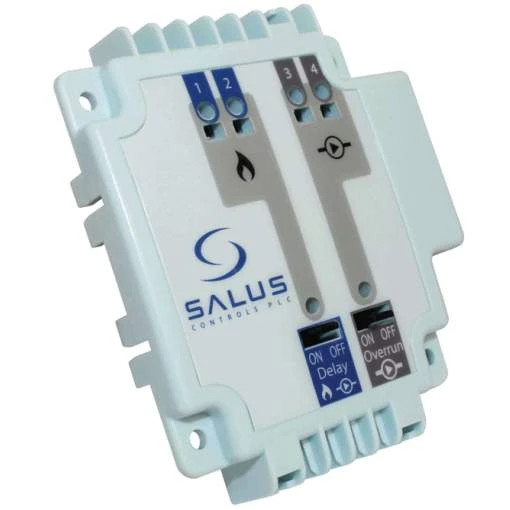

Pump and Boiler Logic Module Salus PL07

The PL07 from Salus Controls is a modular pump and boiler logic control module, designed specifically for heating applications.

FEATURES
• Modular installation
• Cage clamp wiring terminals (no terminal screws)
• Separate circulating pump and boiler control relays
• Volt free contacts
• User selectable pump run-on timer
• Auto shutdown in case of power failure

PRODUCT SPECIFICATION

Model: PL07
Type: Controlled logic module for pump and boiler
control in heating applications.
Switching
1. Circulating Pump Relay:
Switching Voltage: 230V AC, 50Hz
Switching Current: 5A resistive, 2A inductive
Contact Type: Normally Open
2. Boiler Relay:
Switching Voltage: 24V AC or 230V AC, 50Hz
Switching Current: 5A resistive, 2A inductive
Contact Type: Normally Open
Environment
Operating Temperature: 0 ºC to + 50 ºC
Storage Temperature: - 20 ºC to + 60 ºC
Protection
IP Rating: IP20

Details

SKU
PL07
Categories
UFH Automation
Weight
0.2 kg
Brand
Salus
Physical Characteristics
Colour
White
Garantie
5 ani
