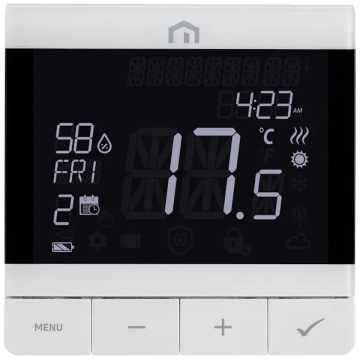

RF Thermostat Unisenza Plus FFUBTRRBDC1CC520

Description

RF Thermostat Unisenza Plus Purmo FFUBTRRBDC1CC520

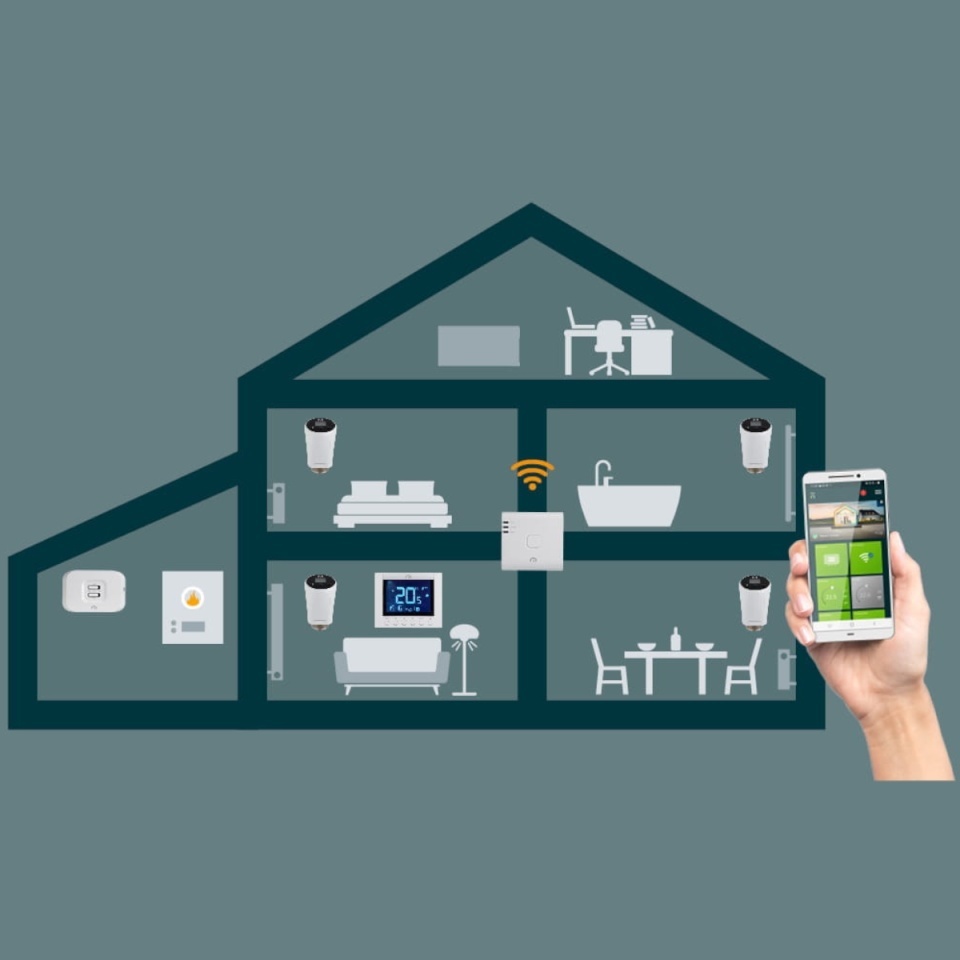

The Unisenza Plus UFH Thermostat RF is a Room Thermostats battery powered with Zigbee 3.0 ideally for an underfloor hydronic radiant heating/cooling system. It is used for wireless control of the wiring center which works with boiler, pump and actuators for different zones.

Area of Application

The Unisenza Plus UFH Thermostat RF is a Room Thermostats battery powered with Zigbee 3.0 ideally for an underfloor hydronic radiant heating/cooling system. It is used for wireless control of the wiring center which works with boiler, pump and actuators for different zones.

Specifications

Temperature Scale °C or °F
Temperature Display Range 5 °C - 45 °C
Temperature Display Resolution 0.1 °C or 0.5 °C
Temperature Setting Range 5 °C - 40 °C
Temperature Setting Resolution 0.5 °C
Temperature Measurement Accuracy +/-0.5 °C
Humidity Display Resolution 1% RH
Humidity Measurement Accuracy +/-5% @20%-80%RH, +/-8% @other range
Firmware update Over the air firmware update capability
Wireless Communication ZigBee 3.0, 2.4GHz
Power Supply Rechargeable Li-polymer battery 1500mAh
Battery Charging
Micro USB port (Type B) 5V +/-0.5V
Charging current < 200mA
Time to fully charge battery > 17hrs
Operating Environment Indoor, residential & commercial
Operating Temperature 0 °C – 55 °C
Storage Temperature -20 °C – 60 °C
Operating/Storage Humidity 5-95% RH, non-condensing
Dimensions 86(W) x 86(D) x 11(H) mm (with backplate)
Ingress Protection Rating IP30
Regulation CE, UKCA, RED
Environmental Requirement RoHS compliance
