Rinsable Fine Filter FF06-1AAM

Description

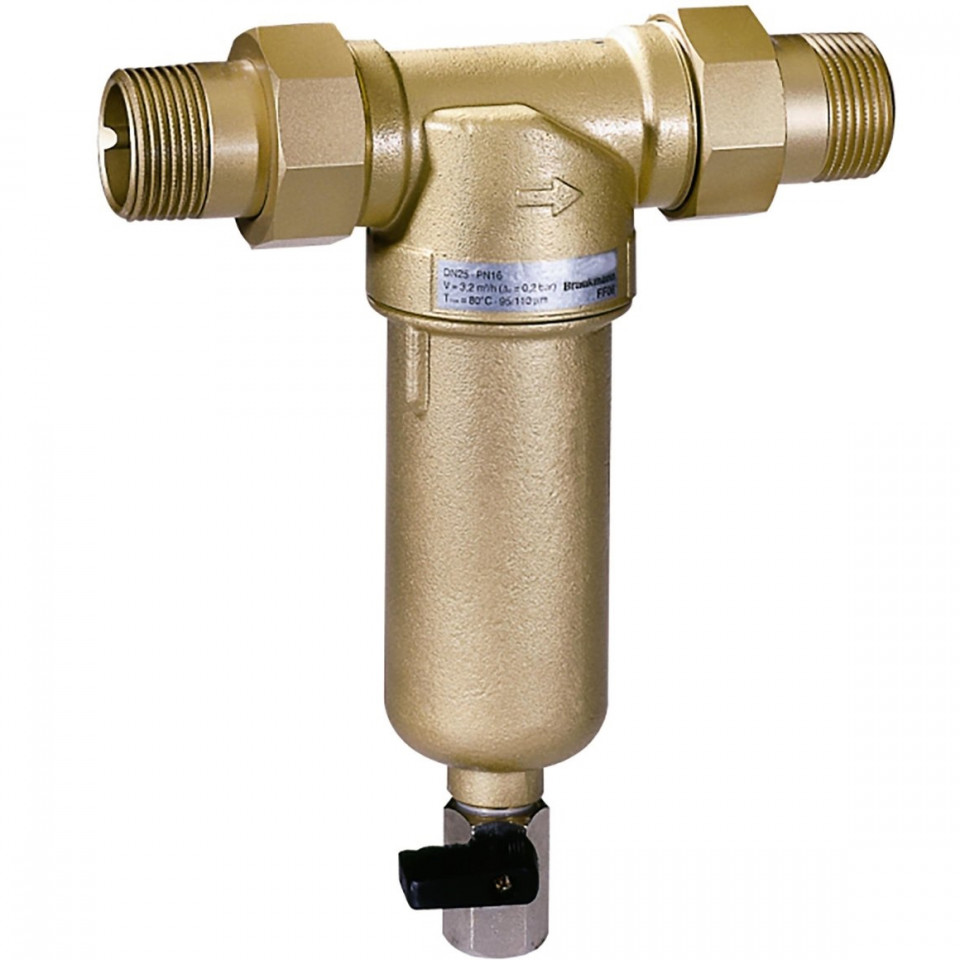

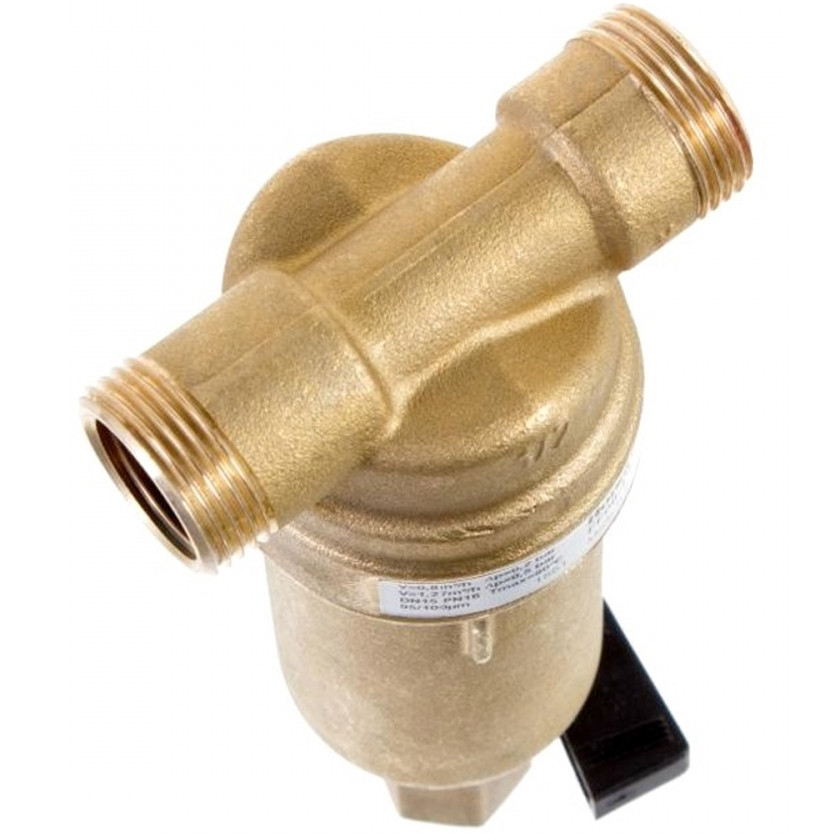

Rinsable fine filter with brass filter bowl resideo Braukmann FF06-1AAM

APPLICATION

Rinsable MiniPlus FF06-AAM fine filters ensure a continous supply of filtered water.
The fine filter stops the flow of particulates, for example rust particles, strands of hemp, or grains of sand. Sediment collected at the bottom of the filter bowl can simply be removed by rinsing the filter.
Compact in size, these filters were designed to fit where space is limited.

SPECIAL FEATURES
• Simple assembly
• Filtered water supply even during rinsing
• Filter bowl of brass - suitable for hot water installations
• Filter and complete filter bowl are replaceable
• Body with female and male threads.

TECHNICAL DATA

Medium: Drinking water
Connections/Sizes
Connection sizes: 1"
Pressure values
Max. operating pressure: 25 bar
Operating temperatures
Max. operating temperature medium: 70°C
Specifications
Installation position: Horizontal with filter bowl- downwards.

Note: The filter is constructed for drinking water installations. In case of a process water application the filter has to be proven individually.
