Sanicondens Best Flat Pump

Description

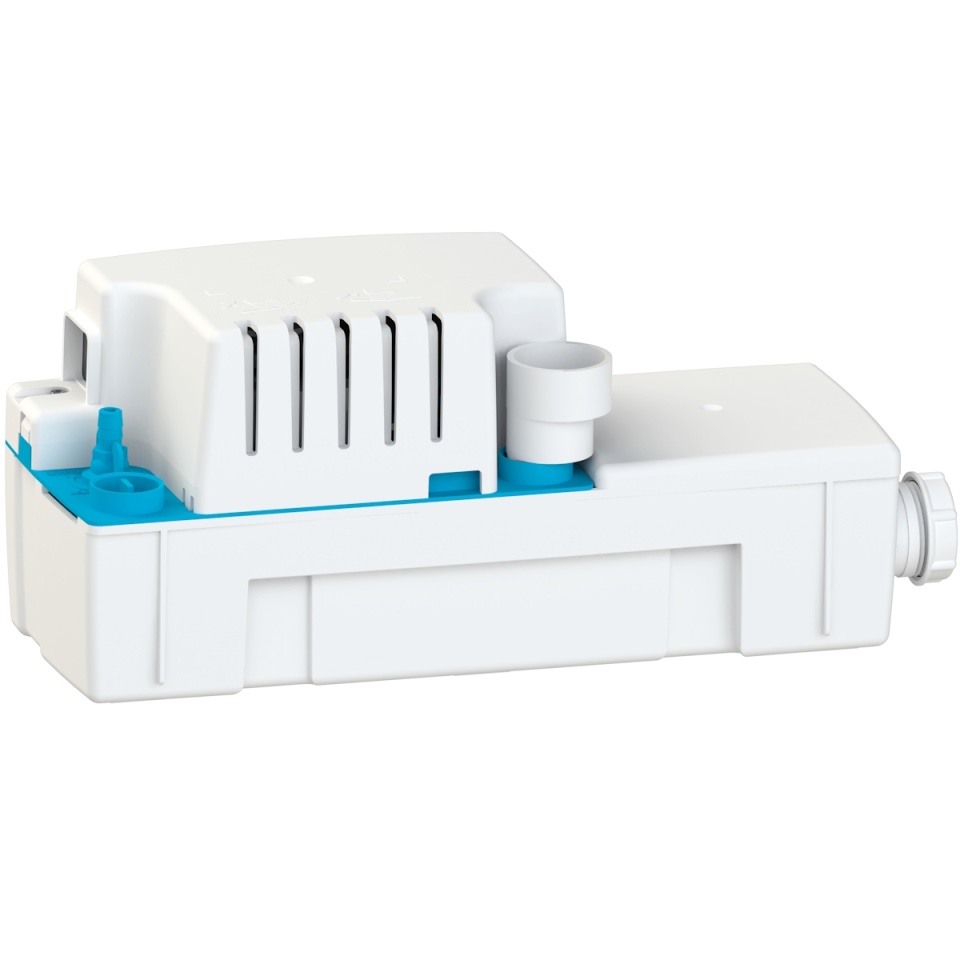

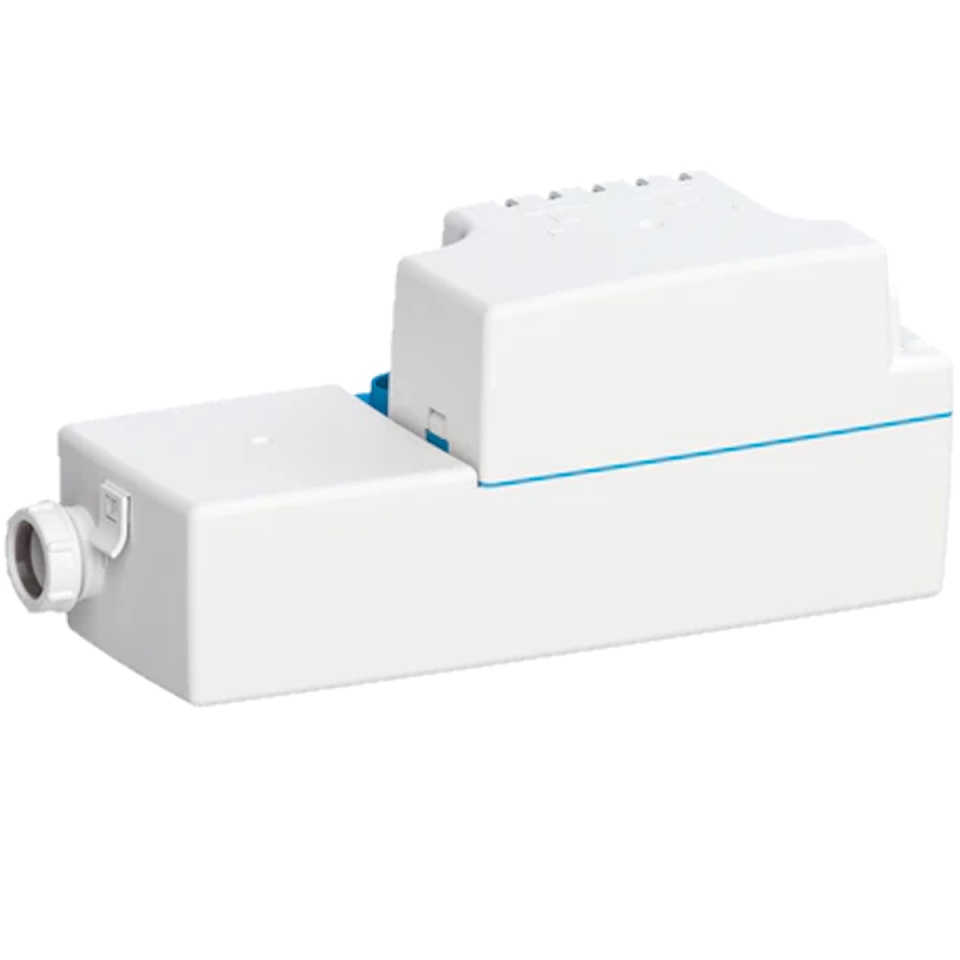

SFA Sanicondens Best Flat Pump

The Sanicondens Best Flat is specifically designed for disposal of acidic concentrate from boilers and other water producing equipment such as dehumidifiers.

It is a compact, and complete unit which has low entry for floor standing boilers and is a very quiet unit (less than 45dB(A)). It has two inlets and a 3.5 litre tank. It discharges through 32 mm pipework and has a maximum working temperature of 80°C. It comes as a complete kit including the unit, non-return valve, integrated neutralisation system, alarm, wall mounting, fixing screw, 1 inlet adapter and 1 outlet adapter (50 mm) 1 drain hose, 1 power cable of 1.5 m and alarm cable.

Designed, made and tested in our factory in France and with 60 years of expertise and innovation, the Sanicondens Best Flat offers you peace of mind and with the back-up from our service team and 2-year warranty there’s never been a better time to install a SFA.

Specifications

Electrical voltage 230 V, frequency 50 Hz
Maximum power consumption 60 W
Maximum current intensity 0.52 A

IP protection degree IP24
Electrical class I
Sound level < 45 dB(A)
Discharge diameter (int.) 10 mm
Maximum thermal power Boiler 50 kW (diesel), 80 kW (gas)
Number of inlet connections: 2
Inlet diameter DN 28/32/40 mm

Tank volume 3.5 liters
Maximum water temperature 80°C
Recommended height 4.5 m
Discharge length 50 m
Weight 4.7 kg.
