Name: Sewage Pump TMW 32/8
Brand: Wilo
SKU: 4048413

Description

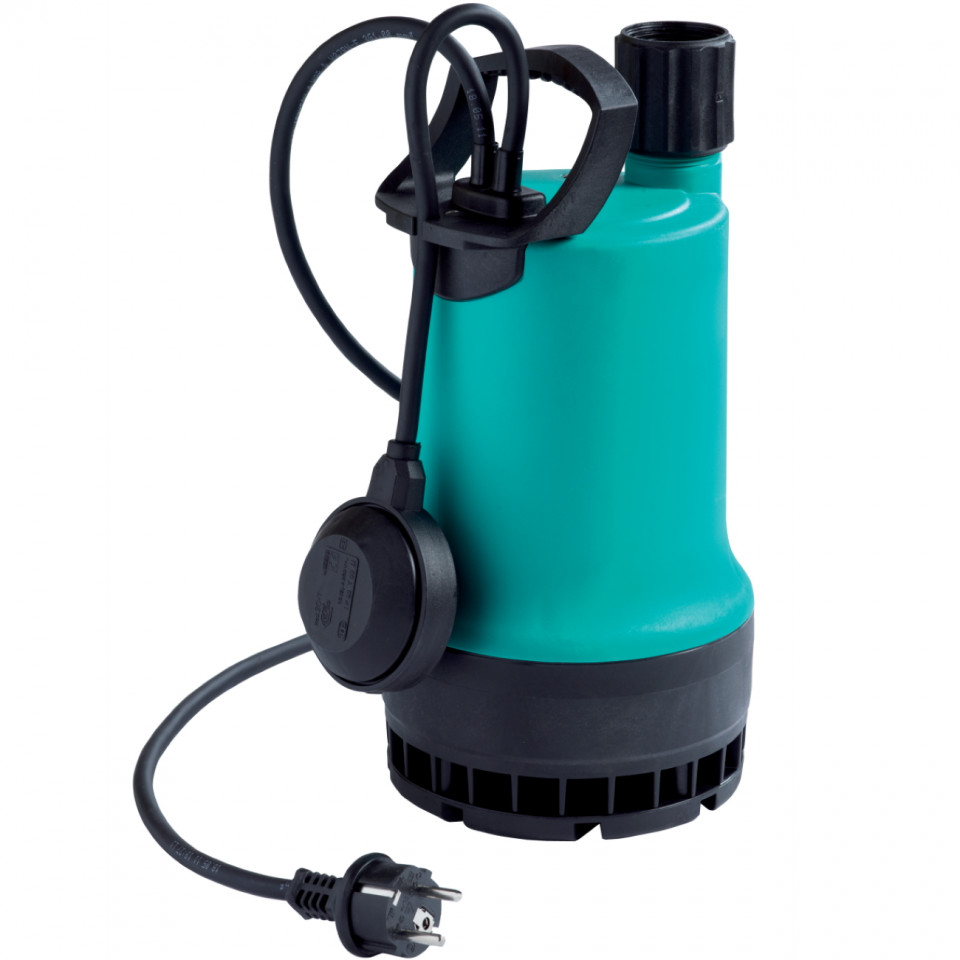

Sewage Pump Wilo TMW 32/8

Submersible pump for stationary and portable wet well installation. Pump with fitted float switch for fully automatic operation.

For the pumping in domestic areas of:

Sewage not containing faeces
Wastewater (with small amounts of sand and gravel)

Sewage pump with integrated turbulator (twister function), open multi-channel impeller and vertical threaded connection.

Pump housing, strainer and impeller made of composite material. 1~ motor (jacket cooling) with integrated operating capacitor and self-switching thermal motor monitoring. Stainless steel motor housing. Oil-filled sealing chamber with double sealing: a rotary shaft seal is installed on the motor side, a mechanical seal on the pump side. Connection cable with float switch and fitted plug (CEE 7/7).

Operating Data

Fluid media: Water 100 %
Fluid temperature: 20.00 °C
Requested flow:
Requested head:

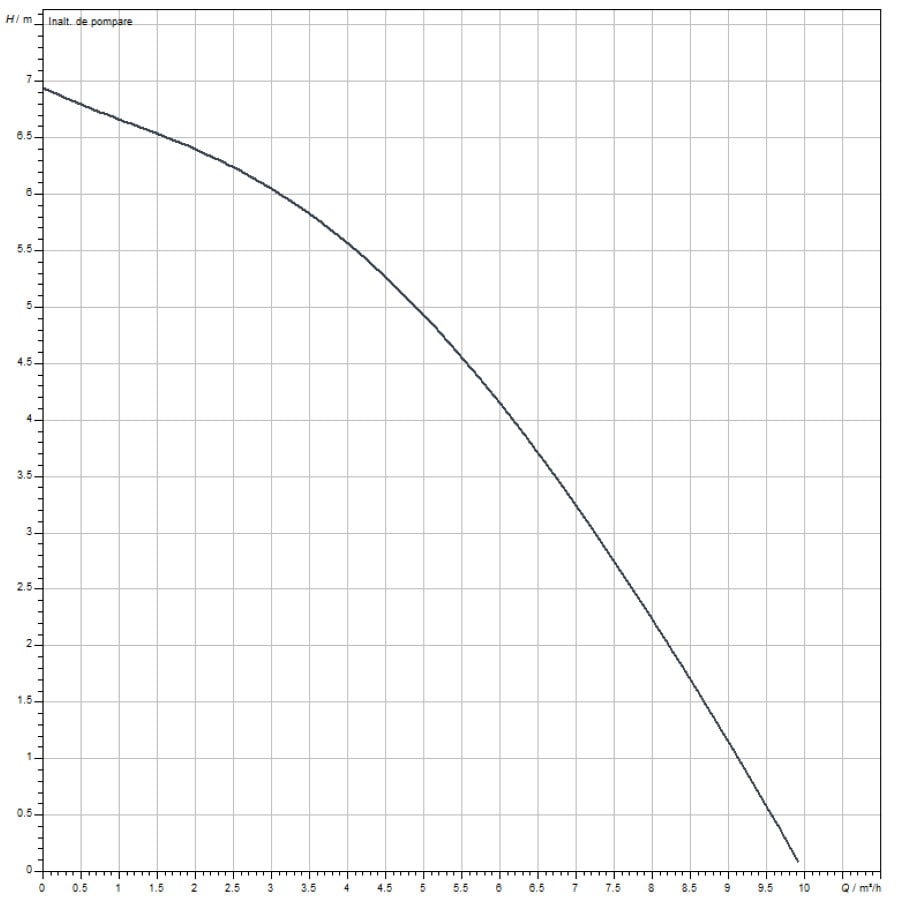

Max. delivery head: 6.94 m

Product data

Impeller type: Open multi-channel impeller
Free ball passage of the hydraulics: 10 mm
Maximum operating pressure: 2 bar
Max. immersion depth: 1 m
Fluid temperature: 3...35 °C
Max. fluid temperature, for short periods up to 3 min.: 90 °C

Motor data

Mains connection: 1~230V/50 Hz
Voltage tolerance: +-10 %
Power factor: 0.98
Rated power: 0.37 kW
Power consumption: 0.45 kW
Rated current: 2.1 A
Activation type: Direct online (DOL)
Rated speed: 2900 1/min
Max. switching frequency: 50 1/h
Insulation class: F
Protection class: IP68
Operating mode (immersed): S1
Operating mode (non-immersed): S3-25%

Cable

Connection cable length: 4 m
Cable type: H07RN-F
Cable cross-section: 3G1
Mains plug: CEE7/7 (Schuko)
Type of connection cable: Non-detachable

Equipment/function

Float switch: yes
Explosion protection type: -
Motor protection: Bimetall

Materials

Pump housing: PP-GF30
Impeller: PPE/PS-GF20
Shaft: 1.4104
Sealing on pump side: BQ1PFF
Sealing on motor side: NBR
Gasket material: NBR
Motor housing: 1.4301
