Name: Smartphone Thermal Camera Module for Android UTi720M
Brand: Uni-T
SKU: MIE0487
Price: 1550.86 RON
Availability: InStock

Description

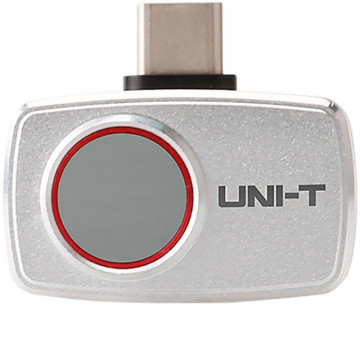

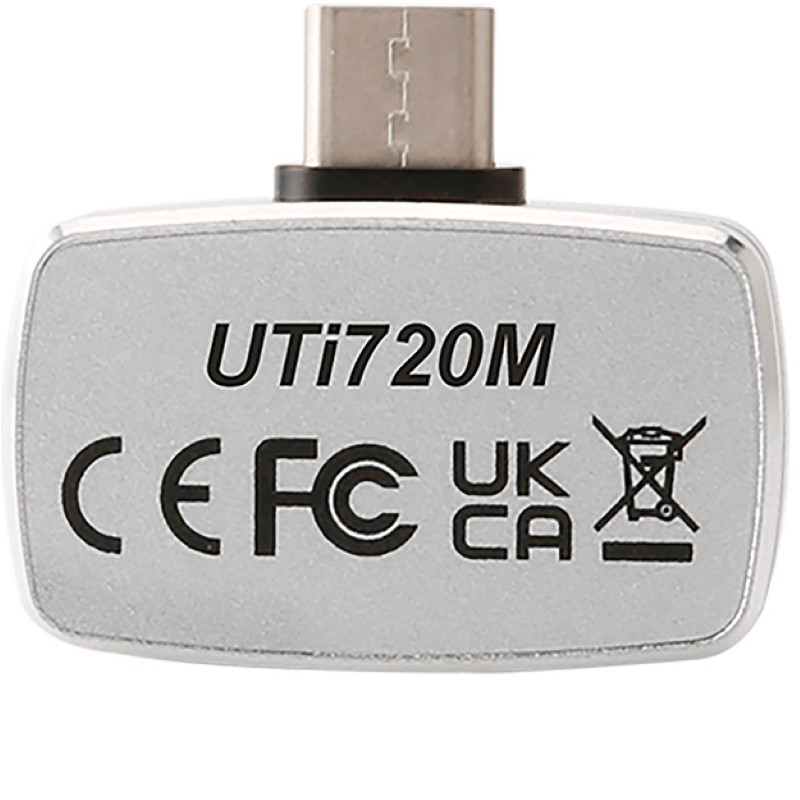

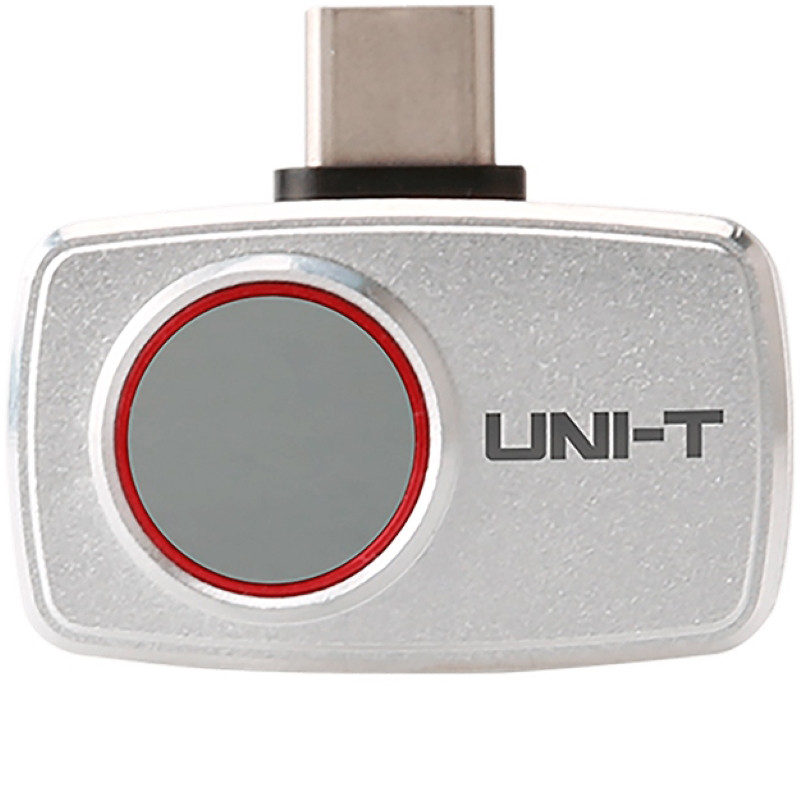

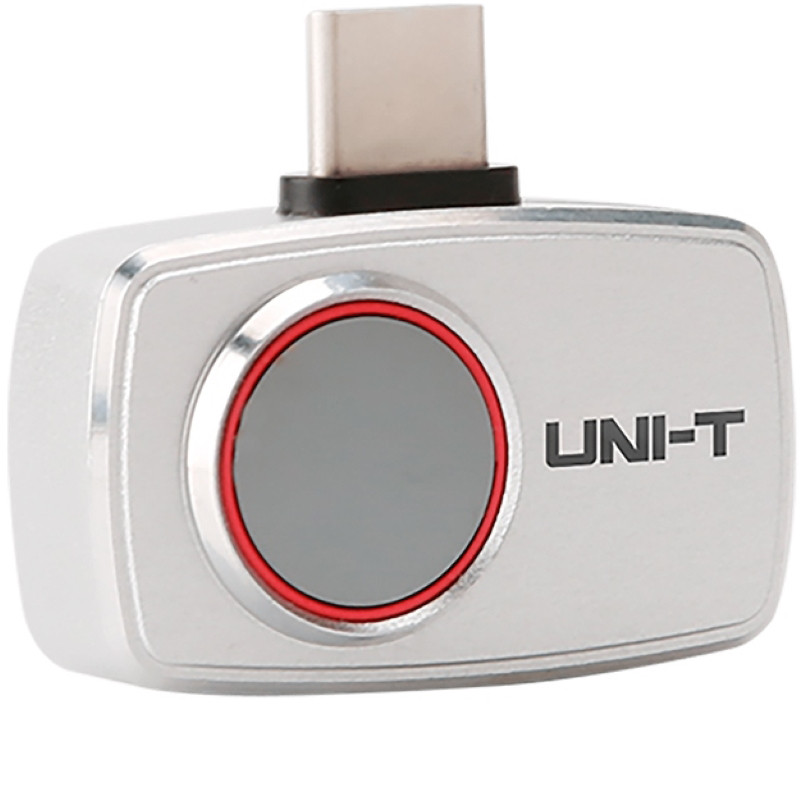

Smartphone Thermal Camera Module for Android Uni-T UTi720M

UTi720M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response.

UTi720M has wide temperature measurement range -20℃ ~ 200℃.

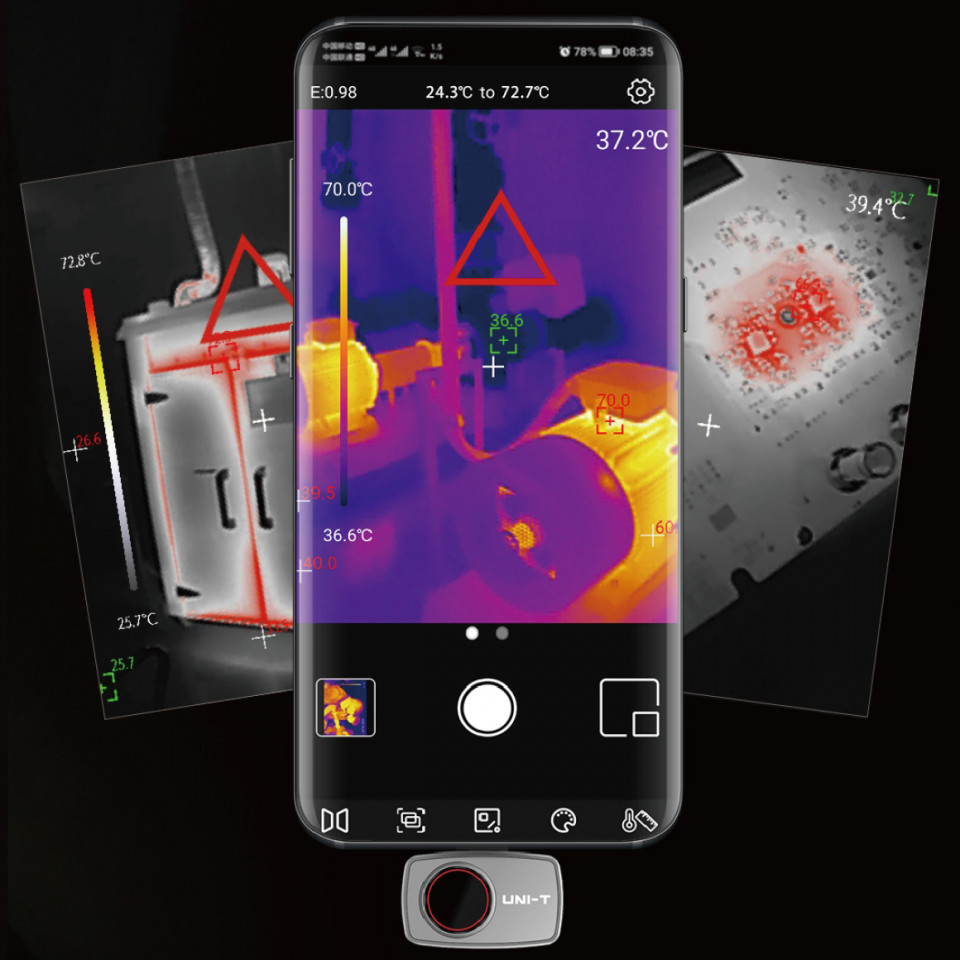

Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders etc.

Features :

IR resolution: 256×192
Temperature measurement range: -20℃ to 200℃ / -4℉ to 392 ℉
Auto alarm for high/low temperature
Auto tracking for hot spot/cold spot
On screen analyzer: 3 Points/3 Lines /3 Rectangles
Image capture
Video recording
Color palettes: 7(White hot, Black hot, Red hot Ironbow, Lava, Rainbow, Rainbow HC)
Phone: Android (USB Type-C interface)
1 m extension cable
1 m drop proof.

Technical Data

IR resolution (Pixels) 256×192
Field of view(FOV) 56.0°×42.2°
Thermal sensitivity(NETD) ≤50mK @25℃
Spatial resolution(IFOV) 3.8mrad
Frame rate ≤25Hz
Spectral range 8~14 µm
Focus Focus free
Lens focal length 3.2 mm
Temperature measurement range -20℃ ~ 200℃
Accuracy ±2° or ±2% whichever is greater
Emissivity 0.01~1.00 adjustable (0.95 default)
Functions
Color palettes 7
(White hot, Lava, Ironbow,Black hot, Red hot, Rainbow, Rainbow HC)
Image modes Thermal,Fusion,PIP
On screen analyzer 3 Points/3 Lines/3 Rectangles
Hi/Lo temperature alarm √
Video recording √
