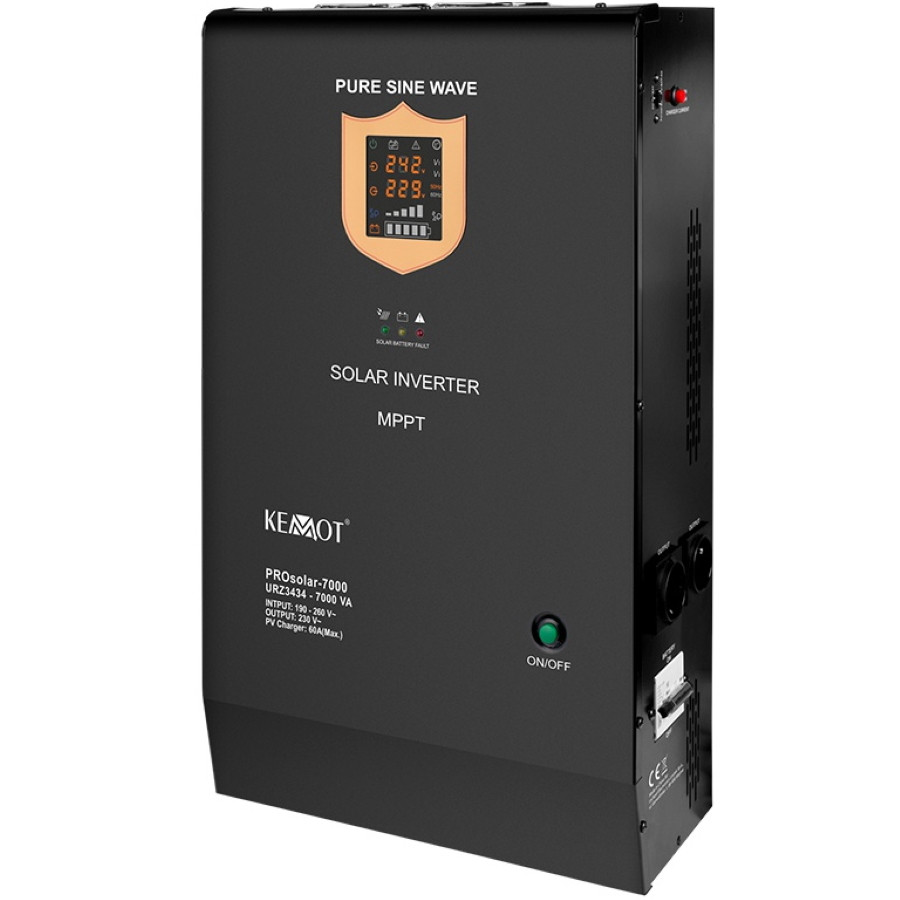

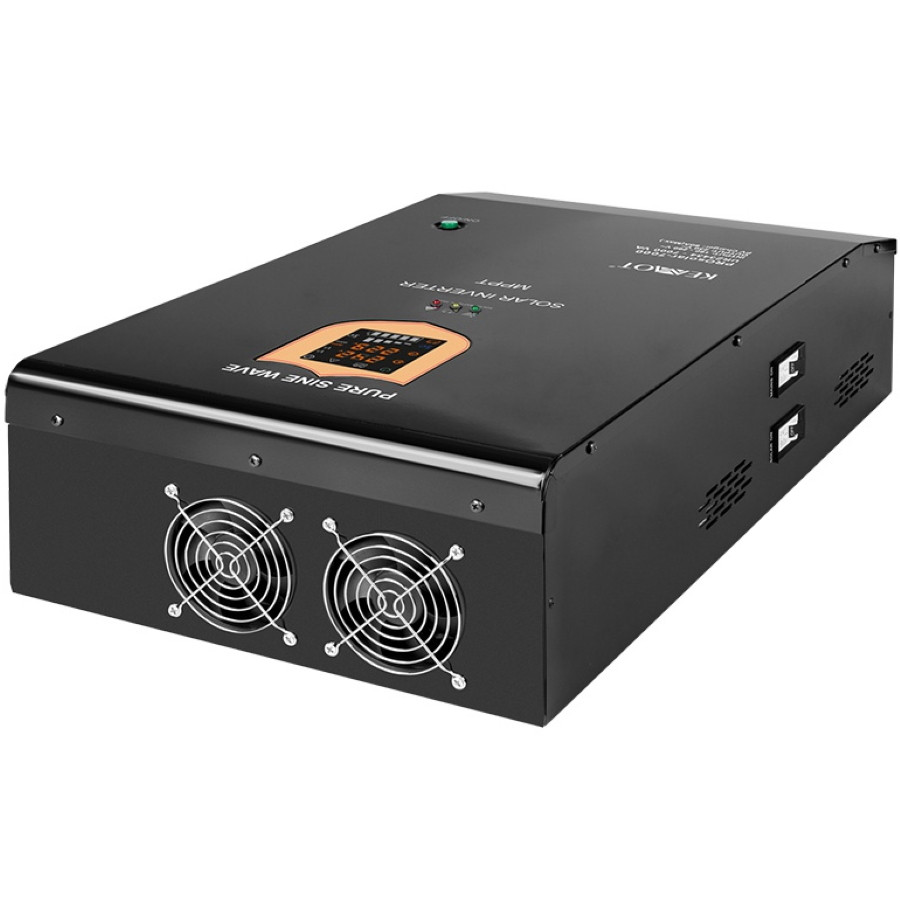

Solar Inverter URZ3434 Prosolar 5000W 7000VA 48V

Description

Solar Inverter Kemot URZ3434 Prosolar 5000 W 7000 VA 48 V

Pure sine wave
Wide range of compatibility (can be connected to different devices).
Toroidal transformer C.R.G.O
Dual intelligent CPU control
High performance
MPPT solar charge controller
2 working modes: AC / PV priority
Protection against overload, short circuit, protection against overvoltage and undervoltage, overheating.

Technical Data

PV mode:
Input voltage range: 60V DC - 100V DC
Charging current: 60 A (depending on the photovoltaic cell used)
Conversion efficiency: 98%

AC mode:
Input voltage range: 190 - 260 V AC
Input frequency range: 45-65 Hz
Output voltage range: 218V AC ~ 241V AC
Efficiency: mains mode >= 96%
Charging current: 10 A.

Inverter output:
Inverter output voltage: 223 - 237 V
Output frequency: 50 Hz / 60 Hz ± 0.3 Hz
Output power factor: > = 0.8
Waveform Distortion: Resistive Load = <3%
Switching time from PV mode to AC mode: standard 4 ms; max. 6 ms
Inverter module efficiency: > = 80%
Inverter overload: 110%-130% shutdown after 30s, 130%-150% shutdown after 3s
Short circuit: Automatic shutdown

Ambient temperature 0~40°C
Air humidity 10% ~ 90%
Noise level = <50 dB
