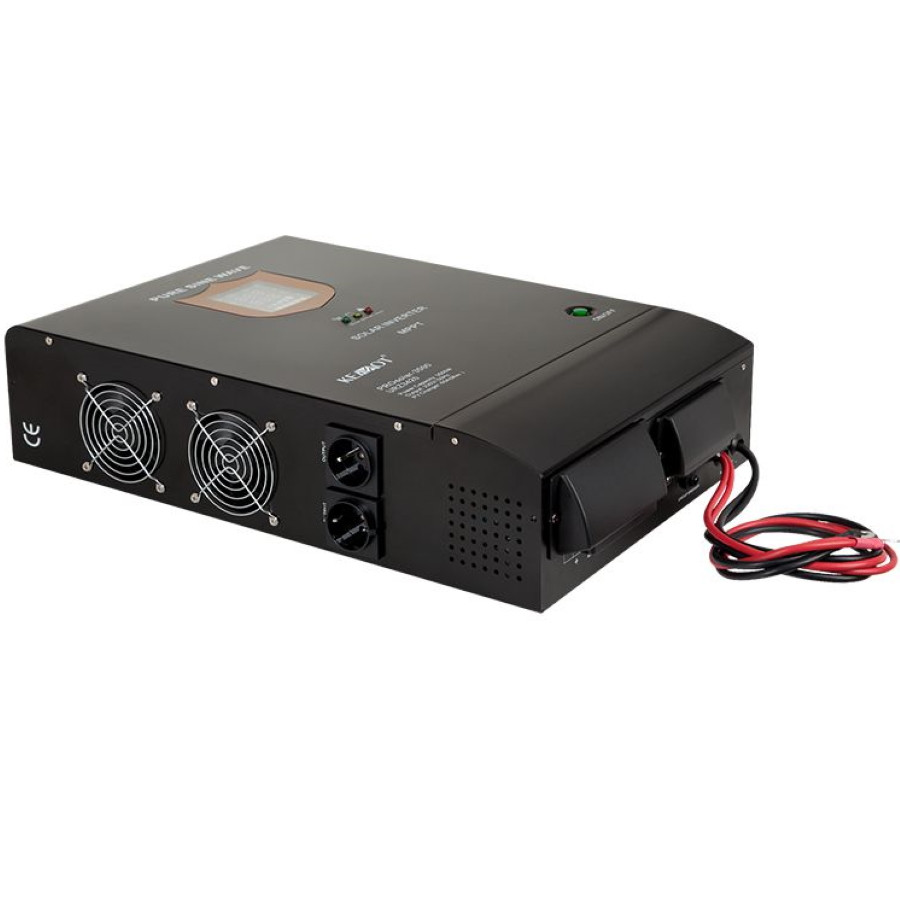

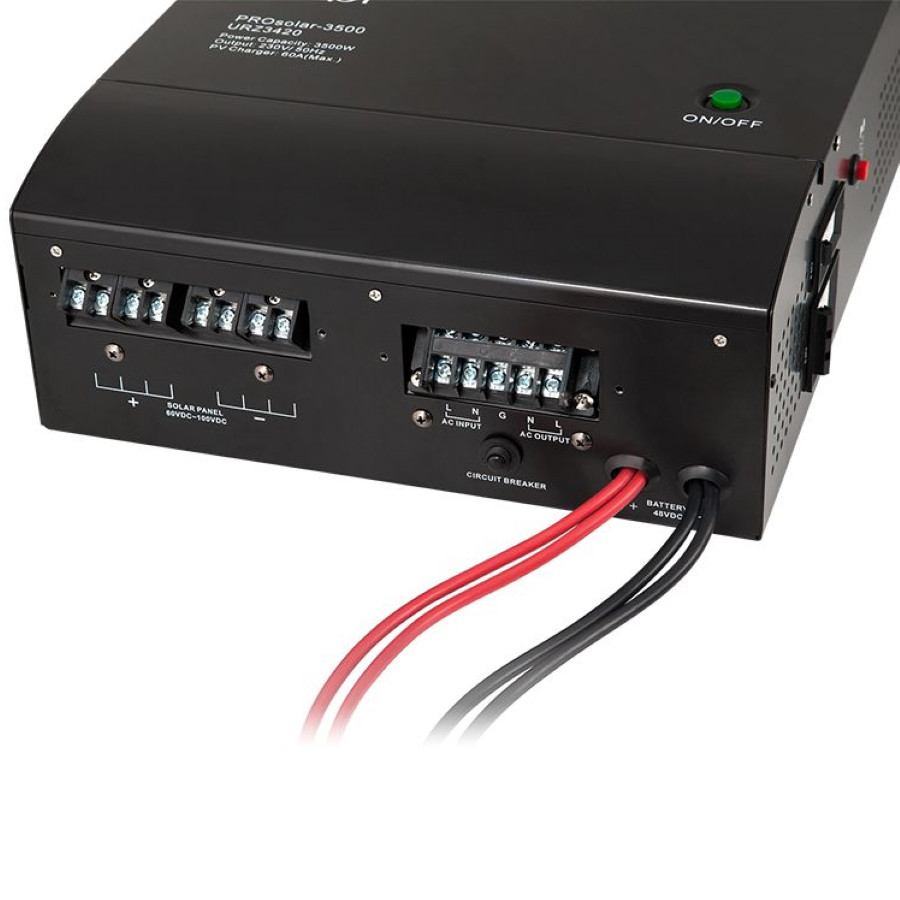

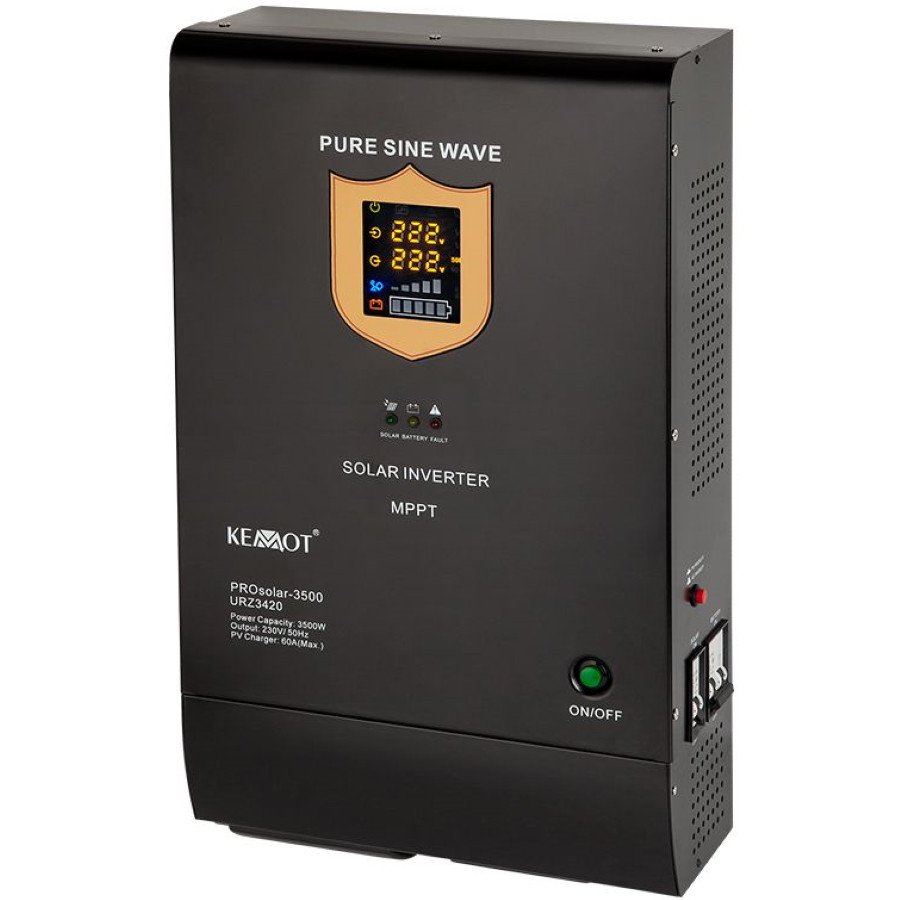

URZ3420 ProSolar-3500 solar Inverter 5000VA

Technical data:

• Power: 3500 W
• Battery voltage: 48 V DC
• Operating mode: PV (PV / PV priority) / AC (AC / grid priority)

PV mode:

• Input voltage range: 60V DC - 100V DC
• Max . charging current: 60 A (depending on the photovoltaic cell used)
• Max. conversion efficiency: 98%

AC mode:

• Input voltage range: 200V AC ~ 275V AC </ li >
• Input frequency range: 45-65 Hz
• Output voltage range: 206V AC ~ 242V AC
• Input power factor (AC / DC): 98% </ li>
• Efficiency: mains power mode & gt; = 96%
• Charging current: 10A

Inverter output: </ p>

• Inverter output voltage: 230 V ± 3%
• Output frequency: 50 Hz / 60 Hz ± 0.3 Hz
• Output power factor: & gt; = 0.8
• Waveform distortion: Resistive load = & lt; 3%
• Switching time from PV to AC mode: standard 4 ms; max. 6 ms
• Efficiency: Inverter mode & gt; = 80%
• Inverter overload: 110% -130% shutdown after 30 seconds, 130% -150% shutdown after 3 seconds < / li>
• Short circuit: Automatic shutdown

Other:

• Ambient temperature 0 ~ 40 ° C </ li >
• Air humidity 10% ~ 90%
• Sound level = & lt; 50 dB
