Solid fuel Boiler JAR 35

Description

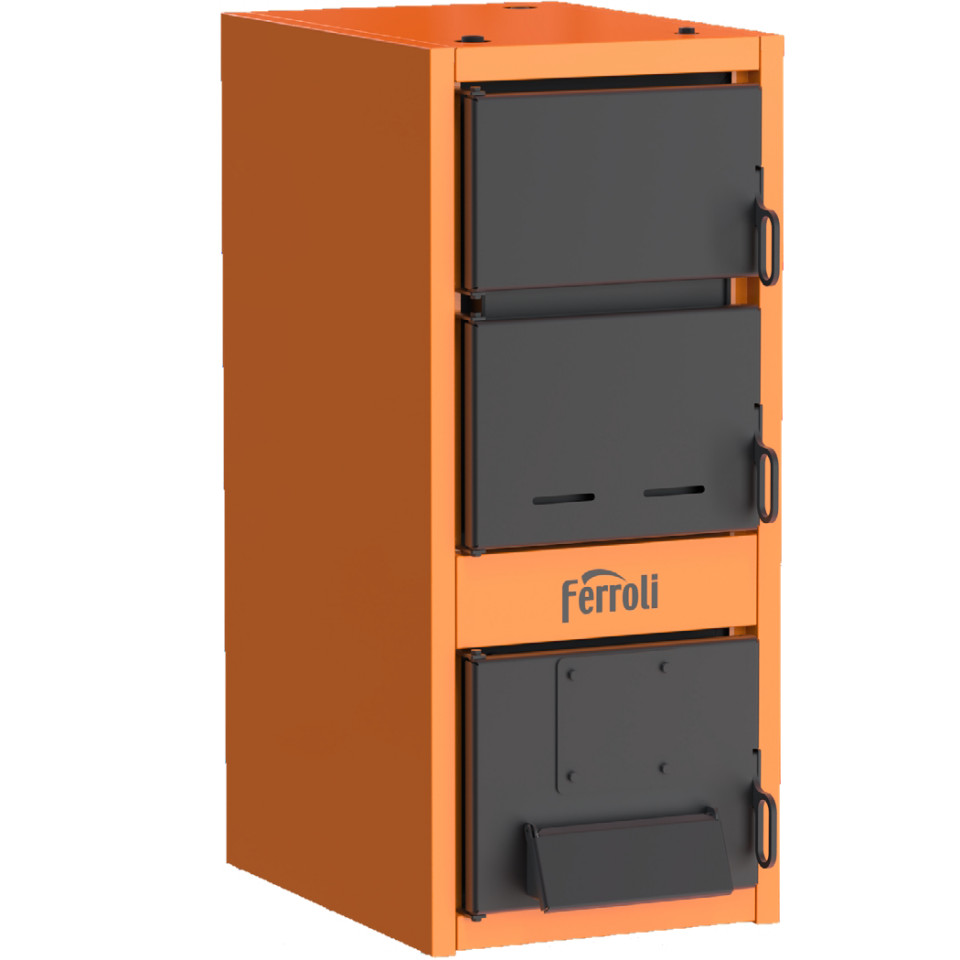

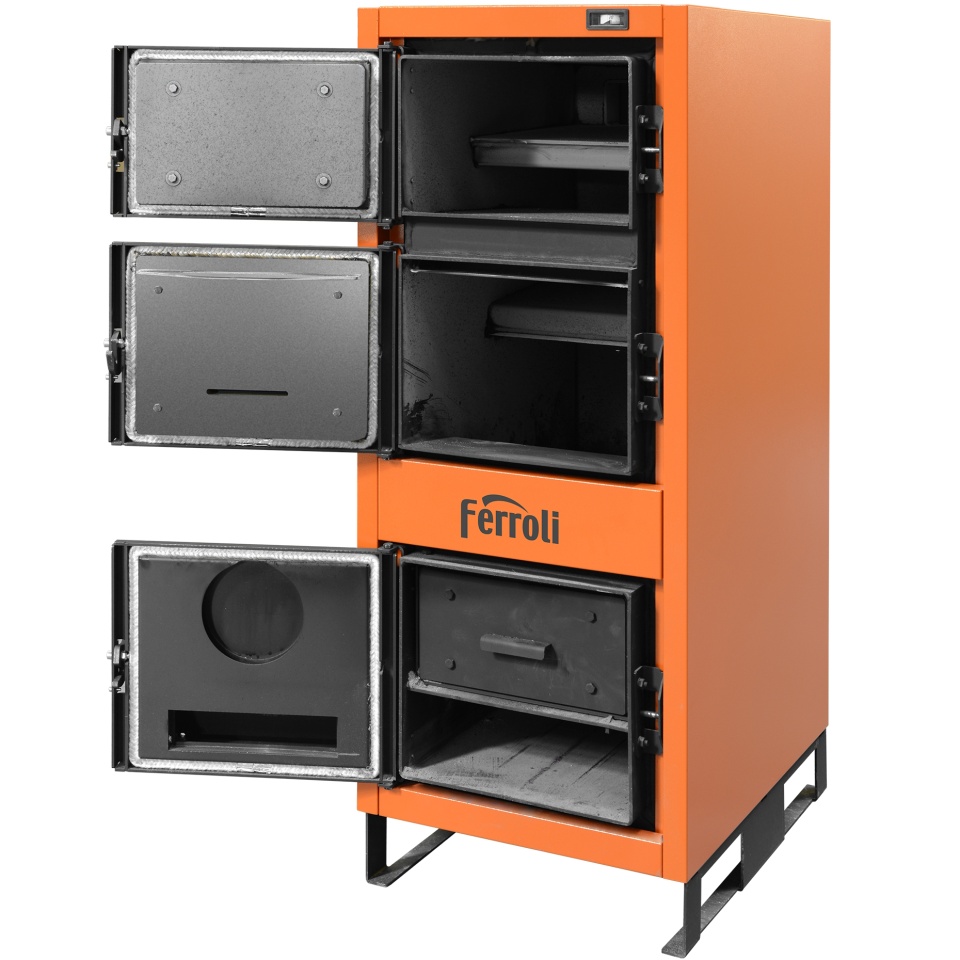

Solid fuel Boiler Ferroli JAR 35 with 3-passes of flue gas

JAR are boilers with 3 smoke paths, which work on solid fuels (non-woody wood chips and any kind of vegetable, agricultural, forestry or forestry residues and waste), intended for heating the living space.

The thickness of the walls of the boiler that comes into contact with the fire is 5 mm.

Technical data

Nominal power 35 kW
Weight 301 kg
Required draft 22 mbar
Max working temperature 90ºC
Max working pressure 2.5 bar
Boiler water content 104 liters
Height (mm) 1294 mm, Width 560 mm, Depth 969 mm
Exhaust gas connection 149 mm
Distance boiler base - chimney connection 1140 mm
Heating flow/return connection G 1-1/4"
Combustion chamber volume 97 dm³
Max wood length 500 mm
Basket internal diameter 200 mm
Basket height 8-9 m
Surface to be heated 180-210 sq m.

For the operation of the boiler in optimal parameters, the correct dimensioning of the exhaust pipe is necessary. This
it must be designed to ensure proper evacuation of the flue gases and to keep the necessary air in the boiler.

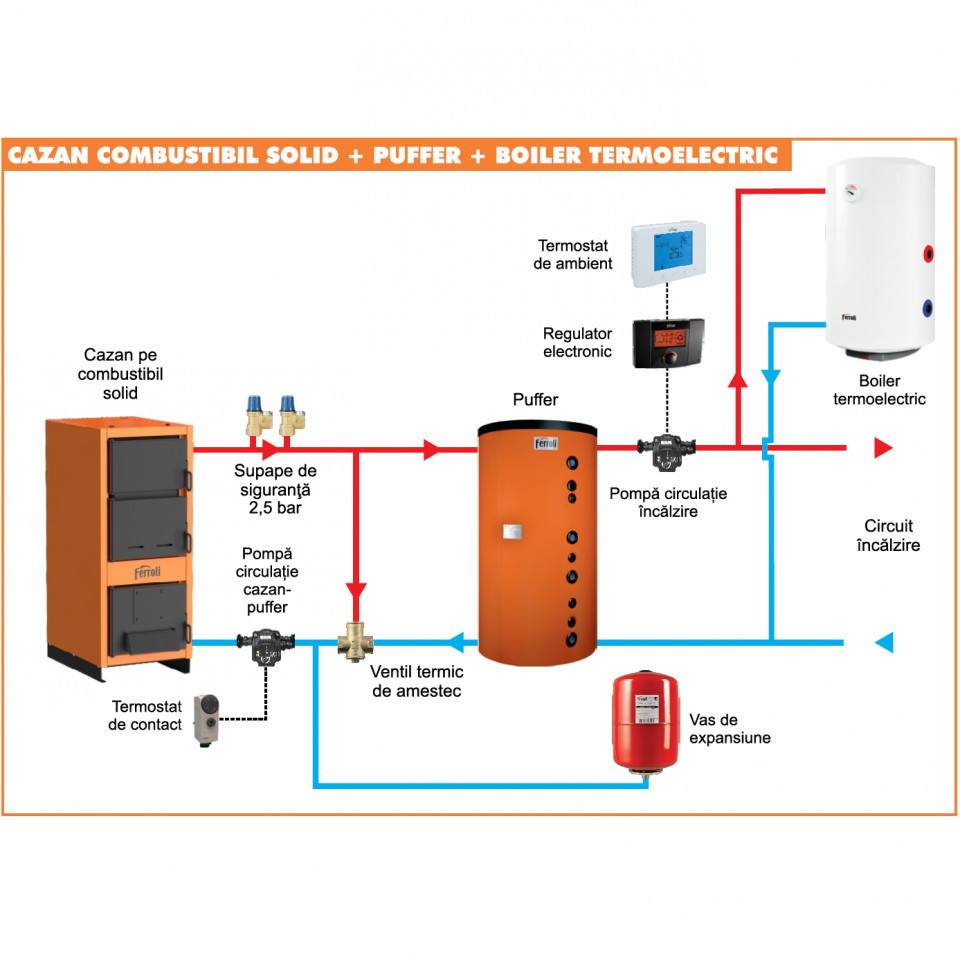

Heat agent temperature without storage system. Regardless of the type of fuel used for heating, the water temperature must not exceed 100°C. In order to prevent the temperature from rising, it is recommended to install some safety and control accessories.

Draft regulator 13878
DBV1 Dump valve 16912
