Solid fuel Boiler JAR 50

Description

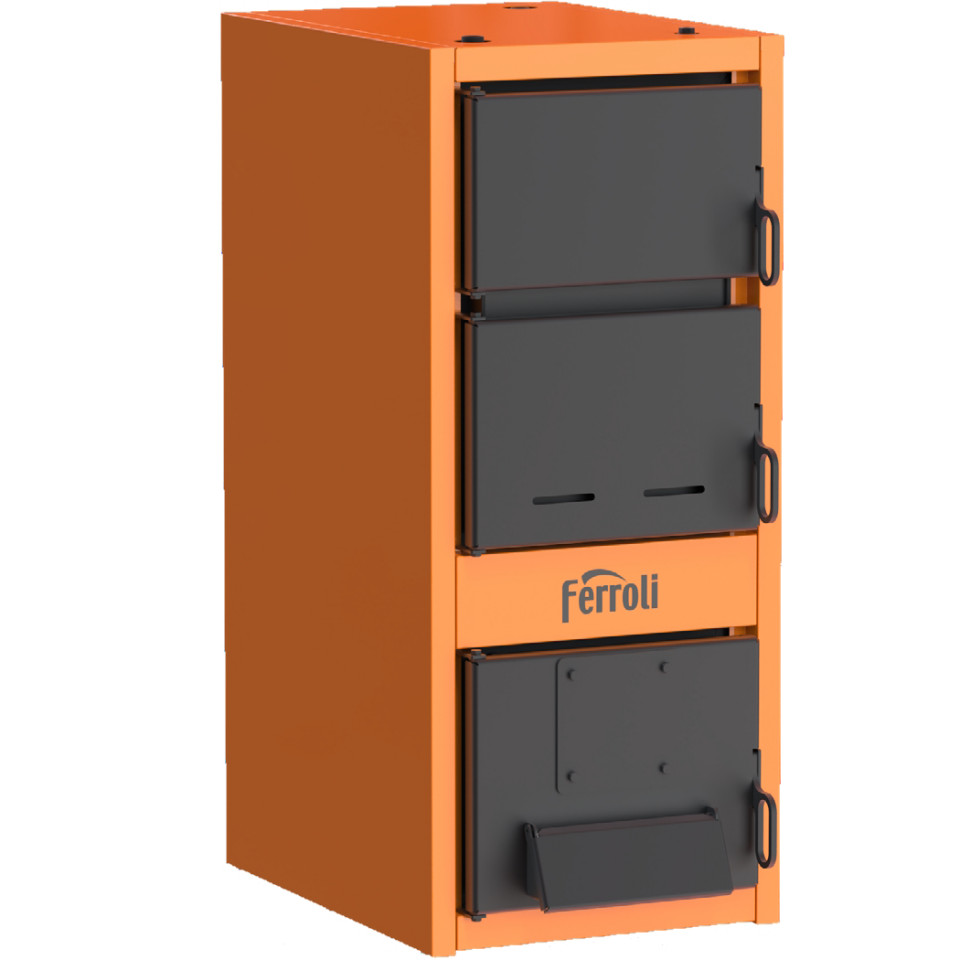

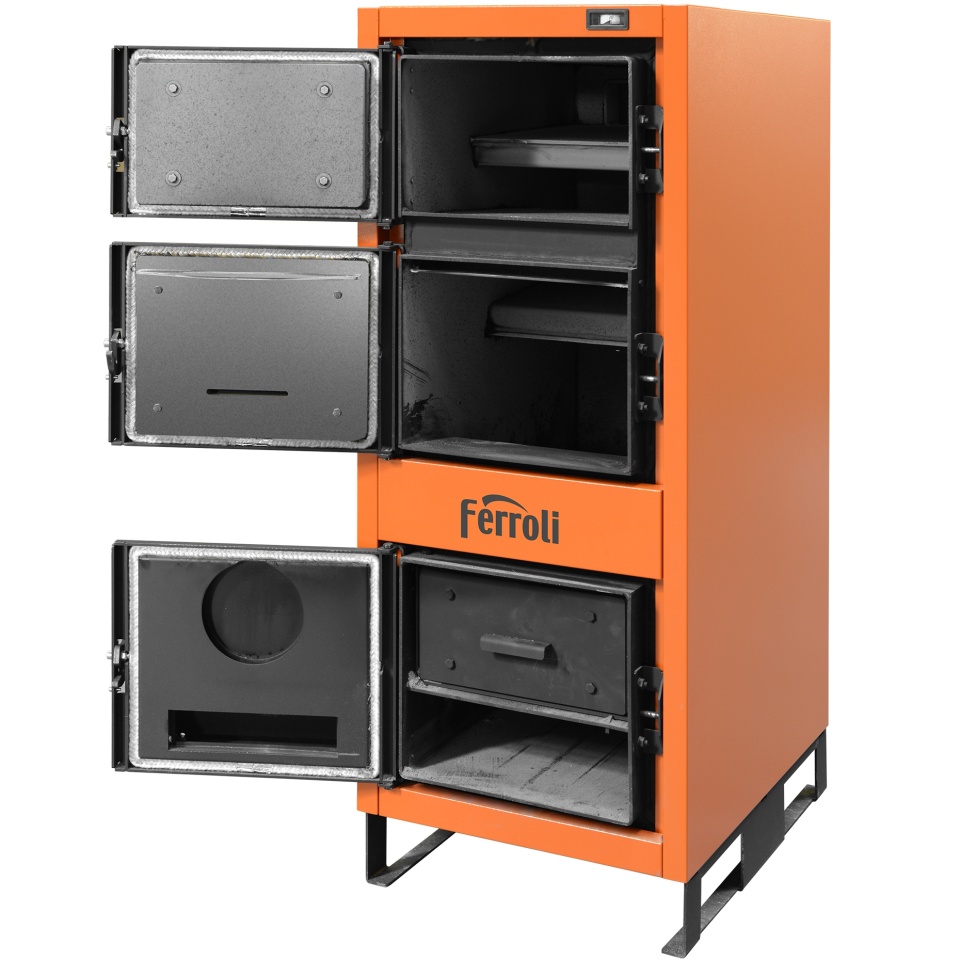

Solid fuel Boiler Ferroli JAR 50 with 3-passes of flue gas

JAR are boilers with 3 smoke paths, which work on solid fuels (non-woody wood chips and any kind of vegetable, agricultural, forestry or forestry residues and waste), intended for heating the living space.

The thickness of the walls of the boiler that comes into contact with the fire is 5 mm.

Technical data

Nominal power 50 kW
Weight 350 kg
Required draft 25 mbar
Max working temperature 90ºC
Max working pressure 2.5 bar
Boiler water content 120 liters
Height (mm) 1294 mm, Width 610 mm, Depth 1044 mm
Exhaust gas connection 179 mm
Distance boiler base - chimney connection 1115 mm
Heating flow/return connection G 1-1/4"
Combustion chamber volume 124 dm³
Max wood length 550 mm
Basket internal diameter 200 mm
Basket height 10-12 m
Surface to be heated 240-300 sq m.

For the operation of the boiler in optimal parameters, the correct dimensioning of the exhaust pipe is necessary. This
it must be designed to ensure proper evacuation of the flue gases and to keep the necessary air in the boiler.

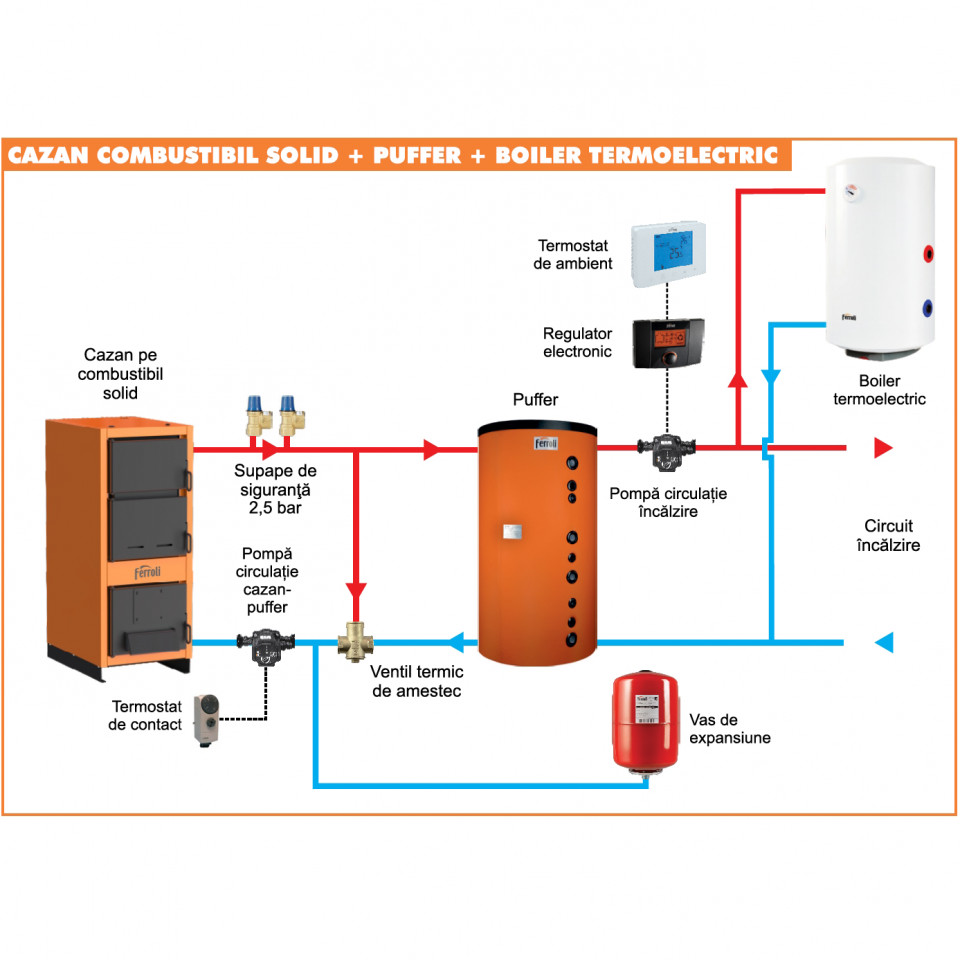

Heat agent temperature without storage system. Regardless of the type of fuel used for heating, the water temperature must not exceed 100°C. In order to prevent the temperature from rising, it is recommended to install some safety and control accessories.

Draft regulator 13878
DBV1 Dump valve 16912
