Thermostat RDD100.1

Description

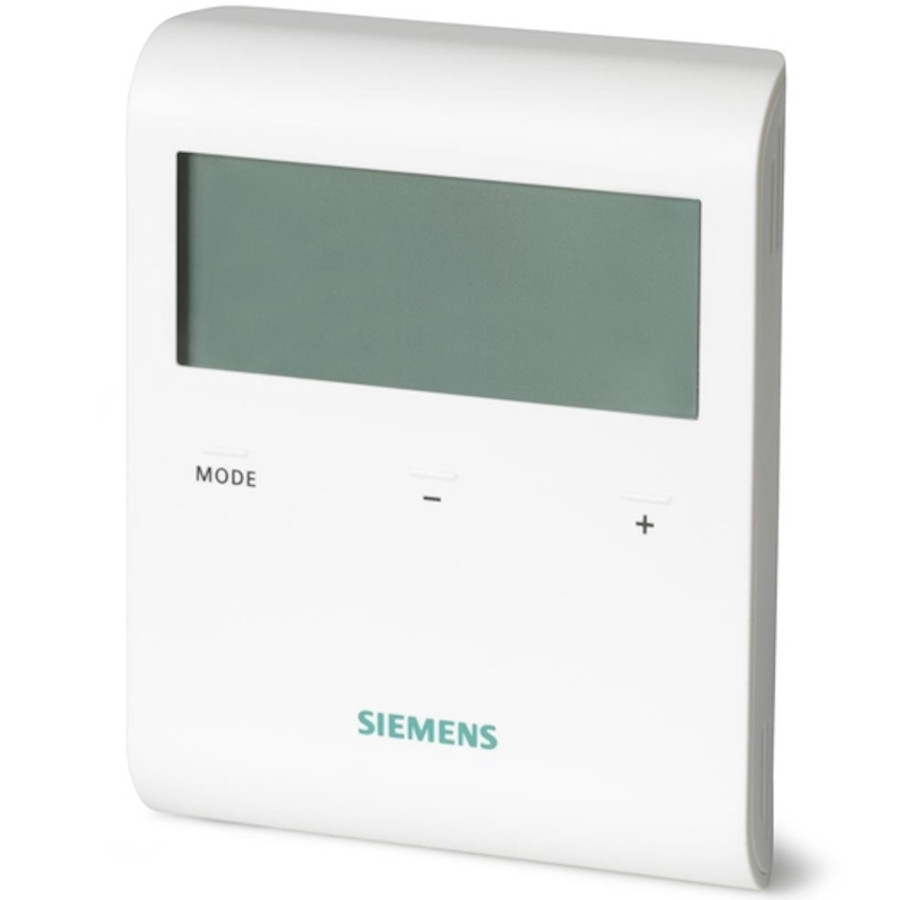

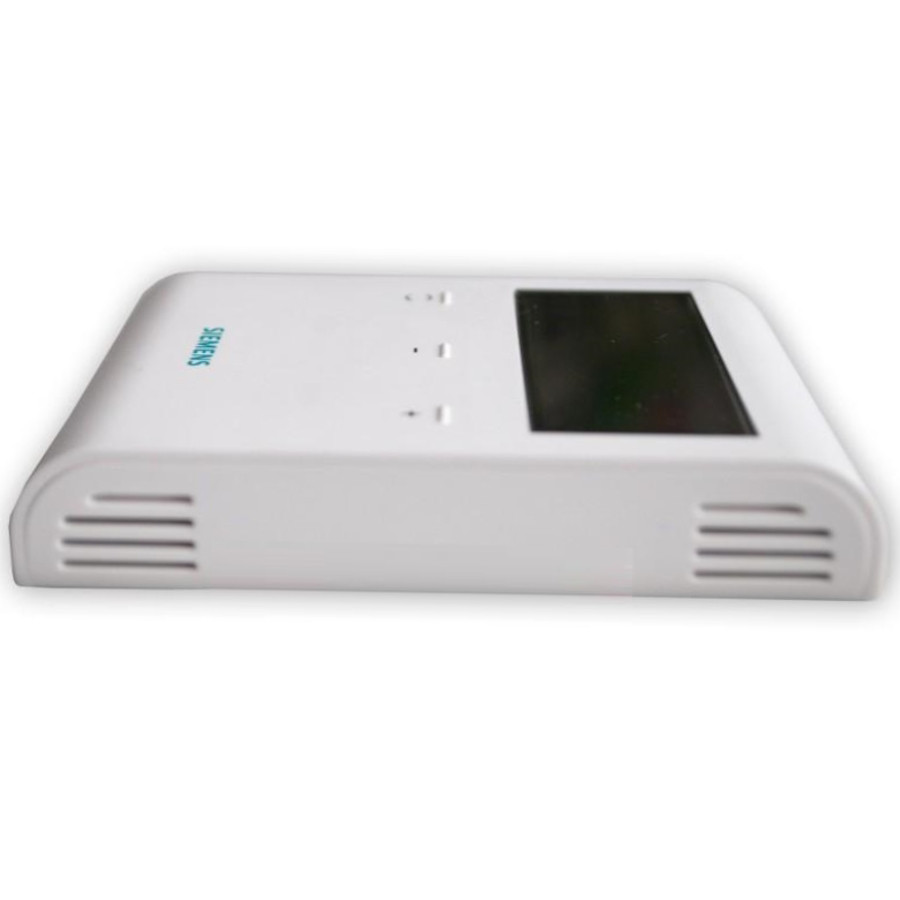

Siemens RDD100.1 digital room thermostat,

usable in heating-only systems to maintain room temperature.

2-position control, with ON / OFF output for heating
Working modes: 3 comfort / economical / frost protection

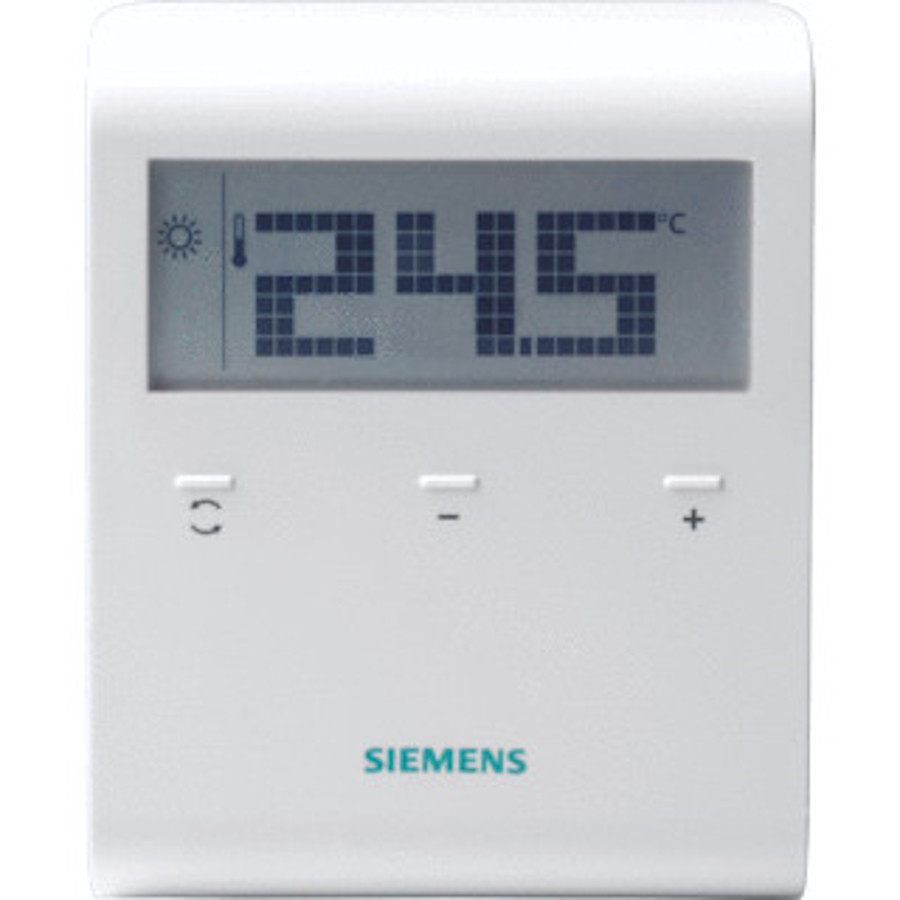

Digital display - indicates temperature in oC or oF
Color: white RAL9003
The thermostat measures the room temperature with its integrated sensor and maintains the temperature at the reference level by transmitting appropriate commands. Switching hysteresis is 1 K.

The RDD100.1 thermostat has a normal operating mode and, optionally, an economical or OFF mode. The difference between normal and economy mode is only the room temperature reference. Switching from normal mode to economy mode and vice versa is done by pressing a button.

Electrical voltage: 3V dc (2 alkaline batteries of 1.5 V AAA) Electric current: max. 5 A
Frequency 50 Hz
Switching range: 5-35oC; 0 (OFF) Increment: 0.5oC Switching hysteresis: <1 K
Dimensions: BxAxH = 85x21.5x106 mm
Weight = 0.134 kg

The room thermostat must be located in a place where the air temperature can be measured as accurately as possible, without the influence of direct solar radiation or other sources of heating or cooling. The mounting height is approx. 1.5 m above the floor.
