Wifi Thermostat Logamatic TC100.2

Description

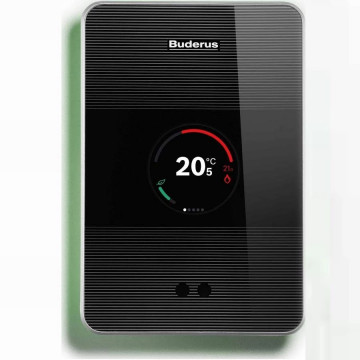

Room thermostat with Wi-Fi connection Buderus Logamatic TC100.2.

The room thermostat is compatible with all Buderus gas condensing wall-mounted boilers that communicate via EMS-BUS (after 2007).

Elegant, attractive design: Product with a revolutionary design; Glass front; Touch display; Solid plastic housing, non-stick; Available in black; Frame similar to metal; Round corners; Proximity sensor; Ambient light.
Custom time programs for individual temperature control of each room
Intuitive, easy-to-use application (wallpapers with the beneficiary's current home and installation guide)
The intuitive MyMode app can be used on your smartphone or tablet.
Integrated compatibility with On / Off and OT applications.
Integration with the current automation system to support Buderus HP / FB modules and other modules (solar,…)
Access to the API source starting with IFTTT
The thermostat connects to the wireless internet
Anticipation of arrival at home for energy saving and start-up of the plant
Advanced self-learning function based on user activity (eg sleeping, relaxing on TV,)
Energy-saving recommendations based on system configurations and end-user behavior
The Logamatic TC100 evolves from an intelligent heating equipment control thermostat to an intelligent HVAC control system.

Software:

Intelligent thermostat with external temperature sensor that communicates with the ends of the electronic radiator thermostats
New application design, more intuitive and easy to use
Improved location algorithm
API for integration into related control systems (IFTTT, Amazon Alexa, etc.)
Constantly updating OTA software.
Processor: ARM Cortex-TM4F @ 60 to 120 MHz. Flash memory 1024 KB Processor flash memory + 64 Mbit external flash memory. SRAM memory: 256 KB
Power: Via EMS bus (EMS 1.0 and 2.0). Power consumption: Max.905 mW. Communication type: EMS 1.0, EMS 2.0. Connectivity protocol: internal WiFi (802.11 b / g / n), internal ZigBee (2.4 Ghz), internal HomeMatic IP (868 MHz)
Zones, Additional devices: 20 zones with individual schedule / 19 devices
Dimensions: H = 145 (5.7) B = 100 (3.9) A = 27 (1.1) mm (inches). Mass = 250 gr.

List of compatible Buderus thermal power plants

Logamatic TC100 v2 remote control instructions.

TC100 Quick Installation Guide.
