Wireless Programmable Thermostat DT500RF
Description

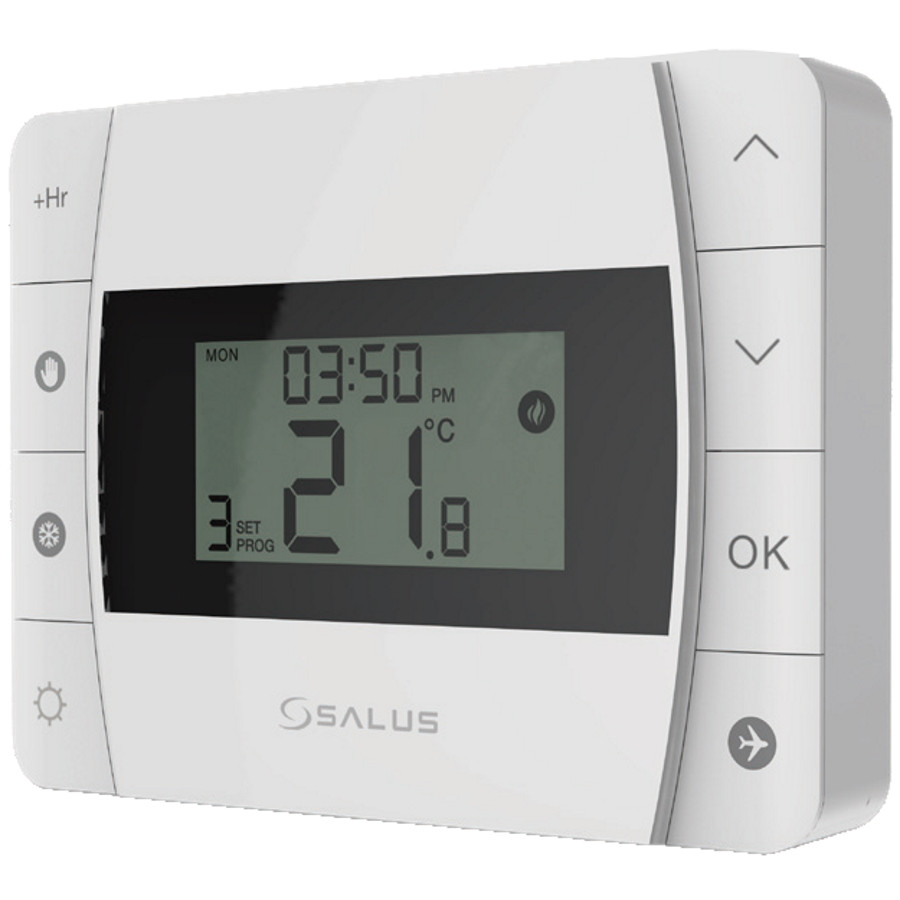

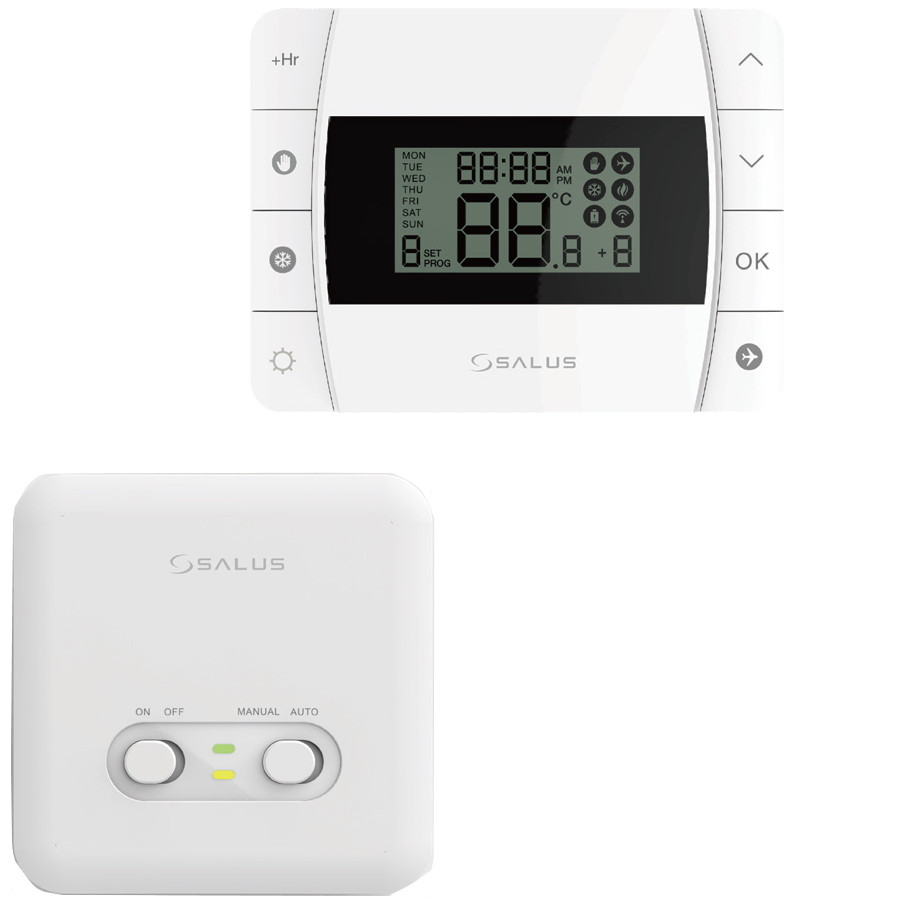

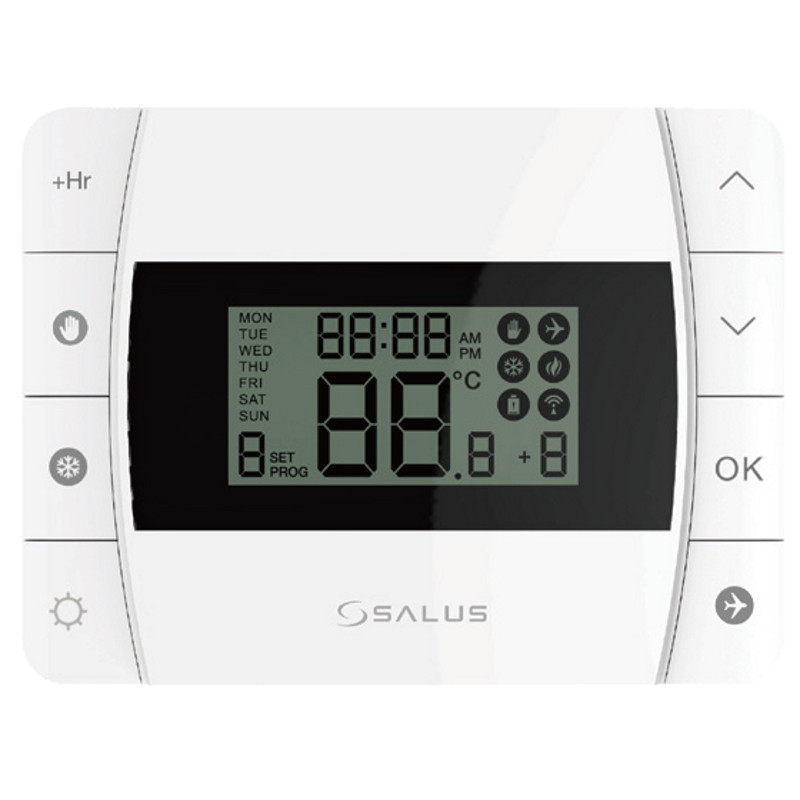

Wireless Programmable Thermostat Salus DT500RF
DT500RF is a programmable room thermostat used to control room temperature. Device launching heating system byshorting terminal blocks, simultaneously informing the action and showing this information on the LCD display.
Extended features allows us to use various operating modes - automatic (time schedules), manual, frost protection or holiday.
Use only AA 1.5 V alkaline batteries in the thermostat..
Specifications
MOUNTING TYPE Wall or desk
POWER SUPPLY TYPE Battery
SUITABLE FOR UNDERFLOOR HEATING No
CONTROLLED VIA INTERNET No
FROST PROTECTION Yes
FREQUENCY 868 MHz
MANUAL OVERRIDE Yes
TEMPERATURE CONTROL ALGORITHM ITLC
OUTPUT VOLTAGE Volt free
ERP (EFFICIENCY CLASS) IV
SIZE 120 x 90 x 29 mm
TEMPERATURE RANGE 5 – 35°C
BATTERY TYPE 2 x AA batteries
VOLTAGE 230V
MAXIMUM AMPERAGE 16 (5) A
QUICK INSTALLATION / CONNECTION Yes
DAILY / MONDAY - SUNDAY PROGRAMMING Yes
SLEEP MODE Yes

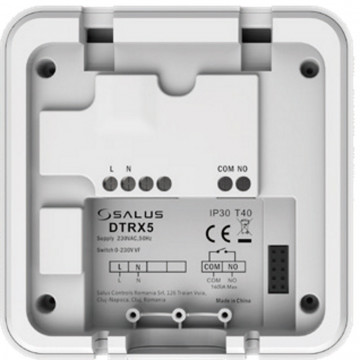

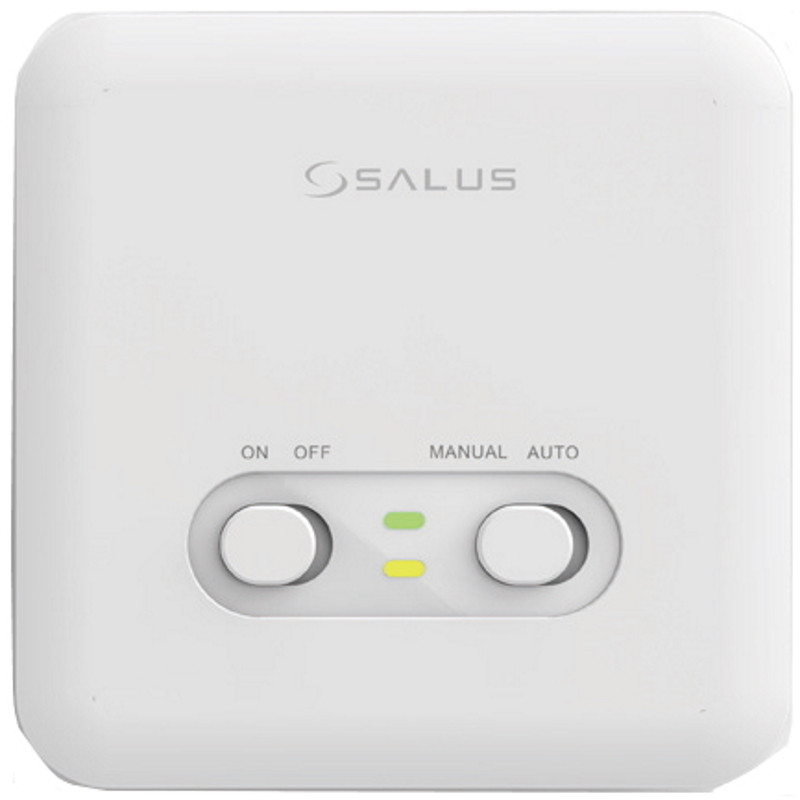

DTRX5 Receiver
Receiver supply 230 V AC
Receiver rating max 16 (5) A
Outputs Voltage free NC / NO / COM terminals
Radio frequency 868 MHz
Dimension 98 x 98 x 25.2 mm
