Wireless Zigbee Room Thermostat RDZ101ZB

Description

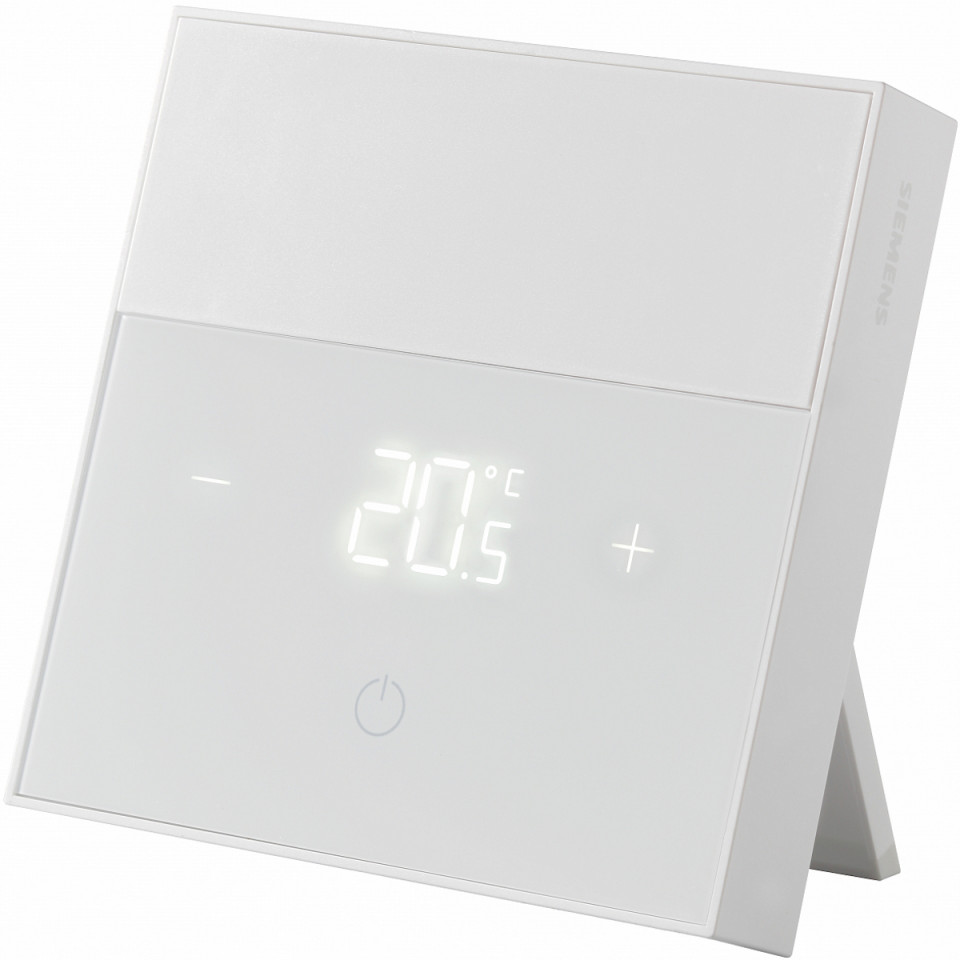

Wireless Zigbee Room Thermostat Siemens RDZ101ZB

For heating systems
● Room temperature control
● Communicates with Connected Home Hub via Zigbee network
● 2-position/TPI control with On/Off output for heating
– RDZ101ZB: With wireless output module
● Open window detection
● Frost protection
● Schedule via mobile application "Connected Home" (downloadable from
Google Play™ or Apple App Store®)
● Adjustable commissioning and control parameters via mobile application
● Battery-powered (2xAA batteries.

Use

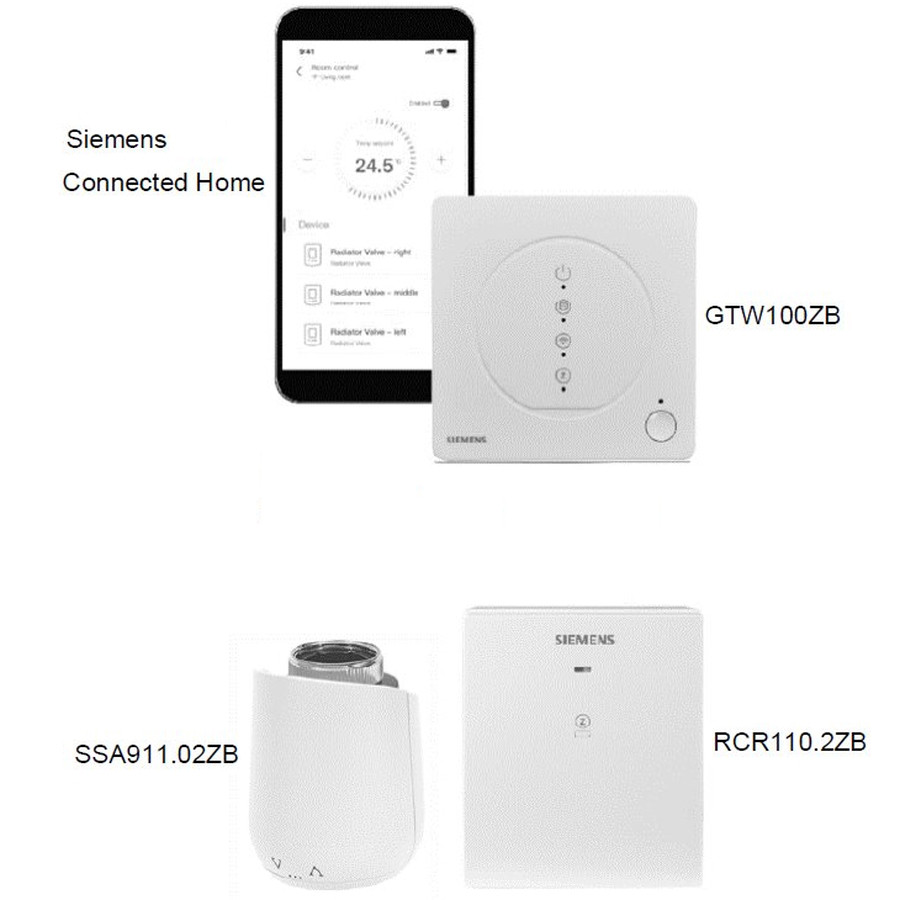

The RDZ101ZB is part of Siemens Connected Home ecosystem. It is used to
control the room temperature in heating systems.

Typical application:
● Apartments
● Single family homes

To control the following pieces of equipment:
● Thermal valves or zone valves
● Gas or oil boilers
● Heat pumps
● Circulating pumps
● Floor heating

Functions

● Room temperature control via built-in sensor
● Selection of operating mode “On” or “Off” (frost protection)
● Setting schedule via the mobile application
● Display of current room temperature
● Setpoint override (manual mode) until the next scheduled switching point
● Limitation of minimum/maximum setpoint adjustments for heating
● Remote operation and monitoring via mobile application
● Open window detection
● Valve exercising
● Heat demand-based boiler or pump release in combination with e.g. Connected Home
Receiver RCR110.2ZB
● Factory reset
● Wireless communication
● Firmware upgrade via Zigbee
● Auto sleep function to save battery.

General technical data

Power supply
Operating voltage DC 3 V (2 x 1.5 V AA alkaline batteries)
Battery life 1 year

Radio parameters
Frequency band 2.4…2.4835 GHz
Maximum radio-frequency power 6 dBm
Communication standard Based on Zigbee 3.0
MAC protocol IEEE 802.15.4
Zigbee channels 11...26
Pairing method with GTW100ZB Global Link Key

Functional data
Protection mode 8 °C
Built-in room temperature sensor
Setpoint setting range 5…35 °C
Accuracy at 25 °C < ±0.5 K
Temperature calibration range ±2.5 K

Resolution of settings and displays
Setpoints 0.5 °C
Temperature value displays 0.5 °C

Ambient conditions and protection classification
Degree of protection of housing as per
EN 60529
IP30
Protection against electrical shock
RDZ100ZB Protection class II
RDZ101ZB Protection class III
Classification as per EN 60730
Function of automatic control devices Type 1
Degree of pollution 2

Weight (including package): 287 g.

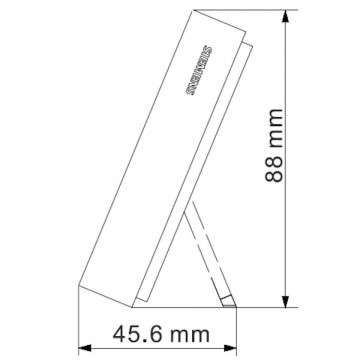

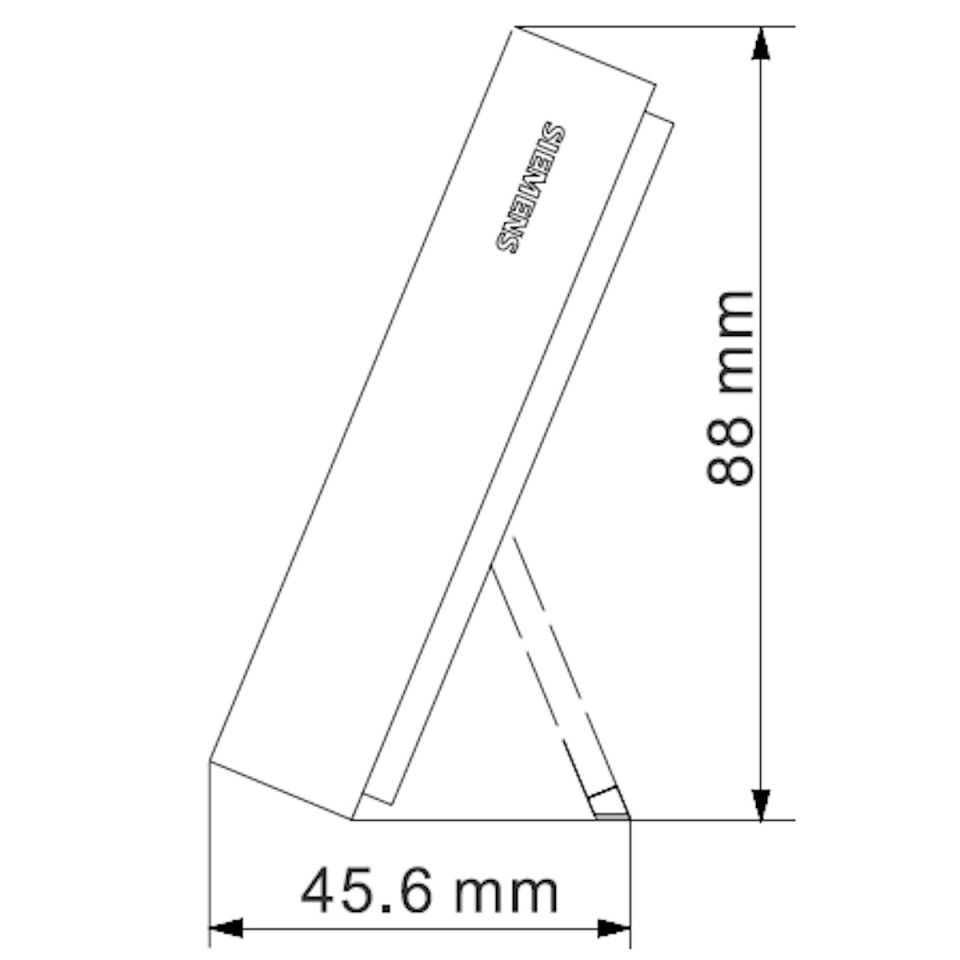

Dimensions: 88 x 88 x 20.5
