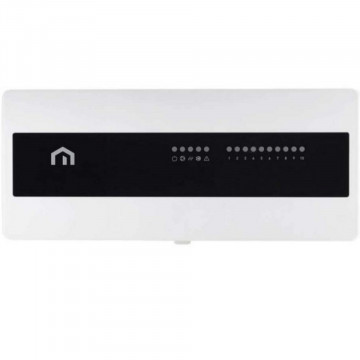

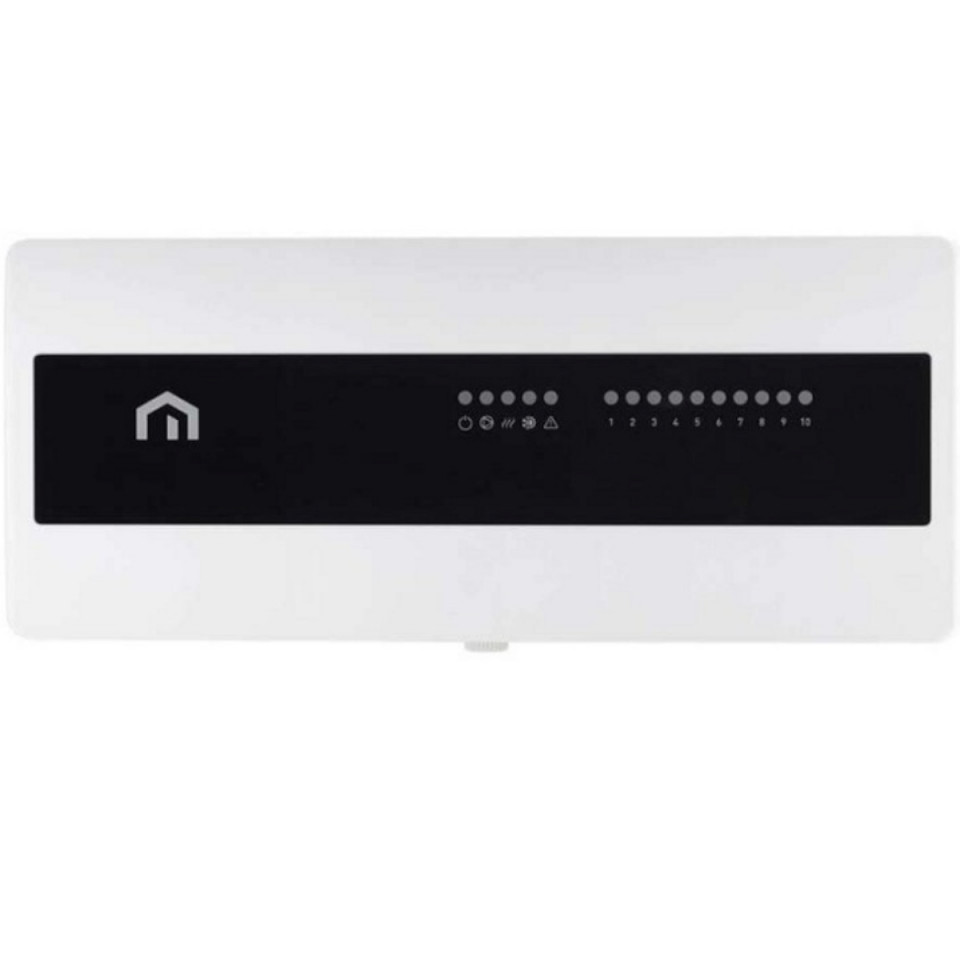

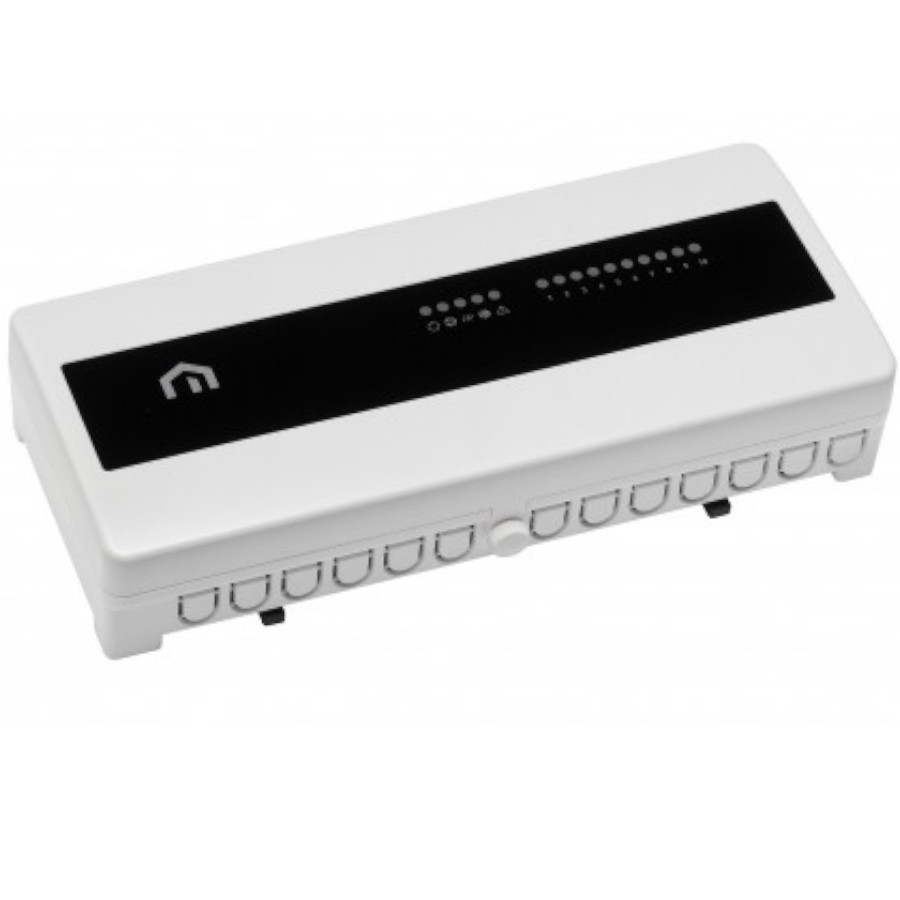

Wiring Centre Unisenza FDW3CADB10FB0020 10 zones 230V

Description

Wiring Centre Purmo Unisenza FDW3CADB10FB0020 10 zones 230 V

Up to 20 actuators per 10-zone wiring centre

• Pump delay selector which allows the individual circuits to open before circulating to prevent wear and noise from the pump
• Pump exercise function that allows the pump to be exercised for 5 minutes every 24 hours to prevent pump seizures following long dormant periods
  e.g. summer shut-off
• Simple changeover from heating to cooling thanks to the external changeover input
• Input for an optional dew point and/or excess temperature sensor to protect the system from condensation when cooling or excess temperature
  when heating
• Easy-to-understand LED indicators provide a quick status reference
• Quick and easy installation
• Multiple system applications are possible when used in conjunction with the Unisenza thermostat range.

For safe and easy wiring of Unisenza room thermostats and actuators.
Suitable for heating and cooling operation. For 10 room thermostats and 2 actuators per room. Integrated pump switch-off module (live contact in 230 V version) with pump protection function. Boiler/heat pump contact (relay). Connection for optional dew point and excess temperature sensor.
LED switching status displays for pump and boiler contacts, heating or cooling mode operation, dew point exceeded, thermostat request etc..
Screw mounting.
