Wiring centre 8 zones KL08RF
RON 822.02
(VAT Included)
Delivery costs are not included
Financing through Online Credit smart by BT Direct
How can we help you?
Description

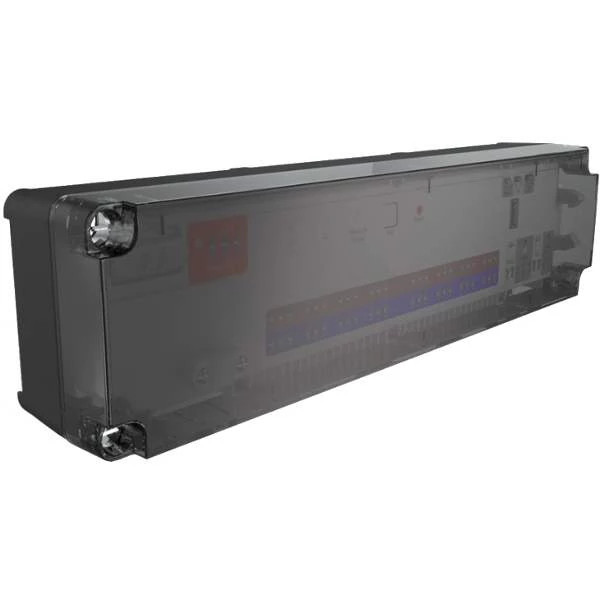

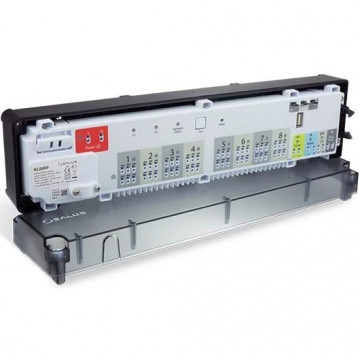

Wiring centre for 8 zones Salus KL08RF

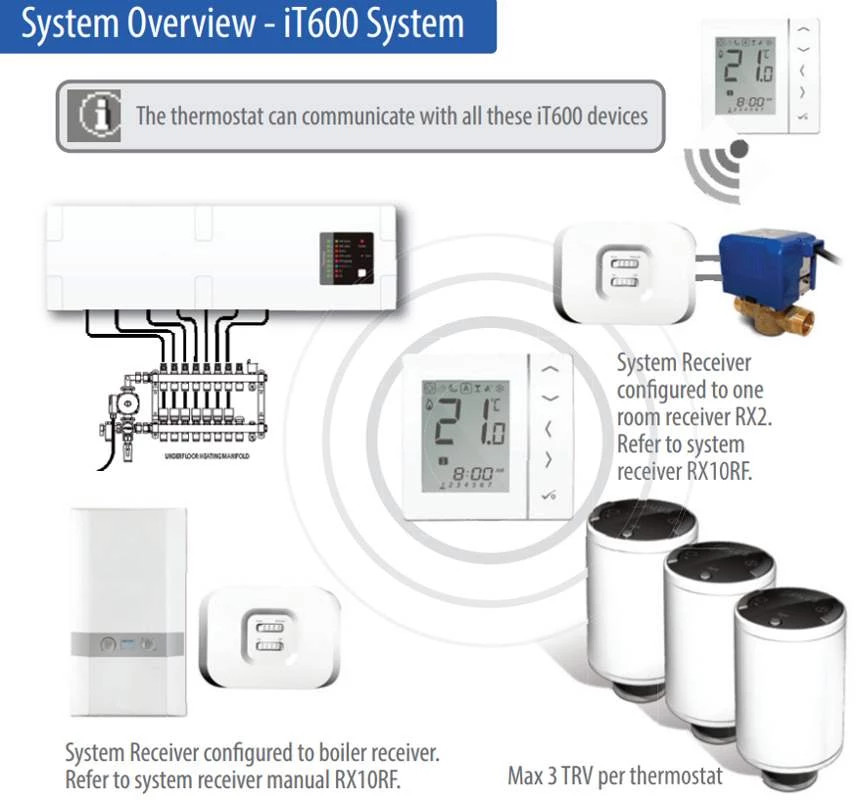

The wiring centre works in a wireless connection with thermostats of the SALUS Smart Home series. It has built-in pump and boiler control outputs - works with NC or NO actuators.
You can connect 9 KL08RF wiring centres in one ZigBee network (Online or Offline).
Control:
• Online - using the SALUS Smart Home application and the UGE600 universal gateway
• Offline - with the CO10RF coordinator use (in set with the wiring centre)
Product advantages:
• control of 8 independent heating zones
• 24 outputs for connecting the actuators (3 per zone)
• works only with SALUS Smart Home series thermostats
• adaptation for mounting on a 35 mm DIN rail
Technical specifications
| Power supply | 230V AC 50 Hz |
| Rating max | 3 A |
| Inputs | Heating/cooling changeover, Dew point |
| Outputs | Pump (NO/COM), Boiler (NO/COM) |
| Actuator outputs | 230V |
| Communication | Wireless, ZigBee 2.4 GHz |
| Dimension [mm] | 355 x 85 x 67 |
Details
SKU
KL08RF
Categories
Weight
0.5 kg
Brand
Physical Characteristics
Material
Plastic
Colour
Black
Connectivity
wireless, Zigbee
