Wood gasification Boiler CGF Pro 50

Description

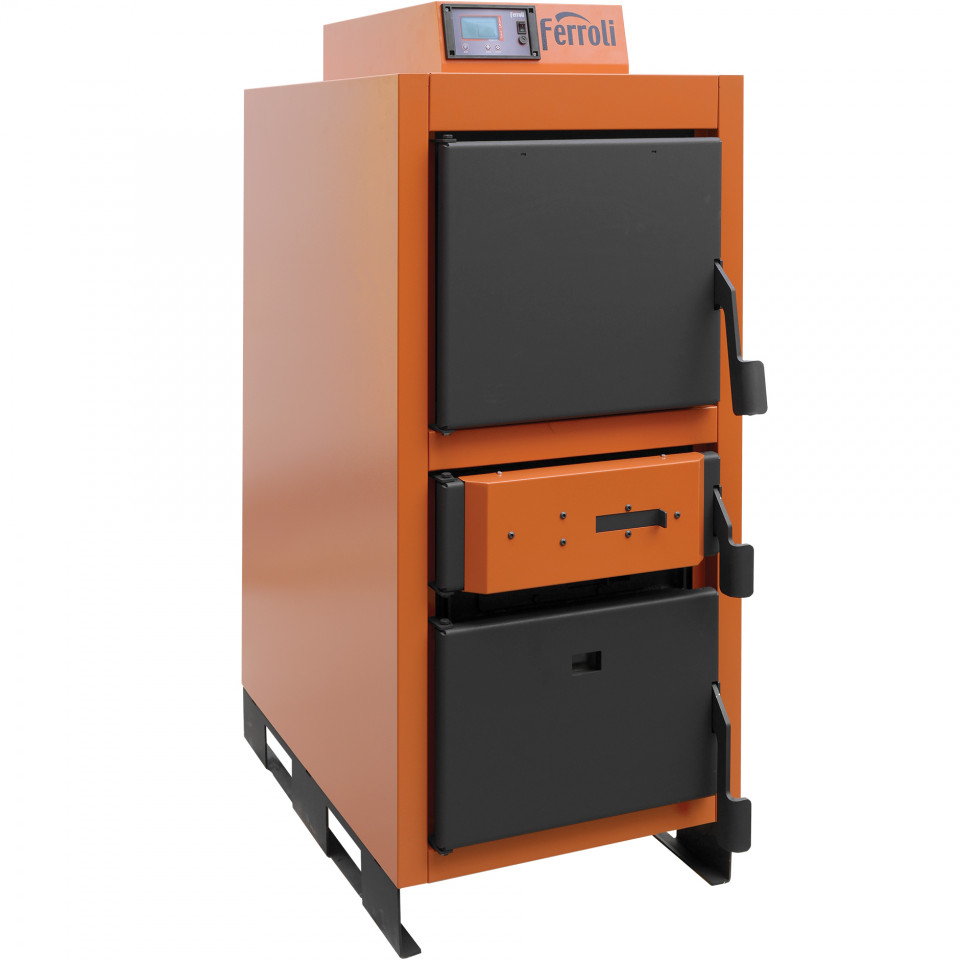

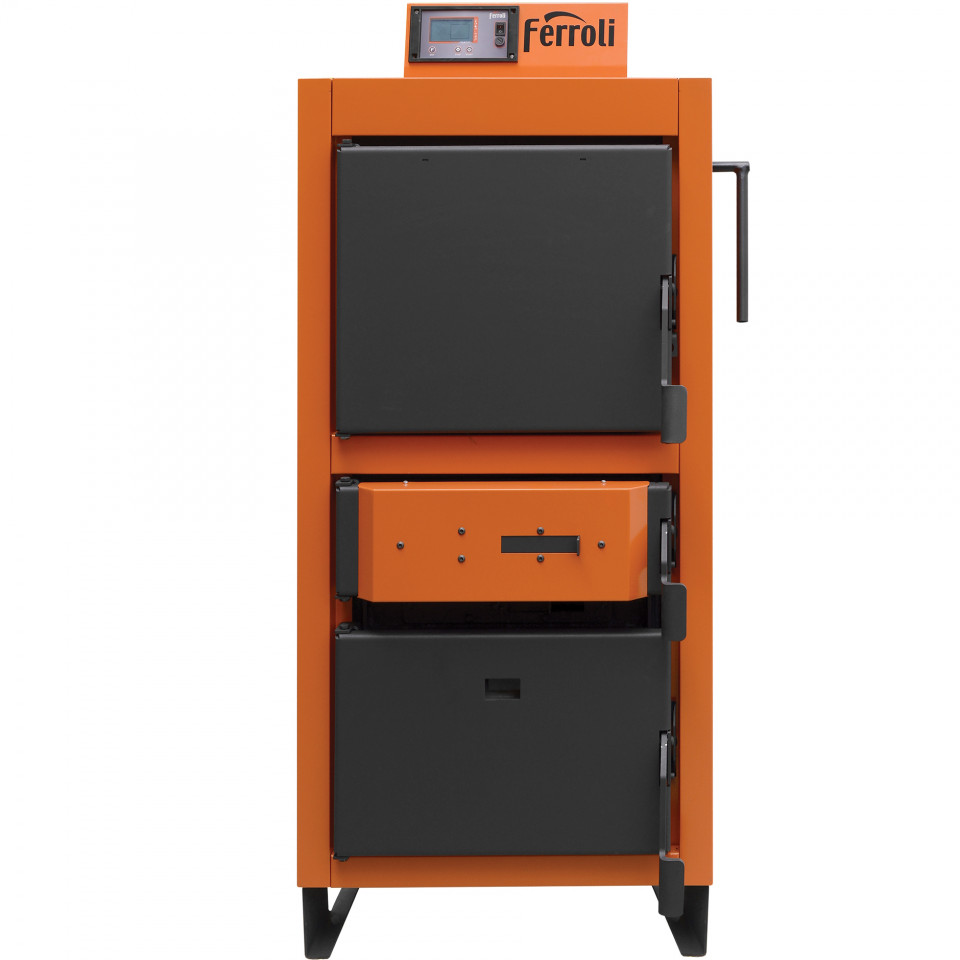

Wood gasification Boiler Ferroli CGF Pro 50

The CGF PRO boiler works with wood and uses the principle of gasification, thus being one of the most efficient heating solutions, ensuring an efficient and complete combustion of wood.

Characteristics:

large storage room

combustion chamber with high efficiency heat recuperators

main/secondary combustion air preheating chamber

high autonomy of operation

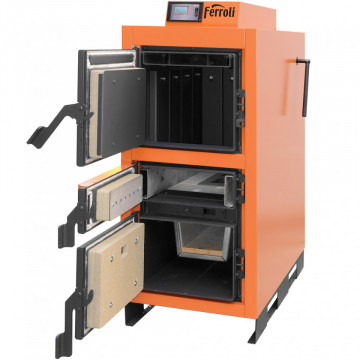

enlarged feed door

generous sized cleaning door

large volume of water in the boiler

optimal operation of the boiler by controlling the temperature of the combustion gases

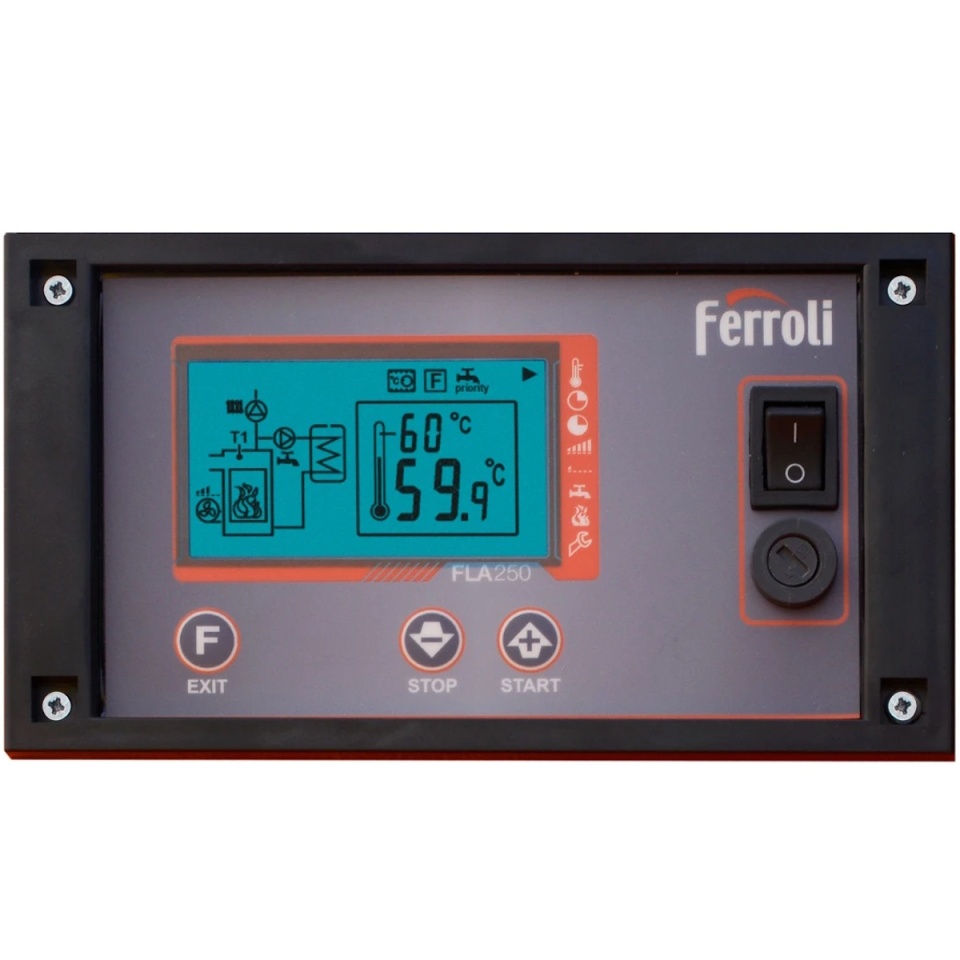

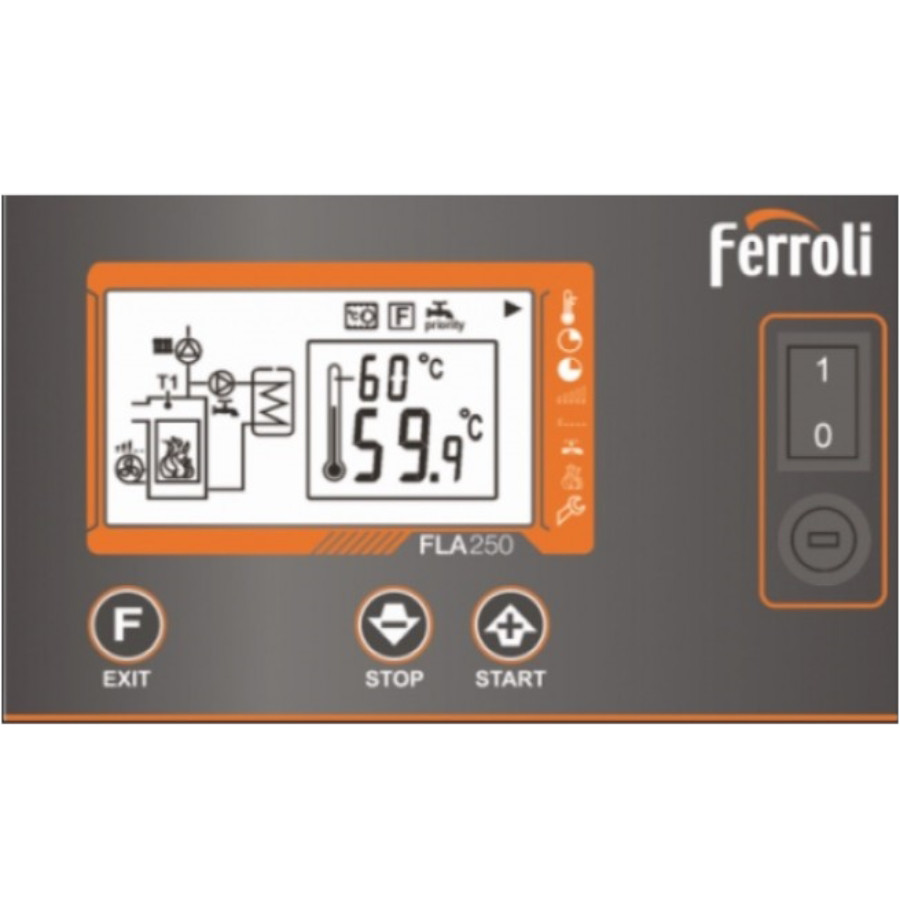

visualization and control of working temperature

possibility of additional protection management

self-diagnosis - error codes and sound signal.

Technical data

Nominal power 50 kW
Thermal power range 25-50 kW
Boiler class EN 303-5:2021 5
Required draft 21 Pa
Boiler water content 150 liters
The temperature of the burnt gases at the nominal thermal power of 150ºC
The temperature of the burnt gases at a minimum thermal power of 95ºC
Minimum operating time at rated power (rated Q) 3 h
Minimum return temperature of the thermal agent 60ºC
Max. temperature working temperature 90ºC
Fuel type A, wood, normal 14964-5
Fuel moisture content max 20%
Max. length wood 500 mm
Fuel loading chamber capacity 136 litres
Combustion chamber type IN DEPRESSION
Minimum water volume of the puffer: According to EN 303-5:2021
Supply voltage 230 V, Frequency 50 Hz
Electric power absorbed 100 W
Weight 546 kg, Dimensions WxHxH 663 x 1259 x 1550 mm
Max. working pressure 2.5 bar
External diameter of the boiler connection to the chimney 149 mm
Boiler in operation: with fan in non-condensing conditions
Boiler energy efficiency class A+
