Description

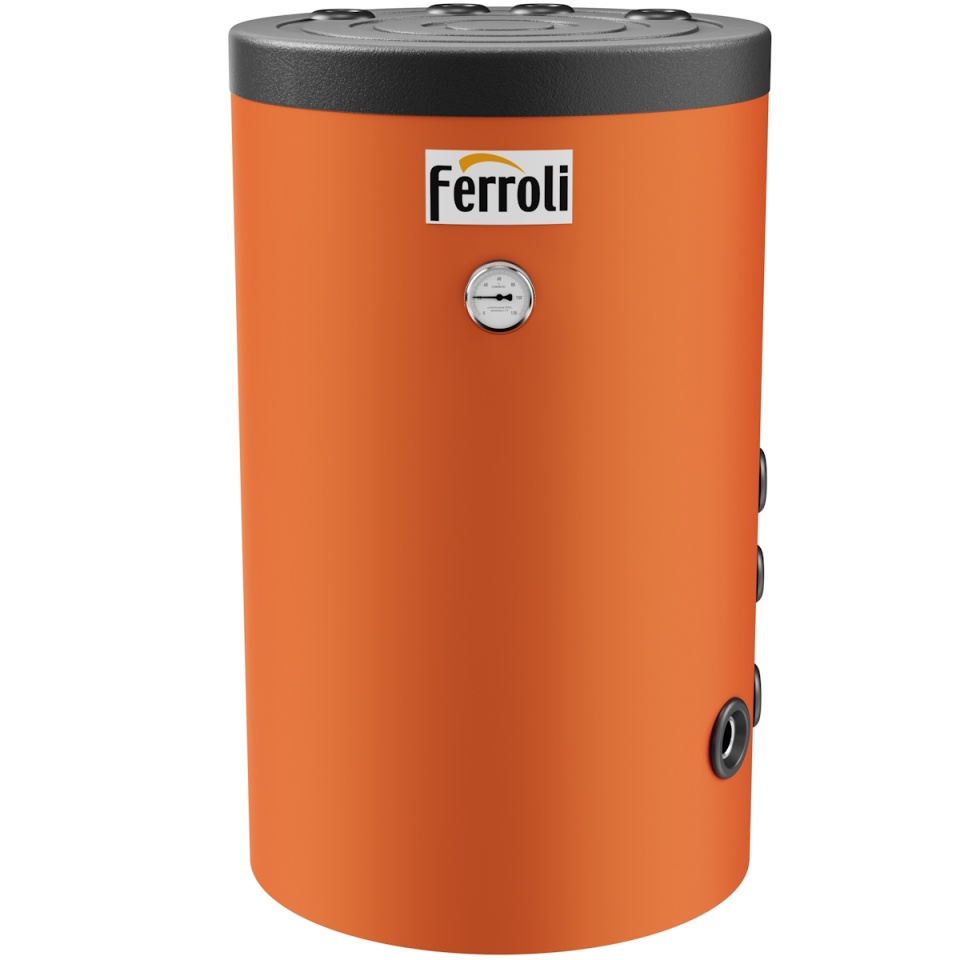

♨️ Ferroli Ecounit TOP 200 Litre Indirect Water Heater (Top Connections)

Name: Ferroli Ecounit TOP 200L Indirect Water Heater - 29 kW Coil ⚡
Brand: Ferroli
SKU: ETOP200
Price: 3858.69 RON
Availability: InStock

The Ferroli Ecounit TOP 200 💧 indirect water heater is engineered for fast, high-efficiency domestic hot water (DHW) production, making it the ideal partner for heating-only wall-hung boilers 🏡. Its main distinguishing feature is the top-mounted hydraulic connections 🔝, allowing for a clean, compact, and aesthetic installation directly underneath your wall-mounted boiler.

With a total capacity of 200 litres (182L net storage capacity) 🛢️ and a high-performance 29 kW coil with an extended heat exchange surface (1.68 m²) 🌀, the Ecounit TOP 200 guarantees a continuous supply of hot water and a rapid reheat time of just 12.9 minutes ⏱️.

✨ Key Features & Technical Benefits

🔝 Top-Mounted Connections: Specially designed for seamless integration with wall-hung boilers, saving valuable space 📐 and keeping pipework neatly organized.

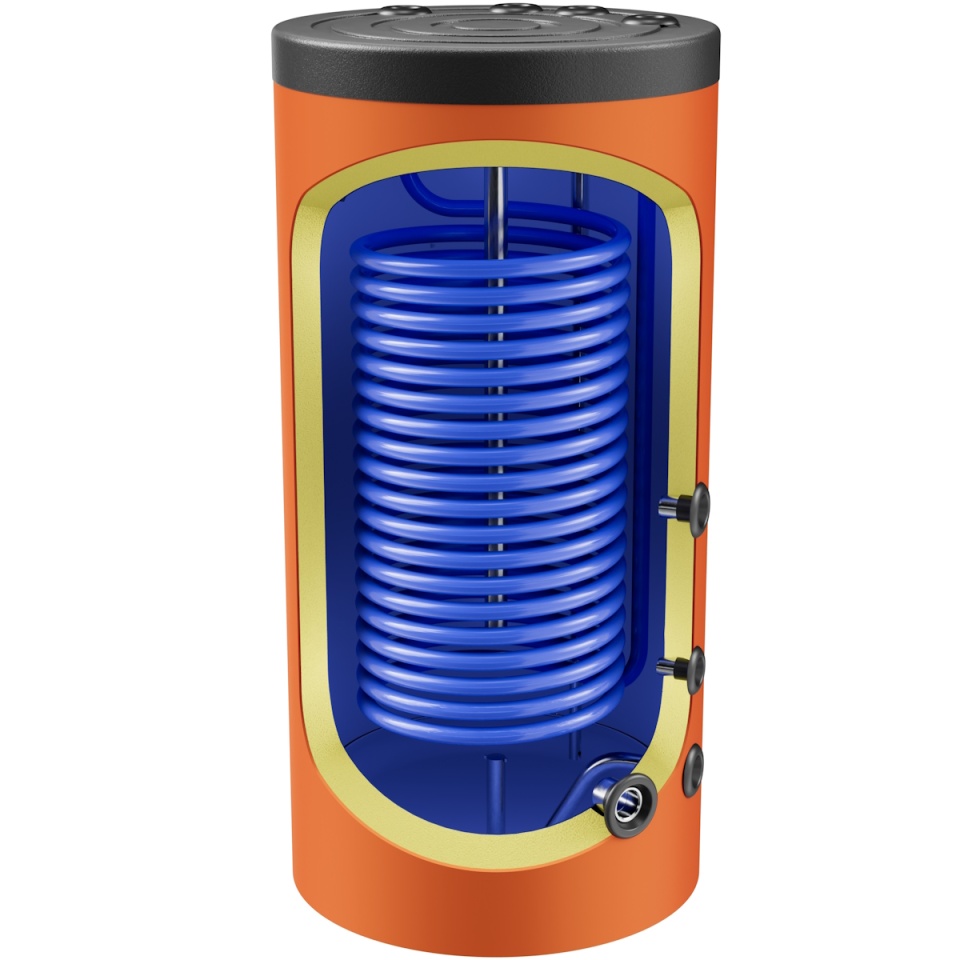

⚡ High-Efficiency Heating Coil: Large 1.68 m² heat exchanger surface area delivers rapid heat transfer 🔥 and continuous hot water flow.
🛡️ Superior Thermal Insulation: High-density polyurethane foam layer (50 mm thick) ❄️ minimizes heat loss for enhanced energy efficiency.
💎 Advanced Corrosion Protection: High-grade vitrified enamel lining paired with a large magnesium anode 🧲 (Ø33 / L1000 mm) ensures maximum durability.
🎛️ Fully Equipped for Automation: Factory-fitted with an adjustable control thermostat 🌡️, sensor pocket, and dedicated DHW recirculation port.

📊 Ferroli Ecounit TOP 200 Technical Specifications

⚙️ Technical Parameter	📋 Specification / Detail
💧 Total / Net Capacity	200 Litres / 182 Litres
🔥 Heat Exchanger Output (EN 12897)	29 kW
🌀 Heat Exchanger Surface Area	1.68 m²
⏱️ Reheat Time (EN 12897)	12.9 minutes
🌱 Energy Efficiency Class (ErP)	Class C
🛡️ Polyurethane Insulation Thickness	50 mm
📊 Max. Working Pressure (Tank / Coil)	6 bar (0.6 MPa) / 10 bar (1.0 MPa)
🌡️ Max. Temperature (Heating Water / DHW)	110 °C / 95 °C
📏 Dimensions (Diameter x Height)	600 mm x 1220 mm
⚖️ Gross Weight	71 kg
🔌 Connections (Flow/Return, Cold/Hot Water, Recirculation)	G 3/4" F (Top Connection) 🔝

💡 Why Choose the Ferroli Ecounit TOP 200?

Top-mounted connections 🔝 eliminate the need for complex, unsightly side piping, offering an ergonomic solution for compact plant rooms and residential spaces. High-quality anti-limescale protection 🧼 and an integrated recirculation port 🔄 ensure instant, reliable hot water at your taps whenever you need it! 🚿✨

🛠️ Installation & Accessory Recommendations

To ensure safe and long-lasting operation, we recommend pairing the unit with:

🛢️ DHW Expansion Vessel: Compatible expansion tank (e.g., Ferroli VFN 35L) to handle thermal expansion.
🔒 Safety Valve: Sized correctly for your system's working pressure.
🧲 Scale Inhibitor / Magnetic Filter: Fitted on the cold water inlet to protect the coil and tank from limescale deposits.
