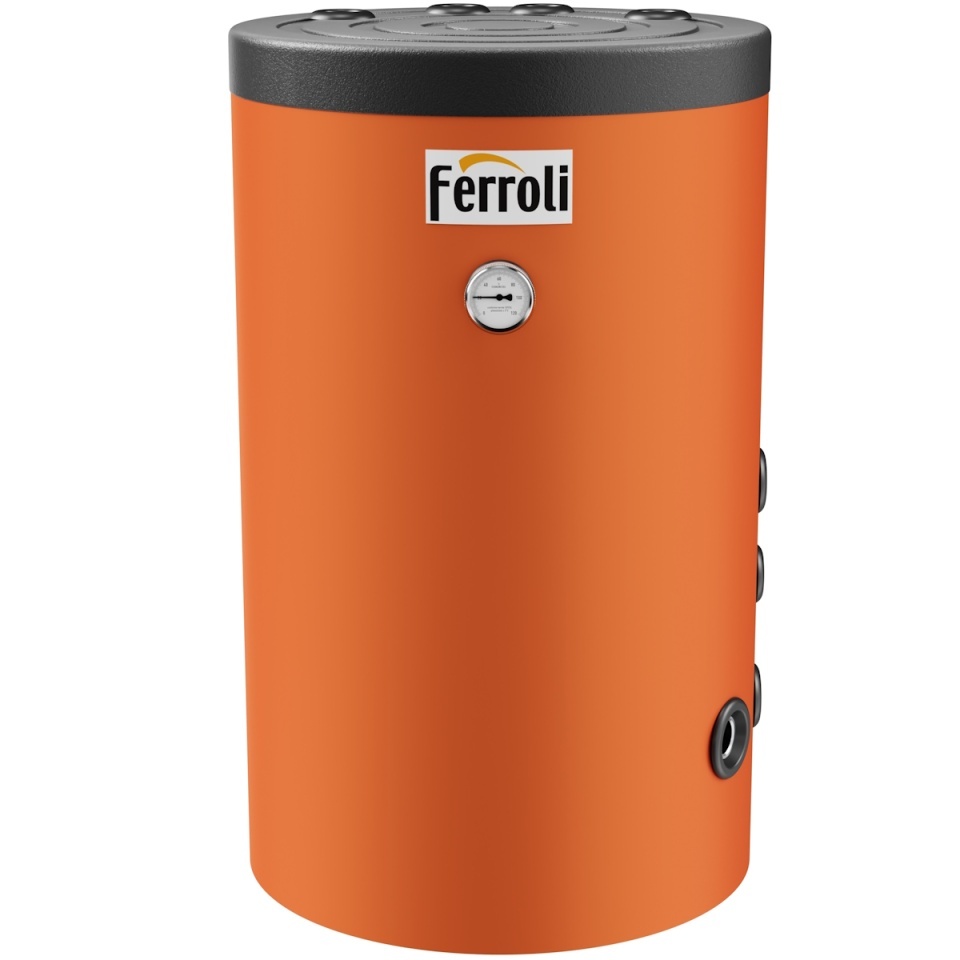

♨️ Ferroli Ecounit TOP 150 Litre Indirect Water Heater (Top Connections)

Name: Ferroli Ecounit TOP 150L Indirect Water Heater - 23 kW Coil ⚡
Brand: Ferroli
SKU: ETOP150
Price: 3260.95 RON
Availability: InStock

The Ferroli Ecounit TOP 150 💧 indirect water heater is engineered for fast, high-efficiency domestic hot water (DHW) production, making it the ideal partner for heating-only wall-hung boilers 🏡. Its standout feature is the top-mounted hydraulic connections 🔝, enabling a clean, compact, and space-saving installation directly underneath your boiler.

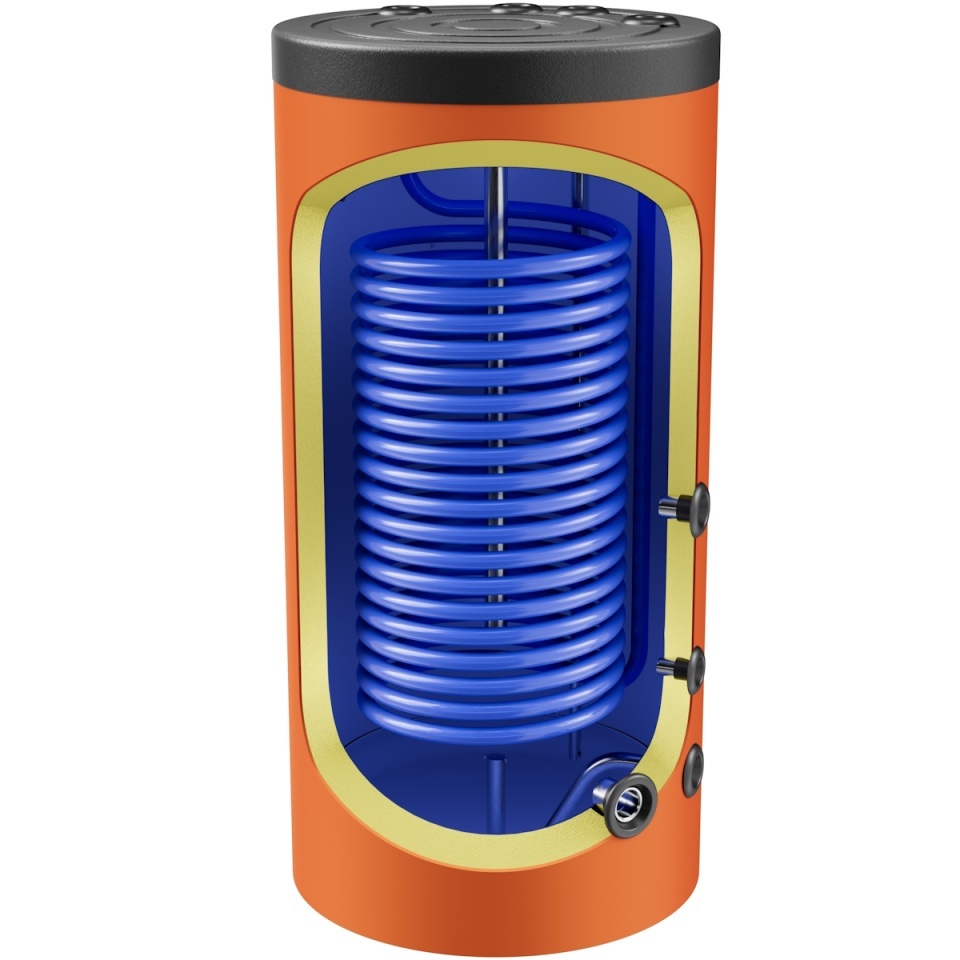

Featuring a total capacity of 150 litres (141L net storage capacity) 🛢️ and a high-performance 23 kW coil with an extended heat exchange surface (1.22 m²) 🌀, the Ecounit TOP 150 guarantees a continuous supply of hot water and a rapid reheat time of just 12.5 minutes ⏱️.

✨ Key Features & Technical Benefits

🔝 Top-Mounted Connections: Specifically designed for seamless integration with wall-hung boilers, saving valuable floor space 📐 and keeping pipework neatly organized.
⚡ High-Efficiency Heating Coil: Large 1.22 m² heat exchanger area delivers rapid heat transfer 🔥 and continuous hot water flow.
🌱 Energy Class B Efficiency: High thermal retention thanks to a thick 50 mm polyurethane foam insulation layer ❄️ that minimizes heat loss.
💎 Advanced Corrosion Protection: High-grade vitrified enamel lining paired with a large magnesium anode 🧲 (Ø32 / L800 mm) ensures long service life.
🎛️ Complete Control Ready: Pre-equipped with an adjustable control thermostat 🌡️, sensor pocket, and a dedicated DHW recirculation connection.

📊 Ferroli Ecounit TOP 150 Technical Specifications

⚙️ Technical Parameter	📋 Specification / Detail
💧 Total / Net Capacity	150 Litres / 141 Litres
🔥 Heat Exchanger Output (EN 12897)	23 kW
🌀 Heat Exchanger Surface Area	1.22 m²
⏱️ Reheat Time (EN 12897)	12.5 minutes
🌱 Energy Efficiency Class (ErP)	Class B
🛡️ Polyurethane Insulation Thickness	50 mm
📊 Max. Working Pressure (Tank / Coil)	6 bar (0.6 MPa) / 10 bar (1.0 MPa)
🌡️ Max. Temperature (Heating Water / DHW)	110 °C / 95 °C
📏 Dimensions (Diameter x Height)	600 mm x 980 mm
⚖️ Gross Weight	59 kg
🔌 Connections (Flow/Return, Cold/Hot Water, Recirculation)	G 3/4" F (Top Connection) 🔝

💡 Why Choose the Ferroli Ecounit TOP 150?

Top-entry connections 🔝 make this cylinder an ideal choice for compact utility rooms and residential installations. The durable anti-limescale enamel coating 🧼 combined with the DHW recirculation port 🔄 ensures instant, reliable hot water at your taps whenever you need it! 🚿✨

🛠️ Installation & Accessory Recommendations

For safe, optimal performance, we recommend installing the unit alongside:

🛢️ DHW Expansion Vessel: Compatible expansion tank (e.g., Ferroli VFN series) to absorb pressure fluctuations.
🔒 Safety Valve: Sized to match your system’s maximum working pressure.
🧲 Scale Inhibitor / Magnetic Filter: Installed on the cold water inlet to protect the coil and tank from limescale buildup.
