Bosch Solar B-sol 100-2 Controller

Description

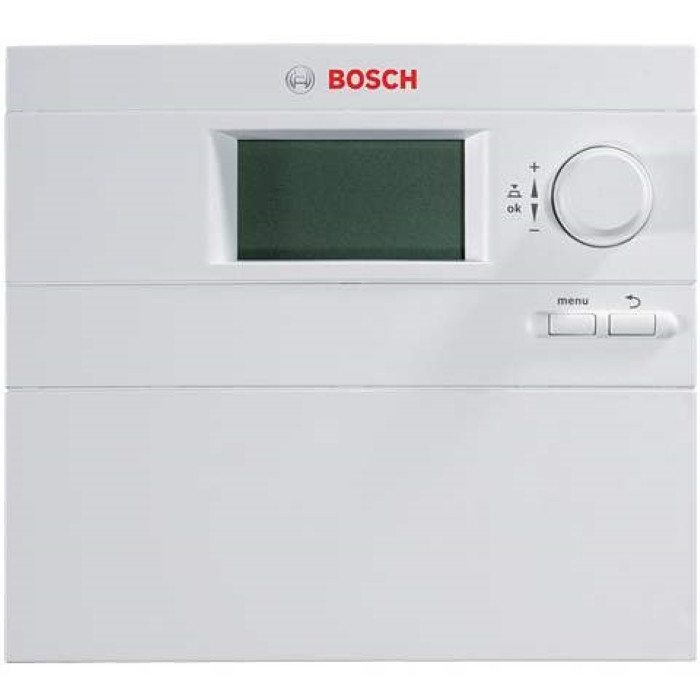

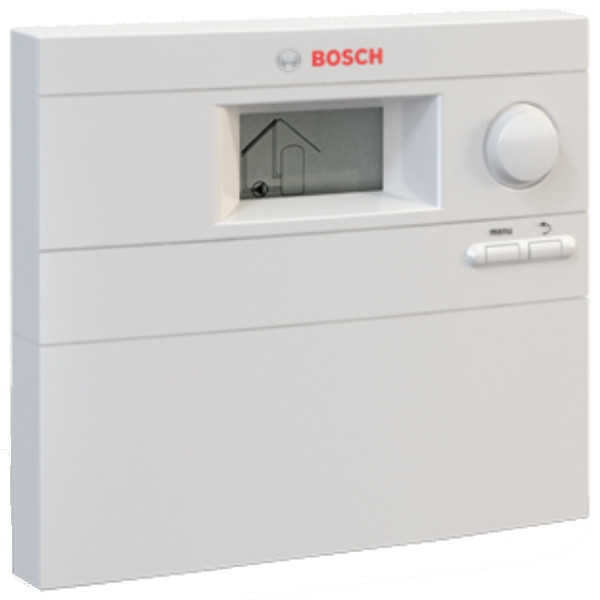

Bosch Solar B-sol 100-2 Controller

for solar installations with 1 consumer

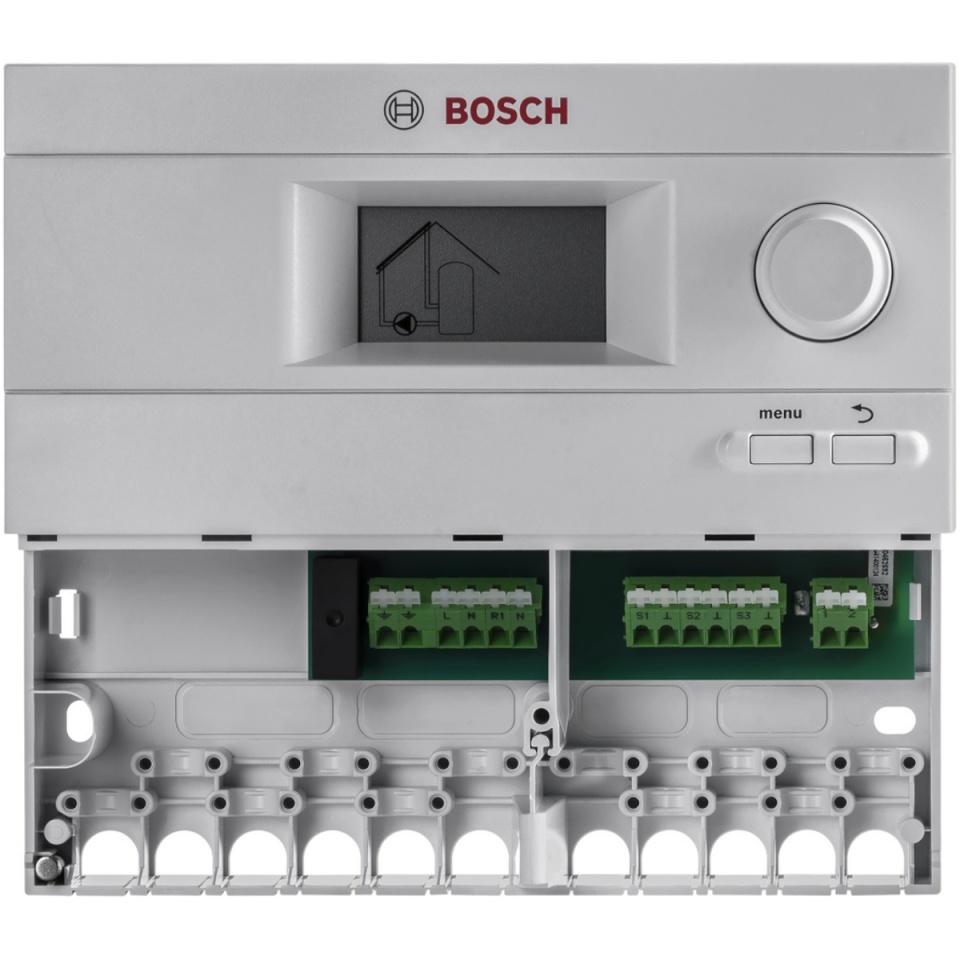

3 inputs for NTC sensors

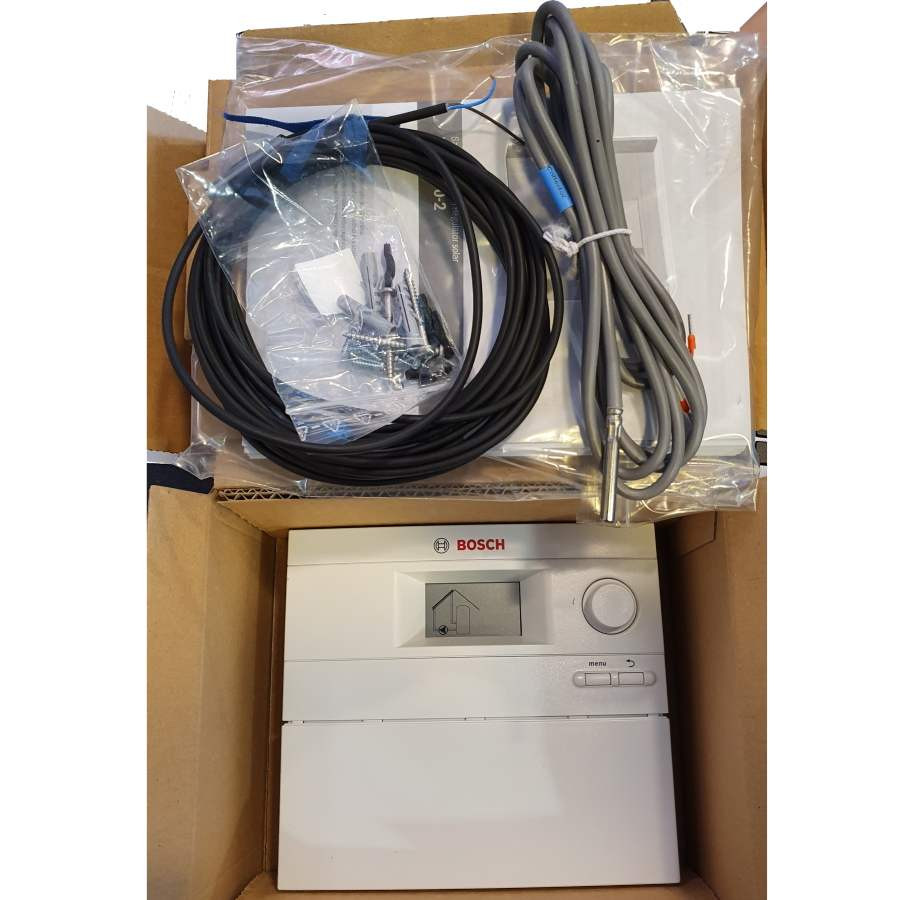

The delivery set contains: solar automation, collector sensor NTC20K, boiler sensor NTC12K, mounting accessories

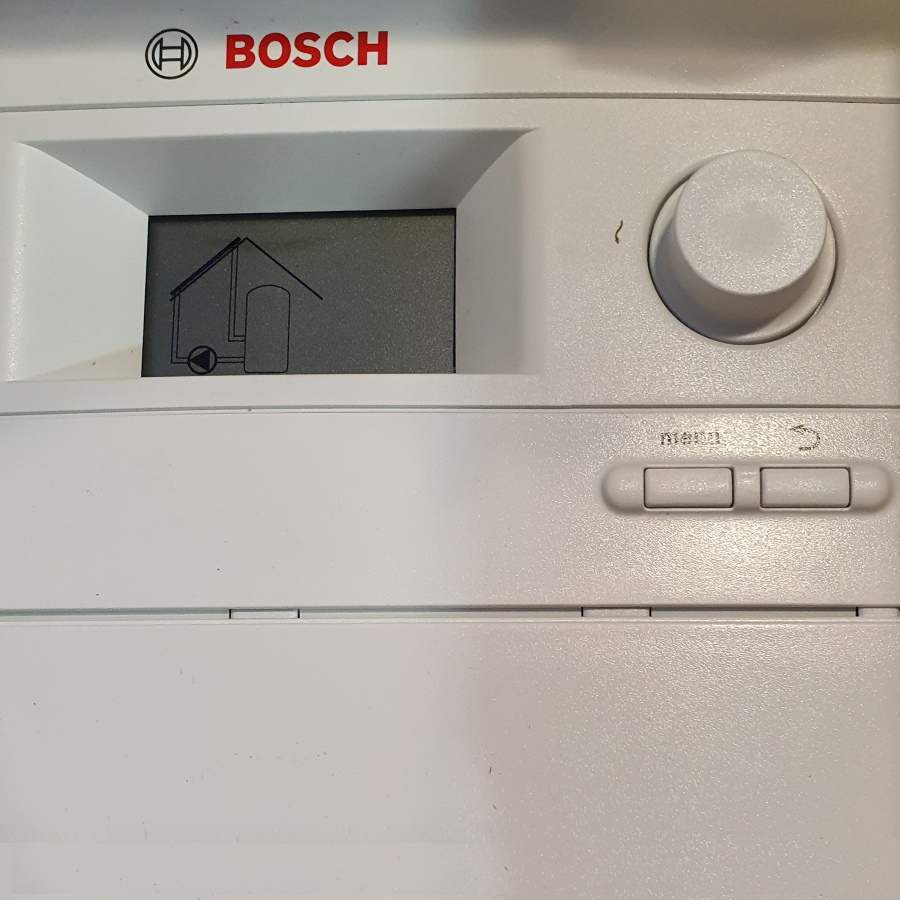

LCD display (with 48 segments) with icons for the solar installation; illuminated background
Neutral operation without text, through icons
It is mounted on the wall

Technical Data

Power consumption = 1 W; Type of protection IP20
Supply voltage = 230 V AC, 50 Hz; Operating current Imax = 1.1 A
load max. of current at the pump output 1.1 A (Connect only 1 pump!)
Dimensions HxWxH = 170x190x53 mm
Measuring range: - 30 °C to + 180 °C
Allowed ambient temperature: 0 to + 50 °C
Collector temperature sensor: NTC 20K with 2.5 m long cable; storage temperature sensor: NTC 10K with 3 m long cable
