Description

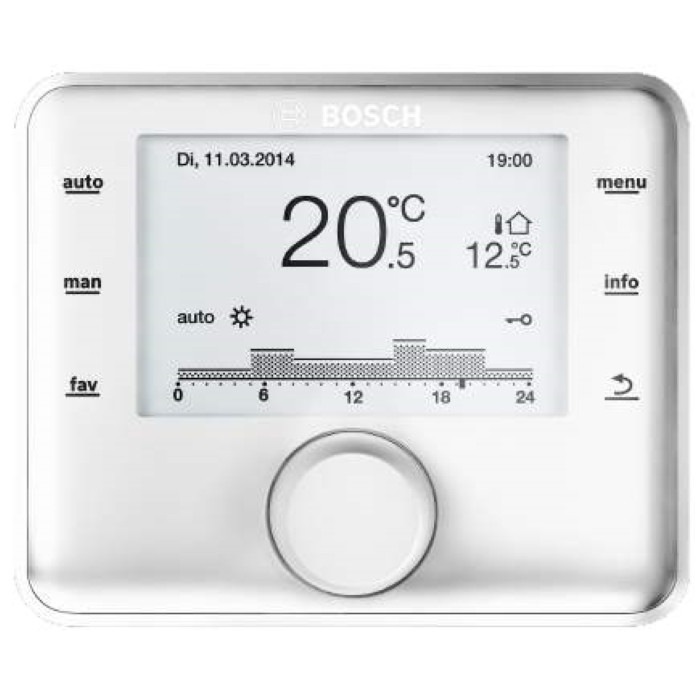

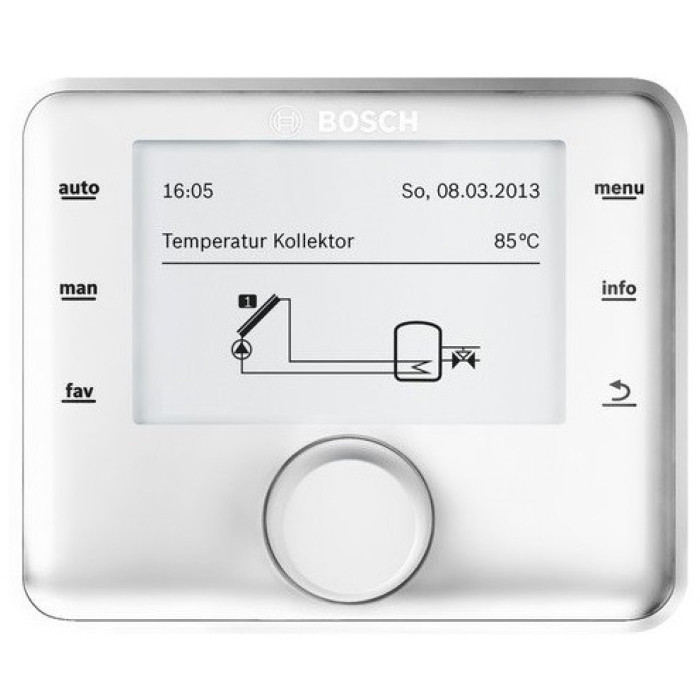

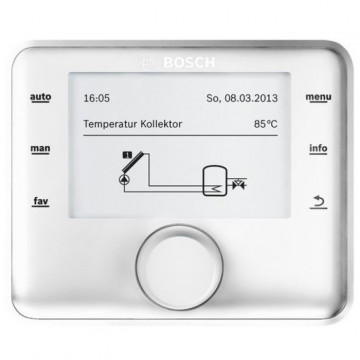

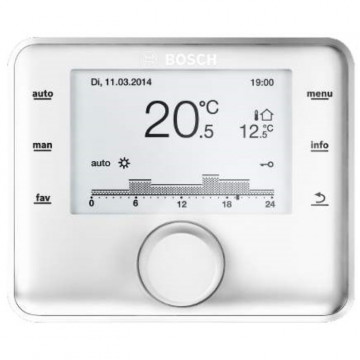

Solar Controller Bosch CS 200 EMS 2.0

CS 200 is used for the automation of solar systems for complex installations, for heating domestic hot water, as a support for the heating installation, for heating the swimming pool. It can also be used for several solar panels. An MS200 module is required for use.

several circuits can be chosen: domestic water heating, support for the heating installation, pool heating, etc.
The liquid crystal display and additional accessories are also suitable for measuring the amount of heat.
CR/CW400 Platform Independent Solar Automation
Intended for simple or complex solar systems not connected to heating equipment, systems with constant domestic hot water flow and preheating
Only in combination with the MS100 or MS200 solar module.

Technical Data

Dimensions = 150x90x25 mm.
Nominal voltage 10 ... 24 Vdc. Rated current (without light) =9 mA. EMS BUS interface 2.
Allowed ambient temperature 0°C...50°C. Protection class: III. Protection type: IP20.
