Solar controller DeltaSol CS/4

Description

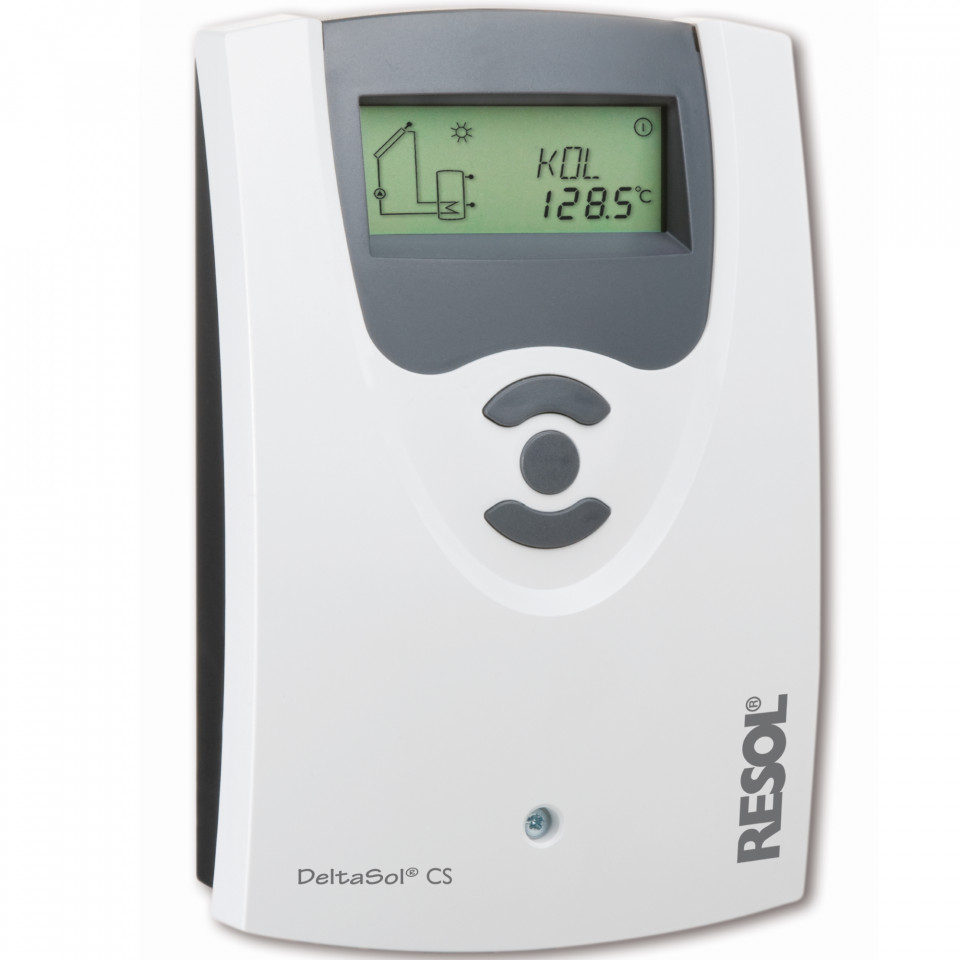

Solar controller Resol DeltaSol^® CS/4

The DeltaSol^® and CS/4 controllers are used for speed control of a HE pump in small standard solar thermal and heating systems.

They are equipped with a PWM output as well as with an input for a VFD Grundfos Direct Sensor™ which enables precise heat quantity measurement. The commissioning menu ensures an easy and quick configuration.

DeltaSol® CS/4
■ 3 basic system layouts (DeltaSol® CS/4),
■ Tube collector function, thermal disinfection function
A PWM adapter cable is included with the controller.

Technical Data:

Inputs:
4 Pt1000 temperature sensors, 1 VFD Grundfos Direct SensorTM
Outputs 1 semiconductor relay, 1 PWM output (CS/2),
2 semiconductor relays, 1 PWM output (CS/4),
2 semiconductor relays, 2 PWM outputs (CS Plus)
PWM frequency: 512 Hz
PWM voltage: 10.5 V
Switching capacity: 1 (1) A 240 V~ (semiconductor relay)
Total switching capacity: 2 A 240 V~ (CS/4, CS Plus)
Power supply: 100–240V~ (50 –60 Hz)
Supply connection: type X attachment
Standby: 0.60 W (CS/4)
Temperature controls class: I (CS/4)
Energy effciency contribution: 1 % (CS/4)
Mode of operation: type 1.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus®
VBus® current supply: 35 mA
Functions: tube collector function and thermostat function (CS/4, CS
Plus), function control, operating hours counter, speed control, drainback
option and heat quantity measurement
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, mounting into patch panels is possible
Indication/Display: System-Monitoring-Display for system visualisation,
16-segment and 7-segment display, 8 symbols for indication of system status
Operation: 3 buttons
Ingress protection: IP 20/EN 60529
Protection class: I
Ambient temperature: 0…40 °C
Degree of pollution: 2
Fuse: T2A
Maximum altitude: 2000 m above MSL
Dimensions: 172 x 110 x 46 mm
