Name: Magnetic filter Cleanex Mag HF Max 35mm
Brand: Chemstal
SKU: LBXHFMX001
Price: 701.31 RON
Availability: InStock

Description

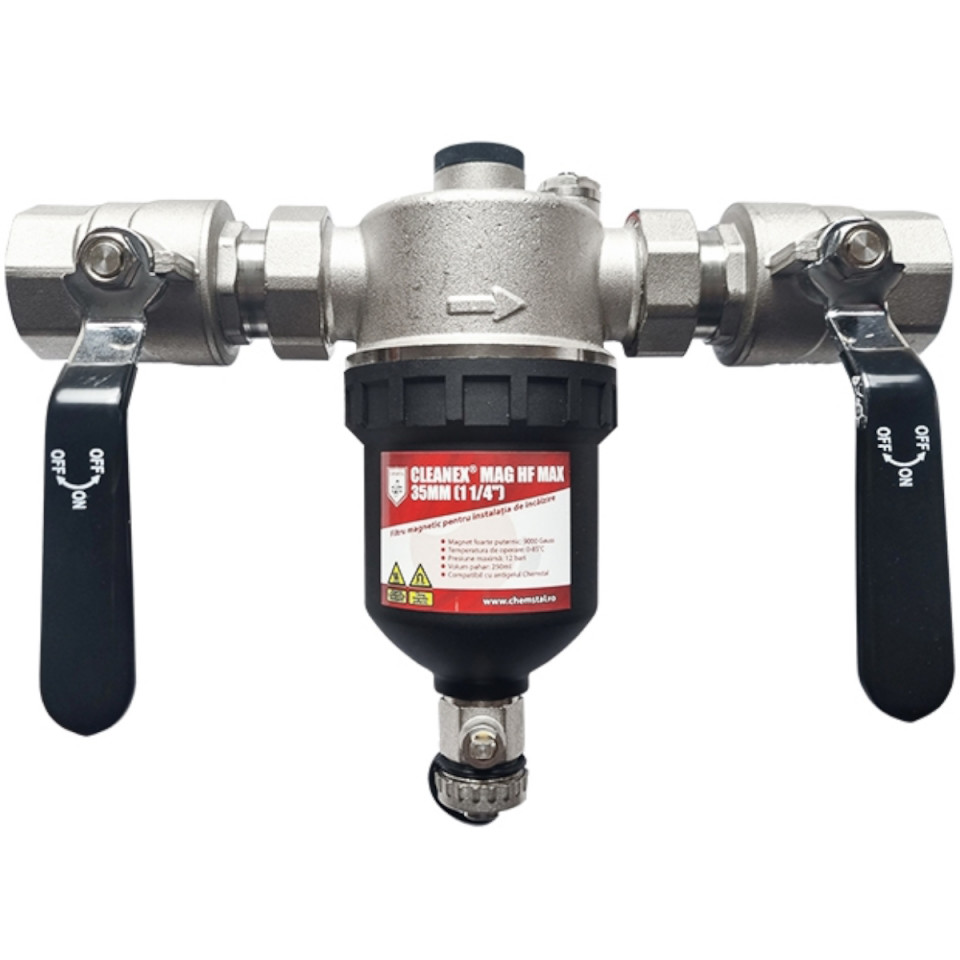

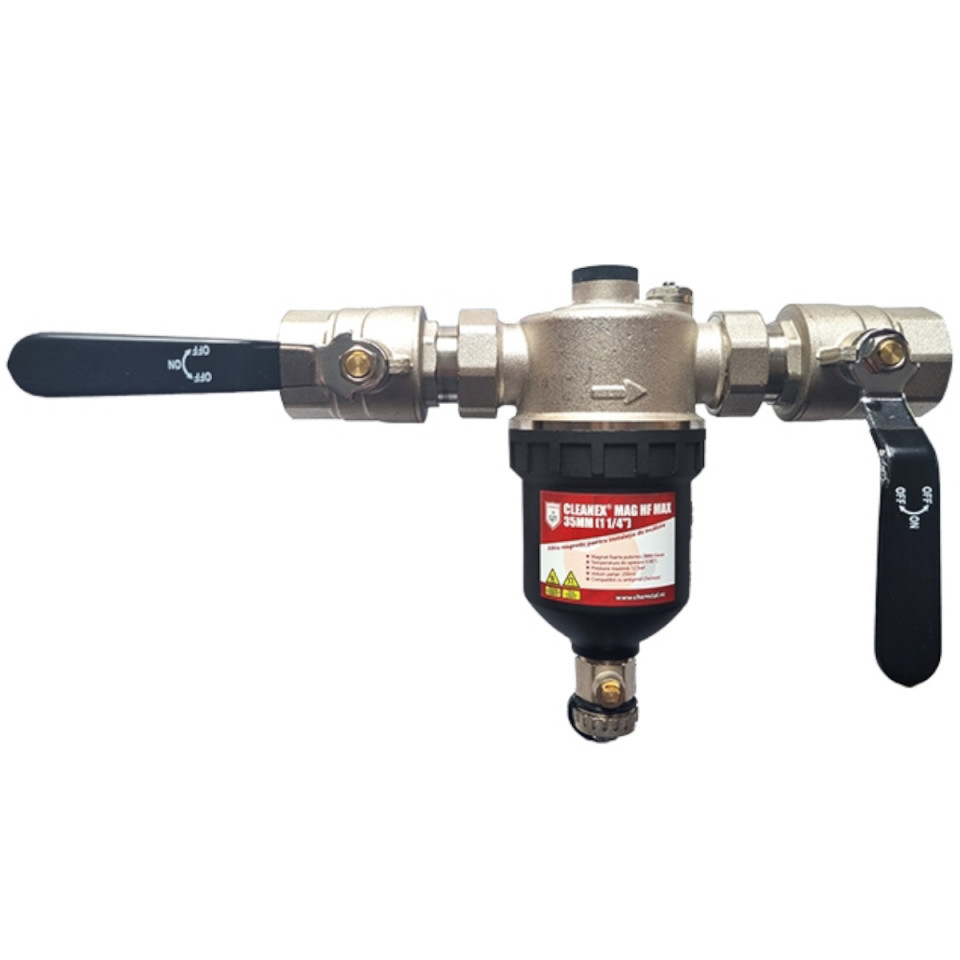

Magnetic filter Cleanex Mag HF Max 1 1/4" (35 mm).

The filter is used to protect heat pumps, heating plants and other air conditioning equipment.

The magnetic filter CLEANEX MAG HF MAX 1¼" (35 mm) can be installed on the return of the heating installation, in order to protect the equipment from mechanical particles existing in the circuit (solder residues, sand, chips from processing, etc. and from magnetite deposits from cast iron or steel pipes or radiators.

Filtration is unidirectional so that, during assembly, the arrow on the body of the equipment must be respected, which indicates the direction of entry/exit for the thermal fluid.

The package is prepared as standard for quick assembly on any type of pipe (copper, PPR, etc.), with the use of adapters specific to the material from which it is made.

The easy opening of the glass is done by depressurizing the filter, opening the air vent mounted on its body.

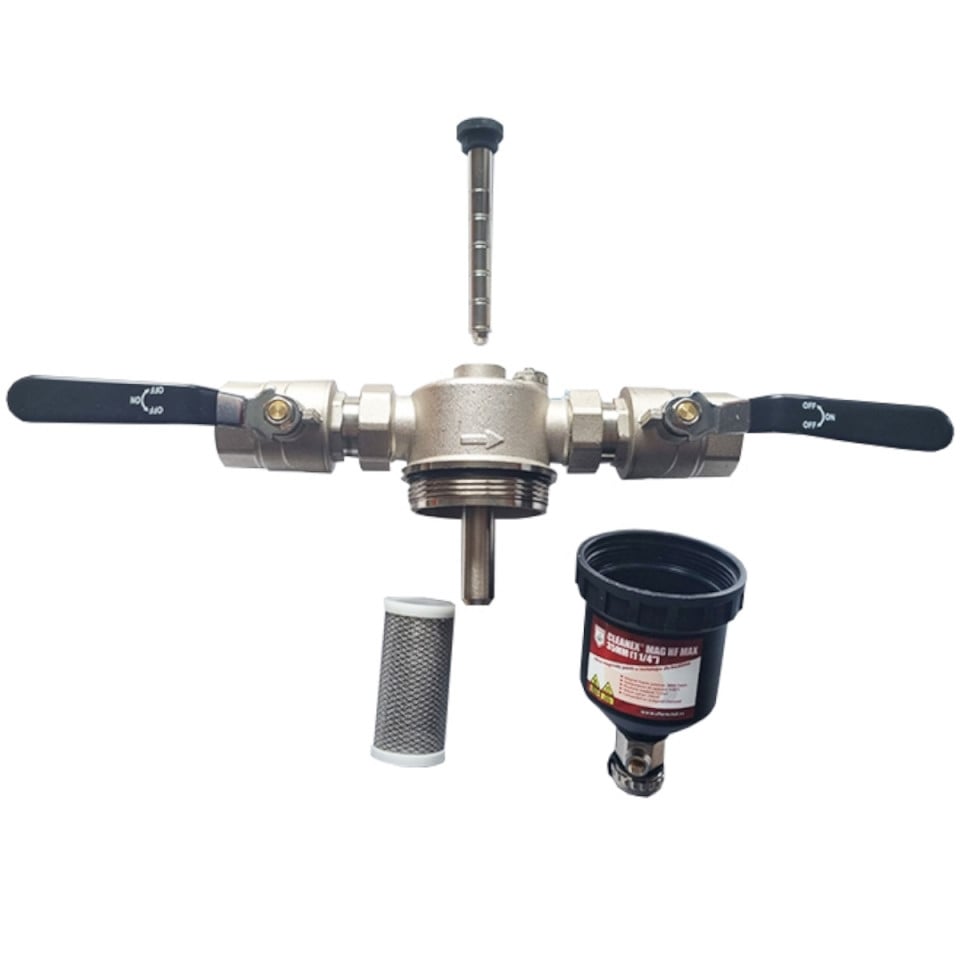

To quickly clean the filter, remove the magnet from the sheath and operate the purge valve several times.

BENEFITS:

► Retains magnetite and non-magnetic particles;
► Ensures the efficient operation of the heating system;
► Protects equipment from possible blockages due to deposits;
► Simple installation "in line" on thermal circuits;
► 1 1/4" brass ball isolation valves included for easy operation
► Equipped with an air vent and purge valve that allows for quick cleaning;
► The metal sheath of the magnet optimizes magnetite retention and reliability over time;
► The volume of the glass allows the dosing of protective additives;
► Compatible with thermotechnical antifreeze and other chemical solutions for installation protection;
