Condensing gas Boiler Condens 100 20 CH1

Description

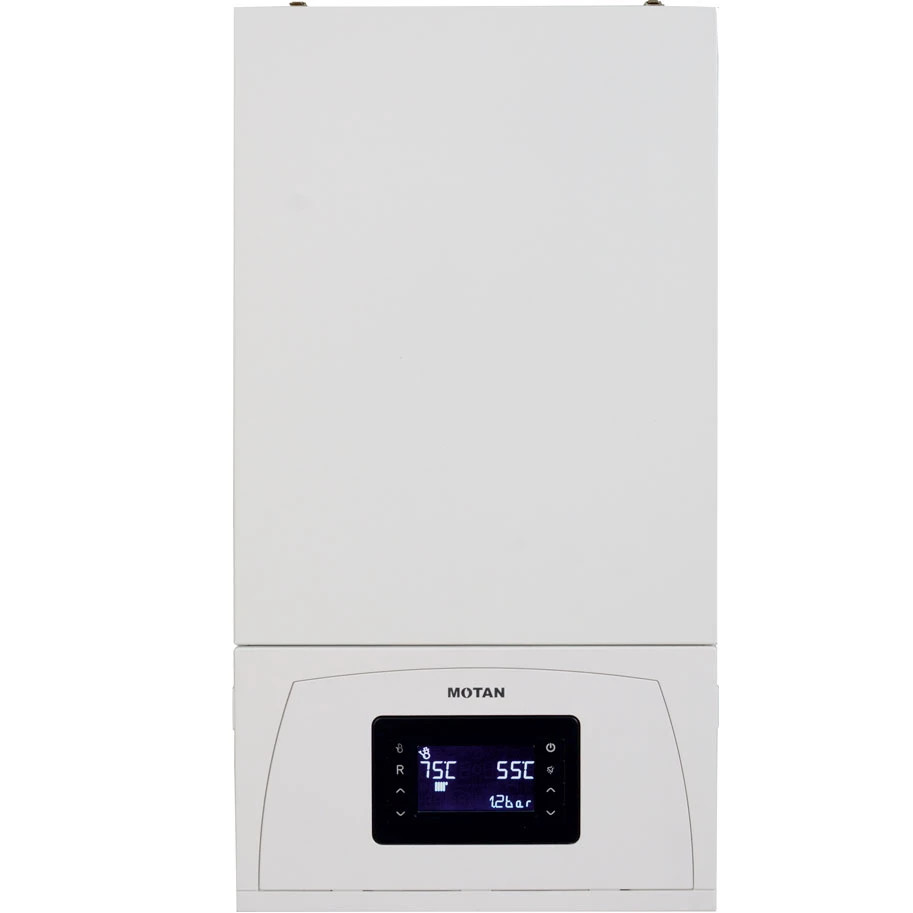

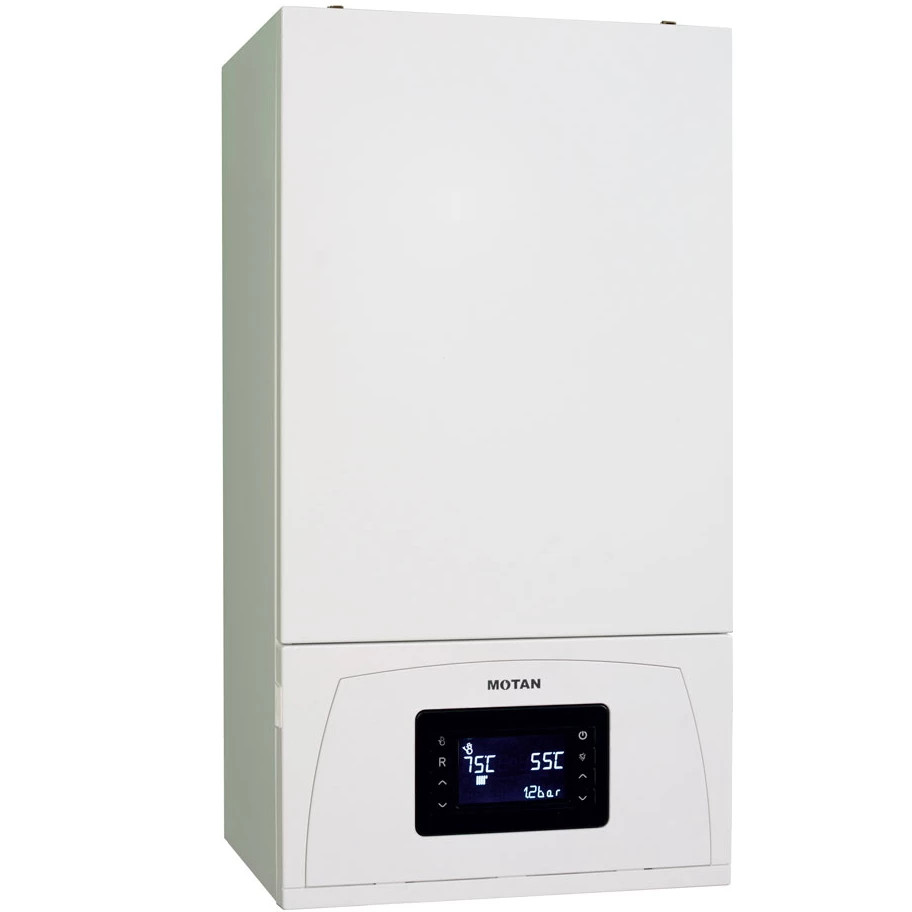

Condensing gas Boiler Motan Condens 100 20 CH1

(equipped with 3-way valve) for heating installations.

This Boiler is intended only for the heating installation. For the preparation of domestic hot water, a coiled Tank is required! Without a DHW Tank, it will NOT produce hot water!

Efficiency up to 105% and modulation ratio of 1:7;
Frendly environment - during operation it emits significantly reduced amounts of NOx, CO and CO2 - Class NOx 5;
Designed and built for maximum efficiency and economy in operation according to the latest EU legislative requirements - low energy pump;
The possibility of mounting in cascade;
Maximum efficiency: Efficiency class -4 stars **** (dir. 92/42/CEE);

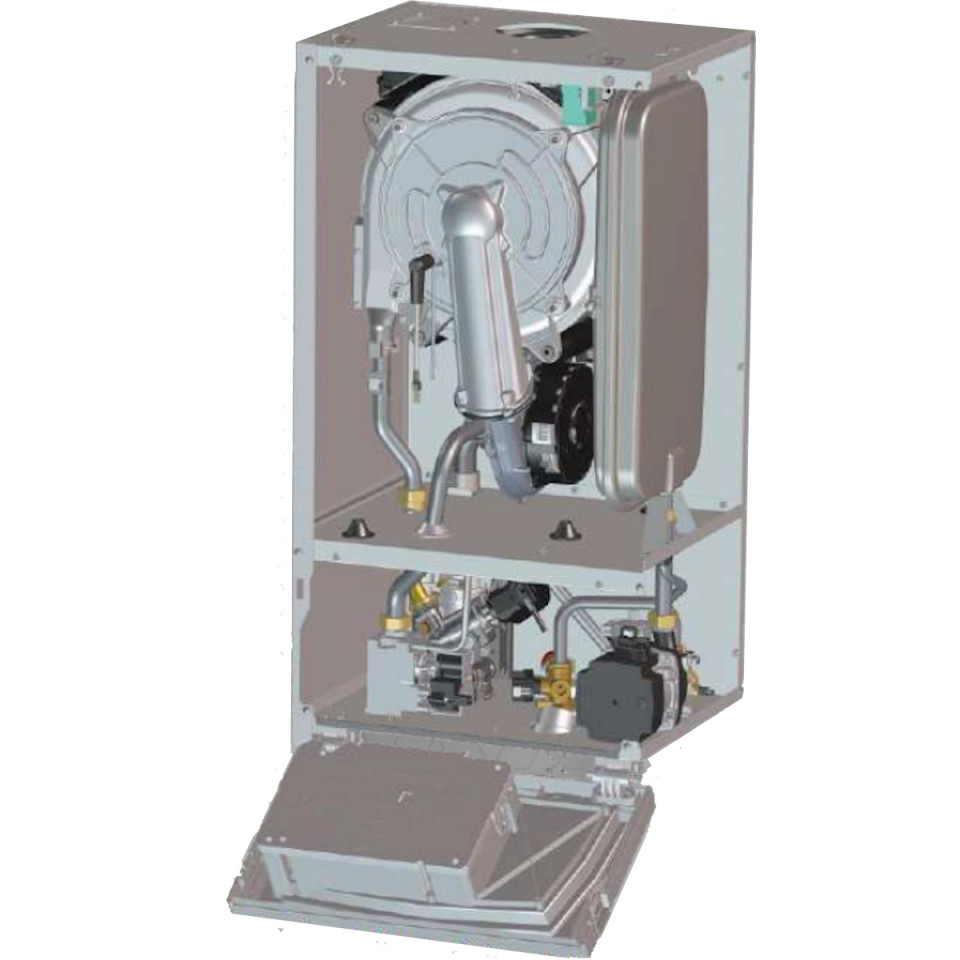

Main stainless steel heat exchanger CIRCOND VALMEX (Italy);
SIT gas valve (Italy);
Fan with built-in gas-air nozzle SIT (Italy).

Technical data

Usable gas type II2H (GN-G20)
Forced draft, fan with variable speed
Class Nox (G20-I2H, G24, G25.1, G31) 5
Seasonal energy yield class related to the heating of premises A
Maximum rated power (80/60ºC)(G20-I2H) 21 kW
Maximum rated power (50/30ºC - condensing) (G20-I2H) 22.5 kW
Thermal efficiency at nominal calorific power (80/60ºC) (G20-I2H) 97%
Thermal efficiency at nominal calorific power (50/30ºC - condensation) (G20-I2H) 105%
Energy efficient yield stars (dir. 92/42/CEE)
Maximum nominal fuel consumption ≈2.38 mc/h
Nominal gas supply pressure (G20-I2H) 20 mbar
The nominal maximum admissible natural gas supply pressure is 35 mbar
The pressure on the heating circuit 0.8÷3 bar
Heating temperature adjustment range 30÷80°C
Floor system temperature adjustment range 15÷45°C
Constructive characteristics: Depth 345 mm, Width 400 mm, Height 750 mm, Weight 35 kg
Primary heat exchanger capacity 1.4 l
Inlet, outlet Heating 3/4˝
Cold water inlet 1/2˝
Gas supply 3/4˝
Air/gas inlet/outlet pipe Coaxial D60/D100 min. 1m - max. 20 m
Flue gas connection length Dual D80/D80 min. 1m - max. 5 m
B23, B33, C13, C13X, C23, C23X, C33, C33X,C43, C43X,C53, C53X,C63, C63X,C73, C73X, C83, C83X, C93, C93X Exhaust type
Burnt gases - maximum temperature ≈56°C
Power supply ~230V/50 Hz
Nominal electrical power 81 W
IPX5D electrical protection class

* The Boiler with forced draft is delivered as standard with a 1m D60/D100 coaxial kit. The dual kit (and the adapter) is delivered as an accessory on request
