Fluvia T Pumpgroup PUSH-23-B-W

Description

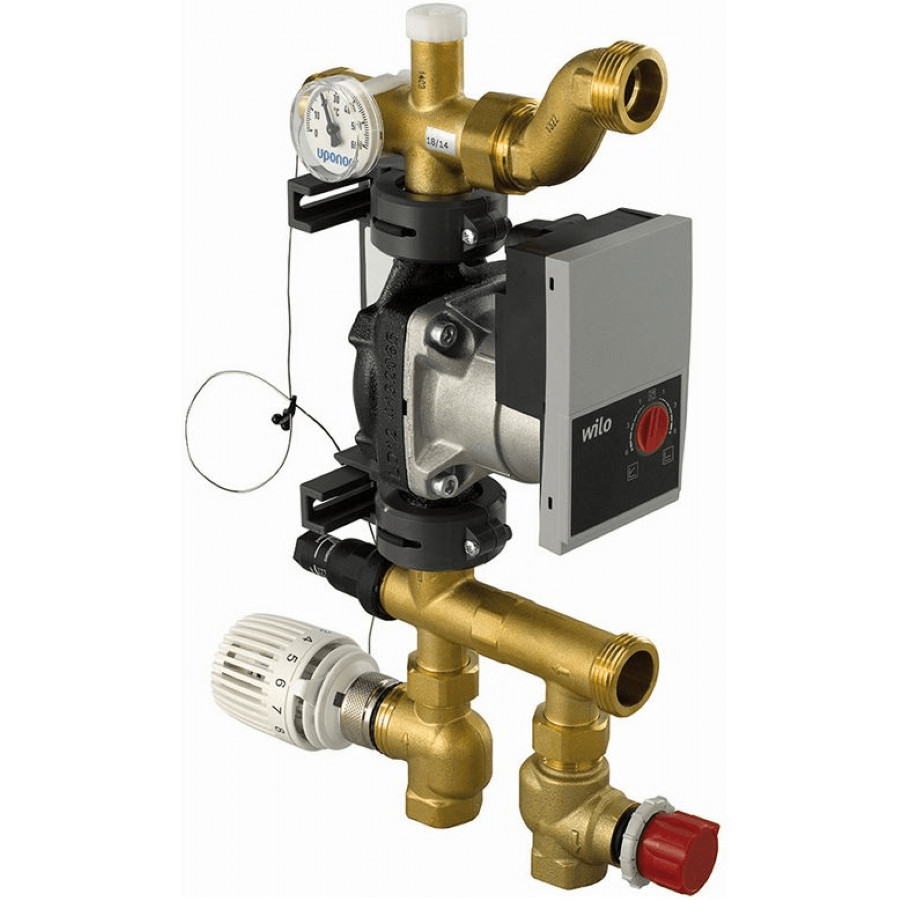

Uponor Fluvia T Pumpgroup PUSH-23-B-W

Pump group for direct connection to the underfloor heating distributor.

It ensures the reduction of temperature and the circulation of the heat agent in the systems in mixed systems (connected to the radiator column or fan coil units).

The pumping group contains:

Electronic pump WILO Yonos Para 15/6 RKA with low energy consumption Q: 0.1-2.5 m³/h, H: 6-2.4 m EEI 0.17
Capillary bulb thermostat with 20-55ºC adjustment, for gifting
- the temperature of the agent;
- thermostatic valve primary circuit: kvs 1.2 m³/h
- return balancing valve: kvs 2.7 m³/h
- excentric connection nipples 1"
Maximum expected floor power: 10 kW
Maximum supplied area: 120 -130 m2 (depending on the expected power per m2)
Maximum temperature on the primary circuit: 90°C
Maximum temperature on the secondary circuit: 55°C
Maximum pressure: 10 bar.
