Gas Condensing Boiler GB162-70 V2
Description

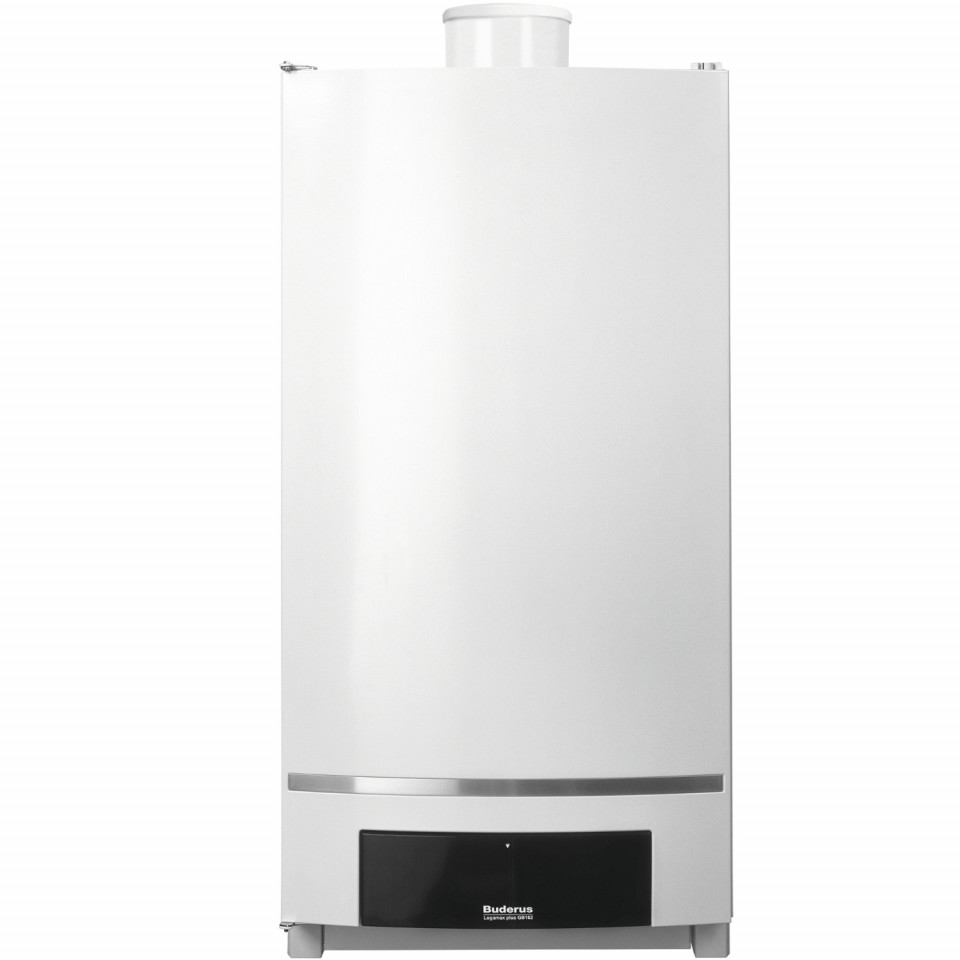

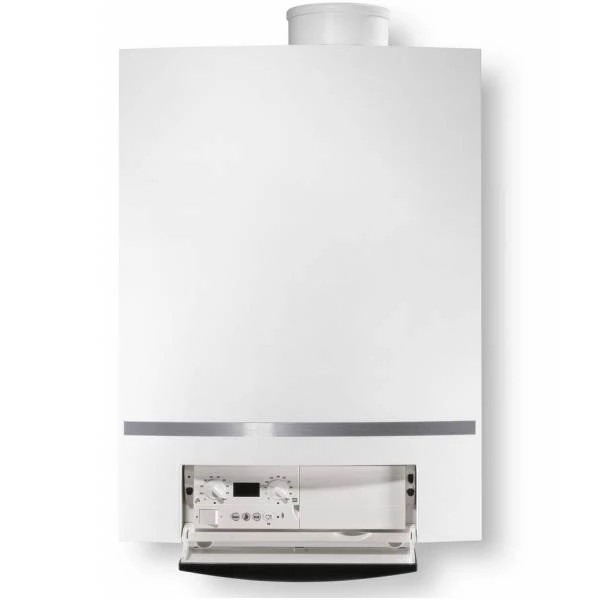

Gas Condensing Boiler Buderus GB162-70 V2 Logamax Plus
- Compact, lightweight and highly-efficienct
- Ideal for large homes and light commercial applications
- Efficiency up to 93% AFUE
- Cascade up to 8 boilers and common vent up to 4
- Ideal for commercial, light industrial, and larger residential homes
- Unique pump manifold kit with insulated cover
- Cascade kits includes boiler stands, low loss header, supply & return
- Can cascade up to 8 boilers and common vent up to 4
- Now approved for PP venting water heating, and circulator pump, each designed for the most common applications
- Whisper quiet operations, Low flue gas emissions
- No Minimum Flow Rate
- LPG conversion kit available

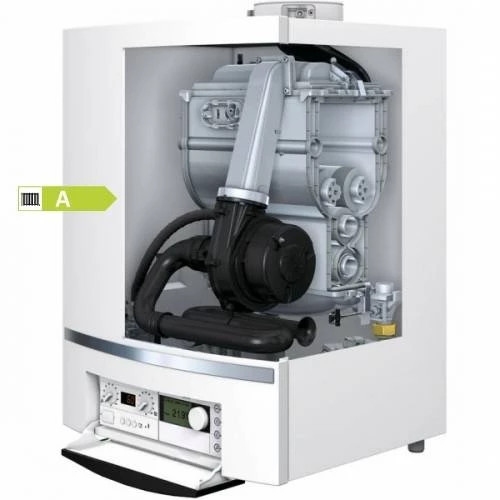

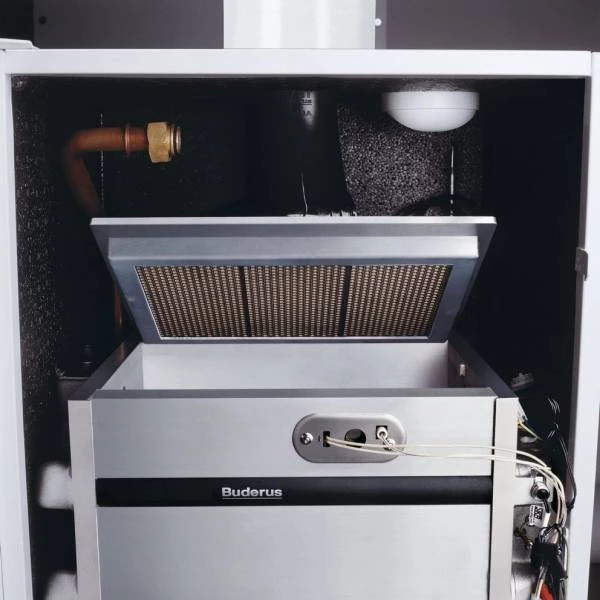

ALU-Plus Heat Exchanger
The Buderus GB162 wall-hung condensing boilers use an advanced, aluminum ALU-Plus heat exchanger design. This lightweight heat exchanger has a number of innovative features to prolong its life and increase the efficiency of the boiler. Fins on the outside of the aluminum tube increase the exterior surface area. This means more hot flue gas comes into contact with the heat exchanger to maximize heat transfer.
A spiral channel on the inside of the tube increases the internal surface area and creates turbulence, bringing more water into contact with the heating surface, also ensuring optimal heat transfer. The surface of the heat exchanger tubes are treated with a patented plasmapolymerization process that leaves the surface so smooth that no deposits can adhere to it. In addition to also helping maintain extremely high efficiency, this keeps the heat exchanger clean.
Achieve Greater Efficiencies
Energy efficiency is not just applicable to residential boilers, even though that is what we most often hear of. Boilers for commercial applications—from offices and public buildings to hospitals, schools and colleges, multi-family dwellings, and sports centers—also have a significant impact on our environment. Companies and owners of commercial properties are increasingly looking to improve or upgrade their boiler rooms to maximize energy efficiency, but also to minimize their carbon emissions and increase the value of the building. Cascade systems, a relatively new development in heating technology, achieve significant energy savings because their output can be precisely controlled to match the demand for heating. Each individual unit comes into operation only when the demand is high enough for an additional boiler in the cascade to fire. A cascade system adapts particularly well to seasonal temperature changes by allowing heat output to be precisely matched to heating demand whether in summer or winter.
Thermal power = 13-62.6 kW (flow / return 80 / 60oC); Thermal power = 14.3-69.5 kW (return / return 50 / 30oC)
Maximum permissible flow temperature = 90oC; Permissible working overpressure = 4 bar
Electric power consumed (the second value represents the pump consumption) = 155 + 140 W; degree of protection: IP X4 D
Standard efficiency: up to 109.4% (return / return 40 / 30oC)
Flue gas temperature = 68oC
Condensation water pH = 4.1
Flue gas connection (double, coaxial) = 110/160 mm
Dimensions: HxBxD = 980x520x465 mm; Weight = 70 kg
Flow / return connections = 1 1/2 "; Gas connection = 1"
