Heat Recovery Ventilation Unit Turbionaire Trend HRV Fan 150 WM

Turbionaire TREND HRV FAN 150 WM -   Heat Recovery Ventilation Unit, designed for contiuous ventilation, with reversible airflow (intake-extraction), equipped with ceramic heat exchanger, timer and humidity sensor.

The unit's airflow, shape and control method were designed to ensure maximum comfort in the room with an optimal speed of the circulated air.

Heat recovery efficiency of up to 90%.

Having a minimalist design and flexible orientation of the front panel (horizontal or vertical), it is suitable for residential and civil spaces such as: kitchens, living rooms, bedrooms, offices, hotel rooms, etc.

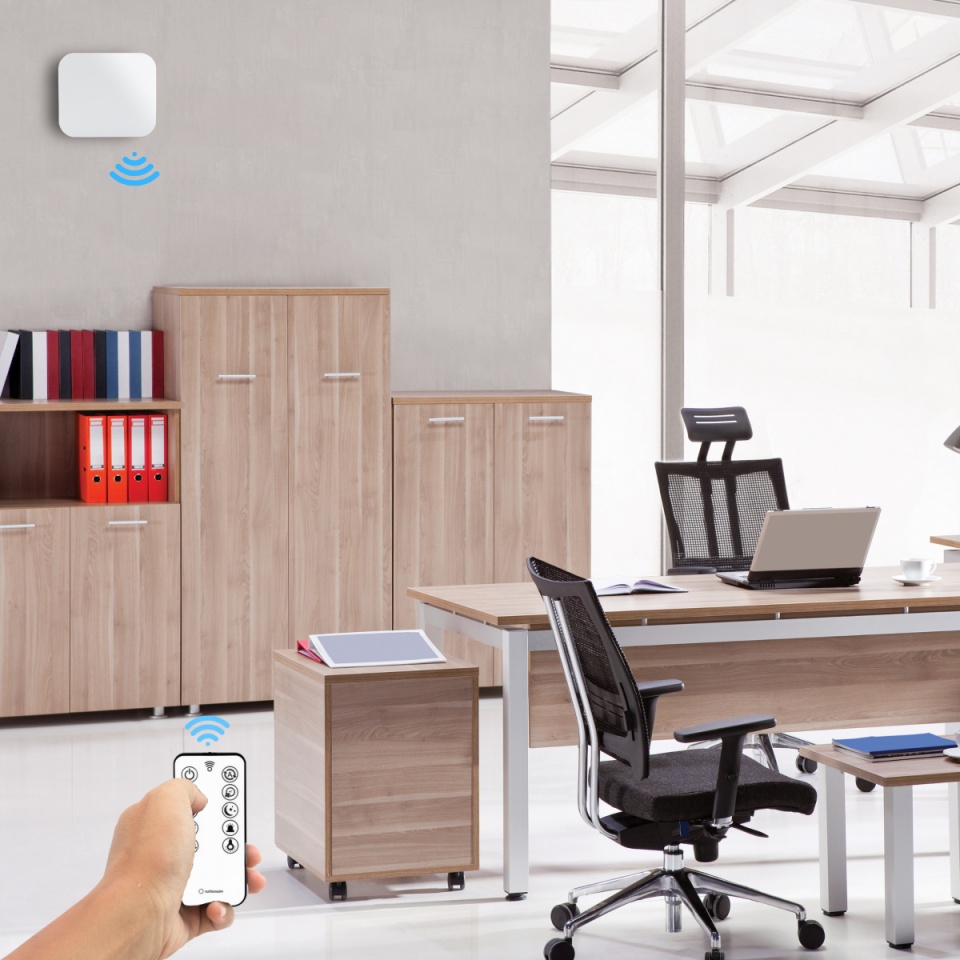

​Flexible use - with the help of the remote control you can control all the functions of the unit, either for each individual unit or for all installed units.

• For rooms with a surface area of 15-40 m²
• Ceramic Heat Exchanger, with Dust Filters
• Remote Control

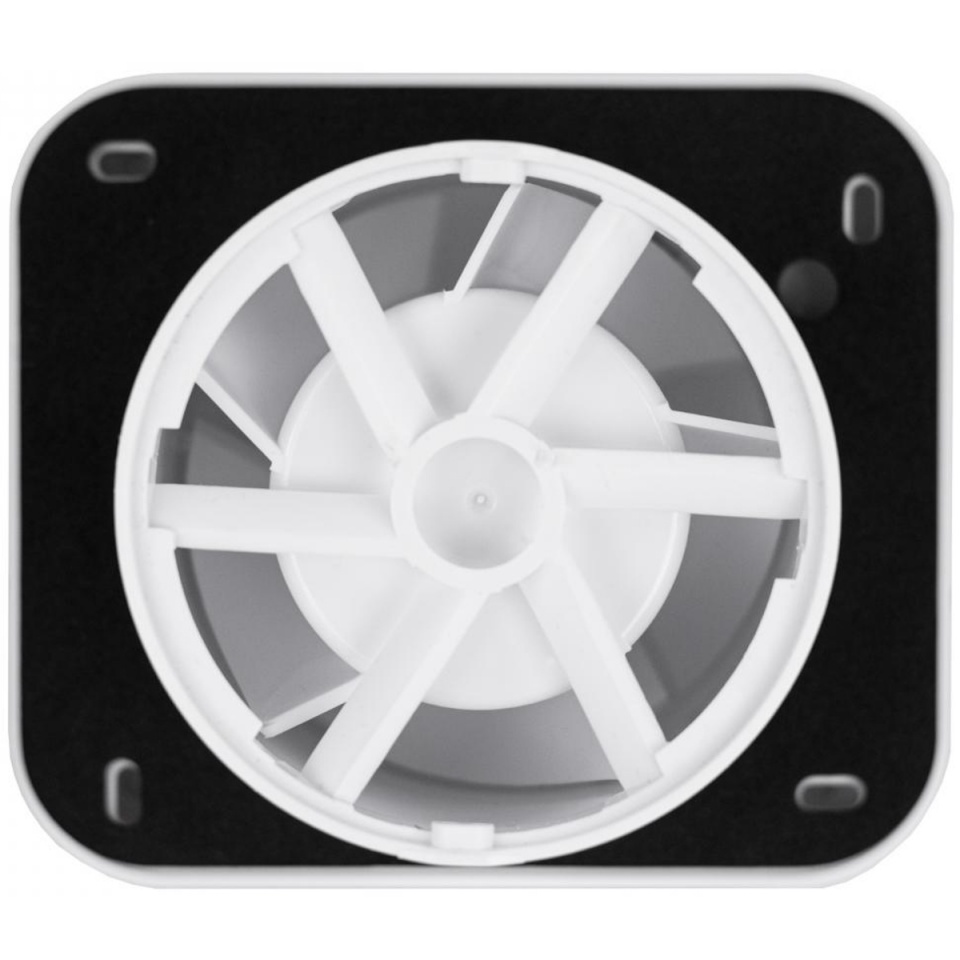

• Reversible Brushless DC  Motor
• Adjustable Humidity Sensor
• 8 speeds
• Adjustable Timer
• Sleep Mode
• Air Lock Cover Included
• ​Low Energy Consumption
• Low Noise Level​

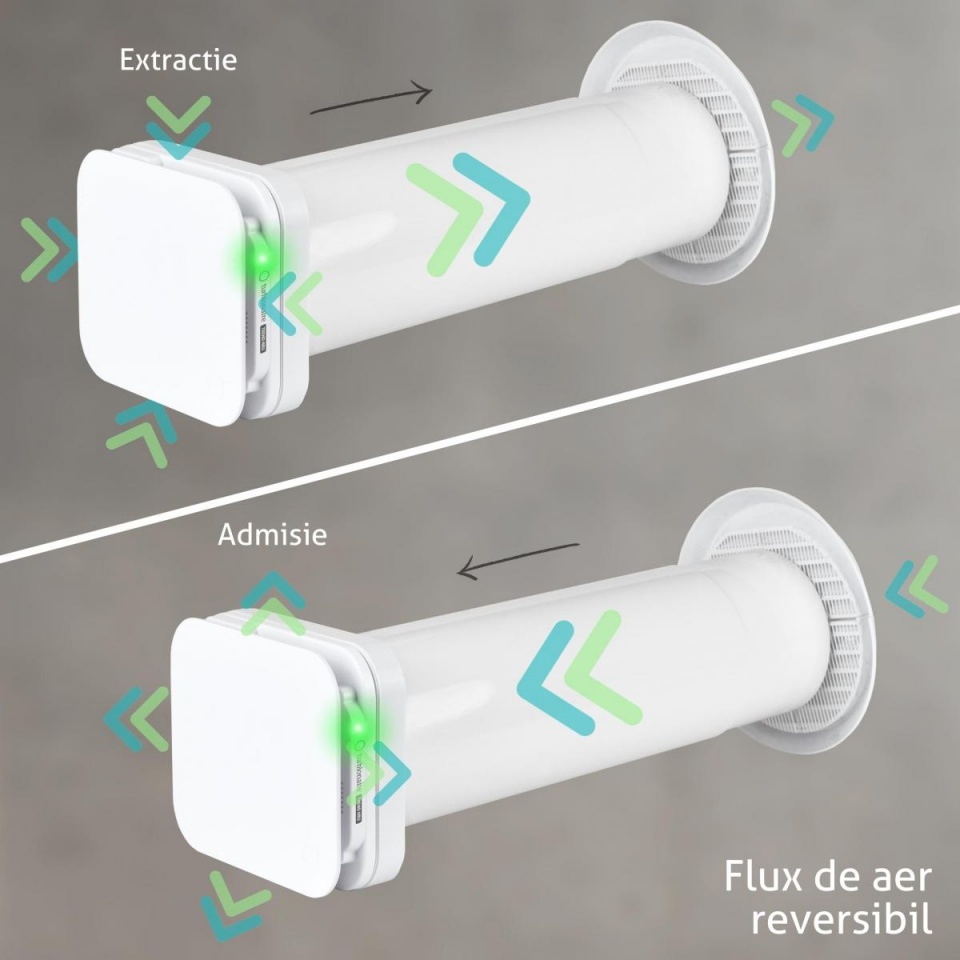

• Intake - Extraction Mode
• Extraction Mode
• AUTO Function

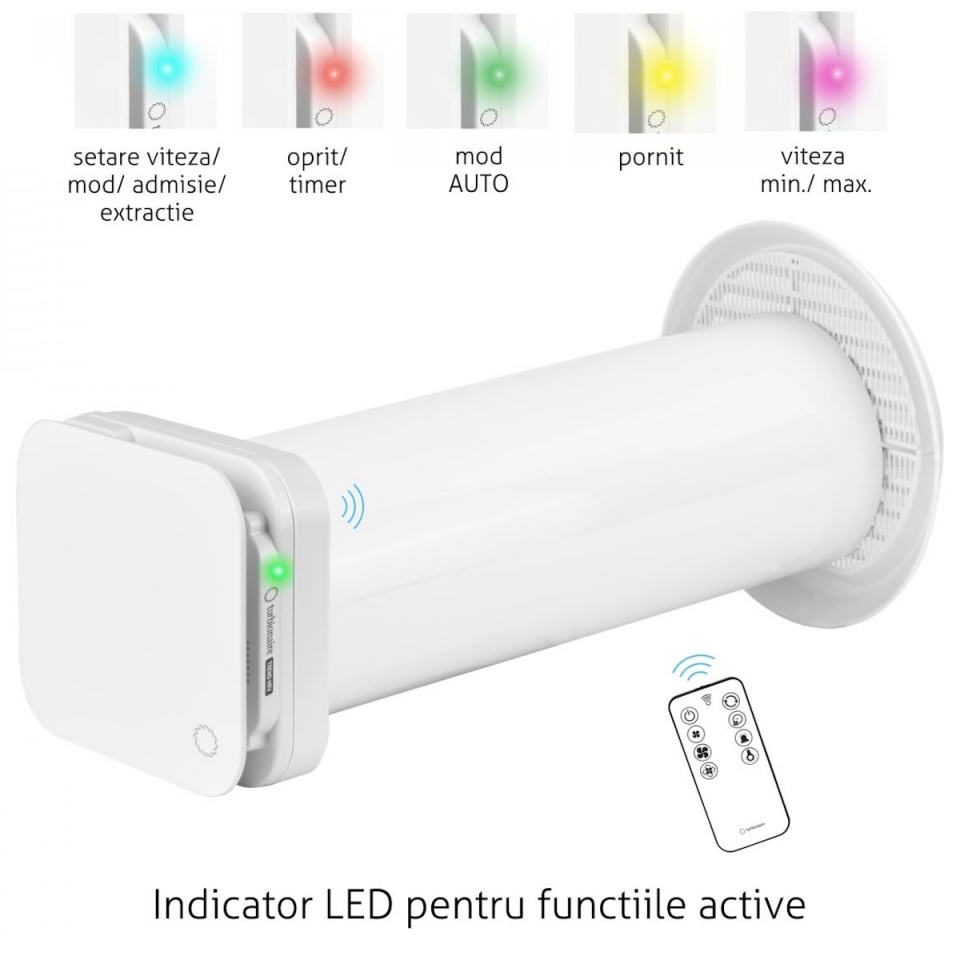

• Dimmable LED Indicator
• Diameter: 105 mm
• Expandable PVC Tube
• Outdoor Grille with Anti-insect Net and Inclined Blinds

Technical specification Trend HRV 150 WM

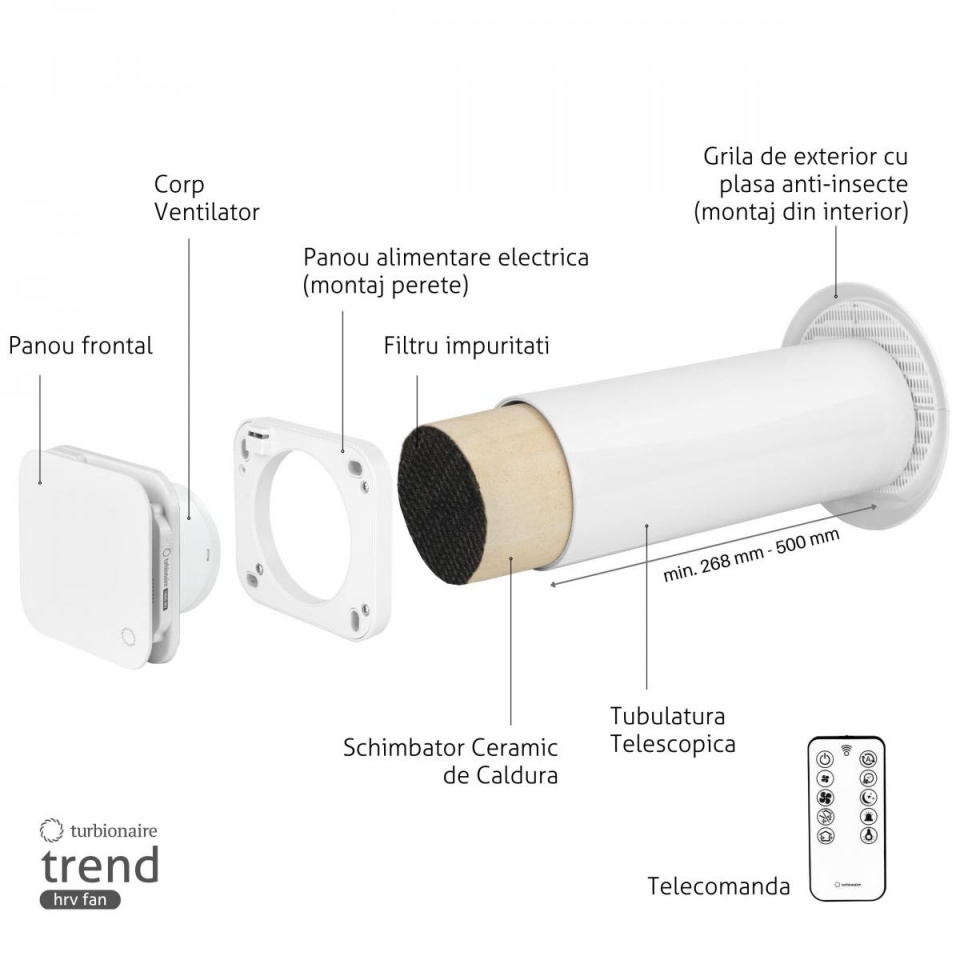

Construction details: Adjustable air duct, Natural air transfer blocking cover, Insect screen, Ceramic heat recovery module, External grille
Control functions
Silent mode
Automatic mode
Continuous ventilation
Adjusting LED light indicator
Humidity level setting
Control type: Remote control
Color: White, Finish: Matt
Orifice diameter 160 mm
Installation type: Wall
Main functions: Filtration, Heat recovery, Air exhaust, Air intake
Brushless DC ball bearing motor
Features: Auto Restart, Humidity sensor, Timer
Suitable Room Area (Min - Max) 15.0 - 30.0 m²
Uses: Residential or Commercial
Thickness wall 300 - 580 mm
Exhaust air flow (max) 16 - 45 m³/h
Ingress protection IPX4
Input Power (max) 6 W
Intake air flow (Min - Max) 10.0 - 30.0 m³/h
Measurable humidity range (Min - Max) 40 - 100%
Number of fan speeds 8
Number of motors 1
Sound power (Max) 34 dB(A)
Voltage and frequency 220-240 V / 50-60 Hz
Operating temperature range (Min - Max) -10 - +50°C
Nominal diameter 150 mm
Gross dimensions 35 x 22.6 x 19.3 cm
Gross weight 3.39 kg, Net weight 2.96 kg
