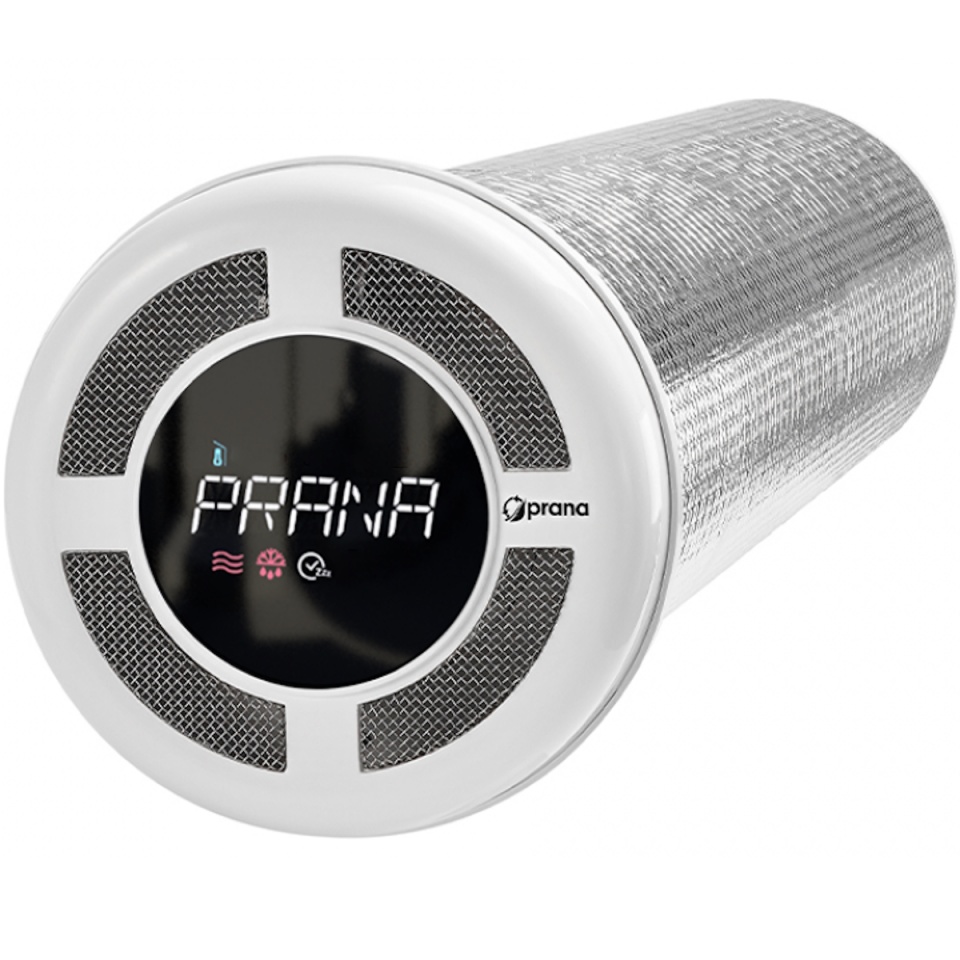

PRANA 200C Premium Plus Heat Recovery Unit – 140 m³/h (490mm Housing)

Name: PRANA 200C Premium Plus Heat Recovery Unit 140 m³/h | Termix
Brand: Prana
SKU: 200C490ERPPR+
Price: 4798.98 RON
Availability: InStock

Fresh Air and Maximum Energy Efficiency with PRANA 200C Premium Plus

The PRANA 200C Premium Plus decentralized heat recovery ventilation system, available on termix.ro, is a top-tier solution engineered for residential, commercial, and public spaces. Delivering an impressive airflow rate of up to 140 m³/h with a heat recovery efficiency of up to 93%, this system creates a healthy indoor climate while effectively eliminating excess humidity, dampness, mold, and airborne pollutants.

As the flagship model of the ErP line, the 200C Premium Plus comes equipped with an advanced smart sensor suite (CO2, VOC air quality, humidity, atmospheric pressure) and full Wi-Fi/Bluetooth connectivity.

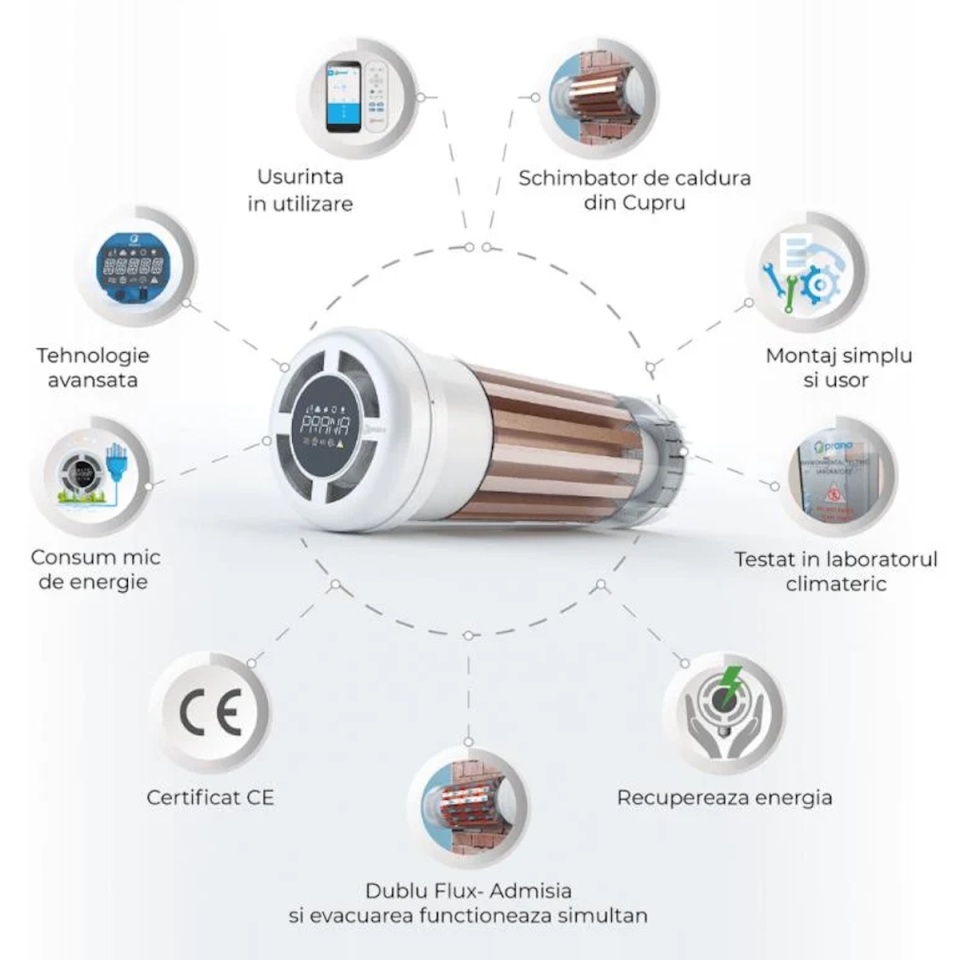

Key Benefits & Core Technologies

Antiseptic Copper Heat Exchanger: Pure copper acts as a natural antiseptic, preventing the proliferation of bacteria and viruses inside the unit while providing superior thermal conductivity.

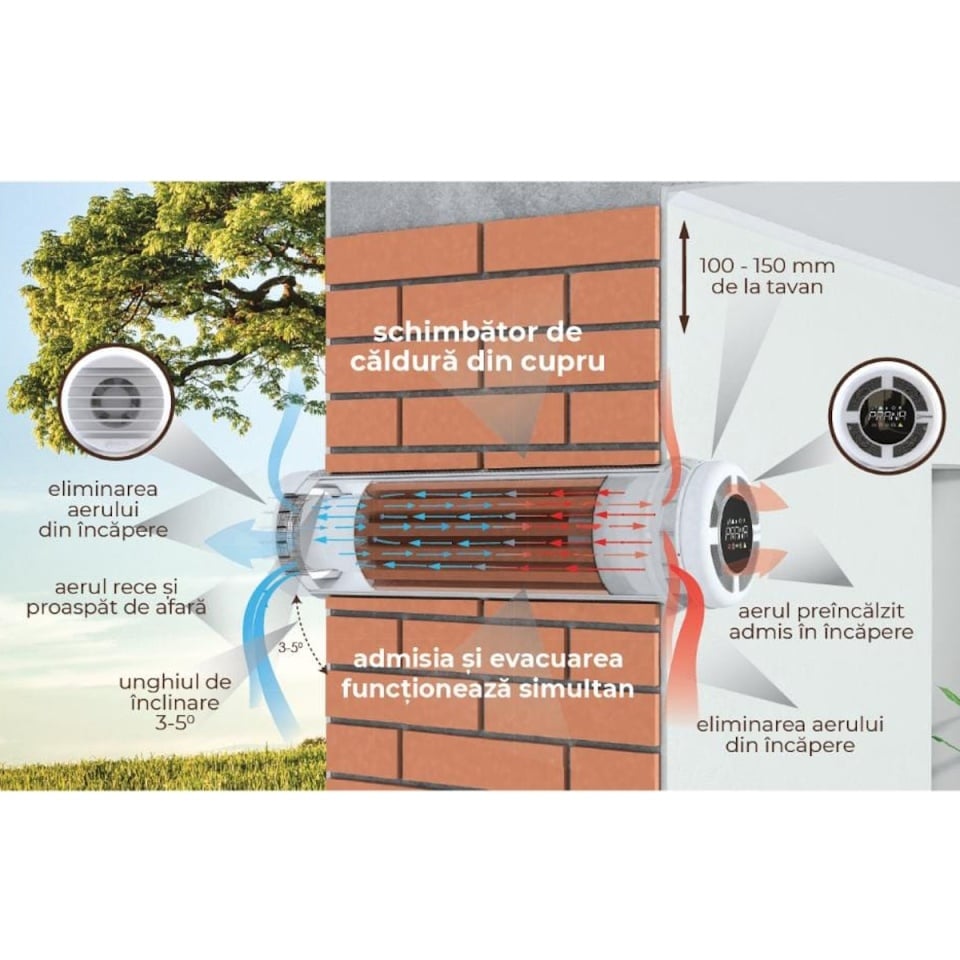

Simultaneous Dual Flow Ventilation: Unlike single-pipe alternating systems, PRANA continuously brings in fresh outdoor air and exhausts stale indoor air at the same time without cross-contaminating the air streams.
Smart Air Quality Monitoring:
- CO2 Sensor: Continuously monitors carbon dioxide levels and automatically adjusts ventilation speed.
- VOC Sensor (Volatile Organic Compounds): Detects unpleasant odors, smoke, and harmful chemical vapors.
- Humidity & Atmospheric Pressure Sensors: Prevents condensation build-up and maintains optimal indoor comfort.

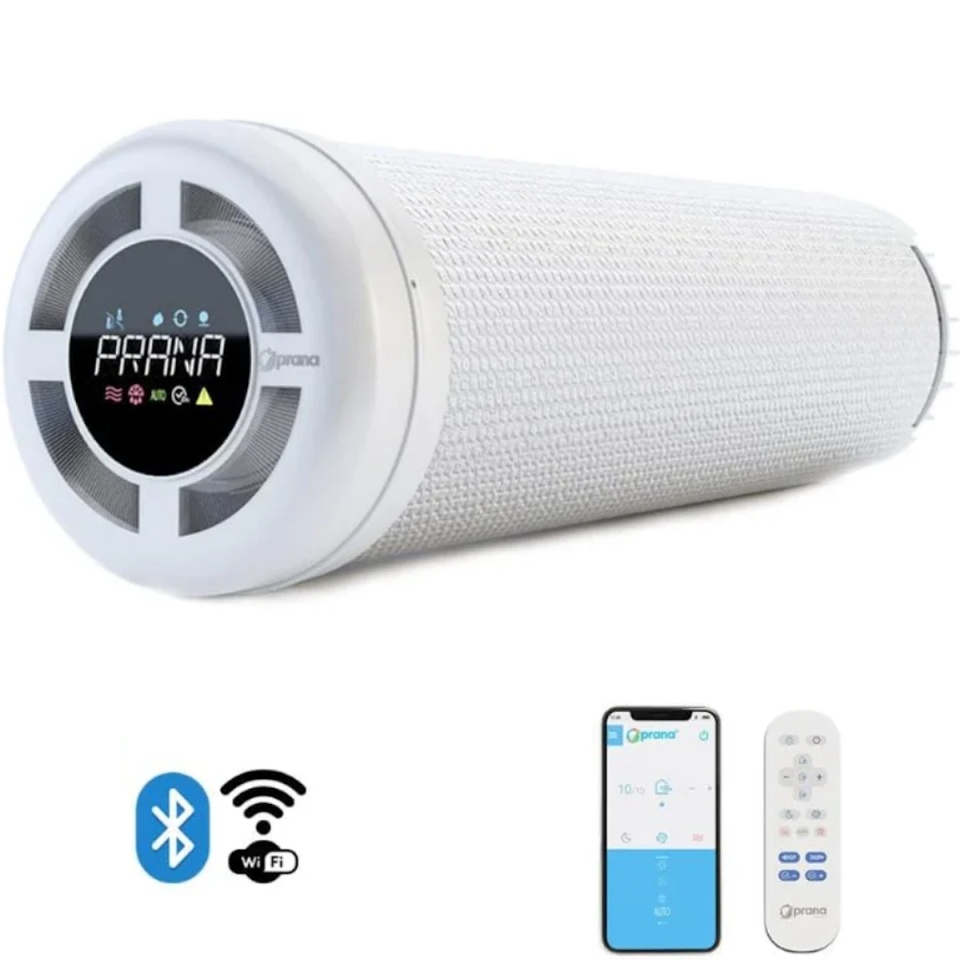

Remote Control (Wi-Fi & Bluetooth): Effortlessly control the system from your smartphone via the dedicated mobile app to schedule operations, check real-time air quality, or enable AUTO mode.
Energy Class A Efficiency: Extremely low power consumption ranging between 4W and 35W during standard operation.
Compact In-Wall Installation: Mounts directly through an exterior wall (490mm housing length) without the need for unsightly ventilation ductwork.

PRANA 200C Premium Plus Technical Specifications

Technical Feature	Specification / Detail
Brand / Model	PRANA 200C Premium Plus (ErP)
Airflow Rate (Supply / Exhaust)	Up to 140 m³/h
Heat Recovery Efficiency	Up to 93%
Housing Diameter	200 mm
Mounting Hole Diameter	min. 212 mm – 220 mm
Standard Housing Length	490 mm (customizable for thicker walls)
Heat Exchanger Material	Antiseptic Copper
Power Consumption	4 W – 35 W
Pre-heating / De-frosting Function	Yes (56 W additional consumption)
Unit Weight (Net / Gross)	Approx. 5.0 kg (Net) / 6.5 – 7.0 kg (Gross/Packed)
Integrated Sensors	CO2, VOC, Humidity, Atmospheric Pressure, Temperature
Control Options	IR Remote Control, Wi-Fi, Bluetooth, Mobile App
Energy Efficiency Class	Class A
Recommended Coverage Area	Up to 60 m² (residential spaces)

Frequently Asked Questions (FAQ)

When should I choose the PRANA 200C Premium Plus model?

This model is ideal for spacious living rooms, master bedrooms, offices, commercial spaces, or classrooms requiring high airflow rates (140 m³/h) along with full automated control driven by real-time CO2 and VOC air quality sensors.

What wall thickness is required for the 490mm version?

The standard 490mm housing model sold by Termix requires a minimum wall thickness of 490 mm. For thinner or thicker walls, custom length units can be ordered upon request.

How does AUTO mode work?

In AUTO mode, the unit continuously reads data from the built-in CO2, VOC, and humidity sensors and automatically adjusts the fan speed to maintain fresh indoor air while optimizing energy usage.
