Description
Prana 150 Premium Plus Decentralized Heat Recovery Ventilator (70 m³/h, 450 mm)
Ensure continuous, fresh, and thermally optimized indoor air with the Prana 150 Premium Plus Heat Recovery Ventilator (airflow capacity up to 70 m³/h, standard tube length 450 mm), available at Termix.ro. Designed for residential and commercial spaces, this intelligent decentralized ventilation system eliminates excess humidity, mold risks, and stale air without compromising room temperature or wasting thermal energy.
The top-tier Premium Plus series comes fully equipped with a high-efficiency copper heat exchanger and a comprehensive suite of automated sensors for real-time indoor air quality monitoring and adjustment.

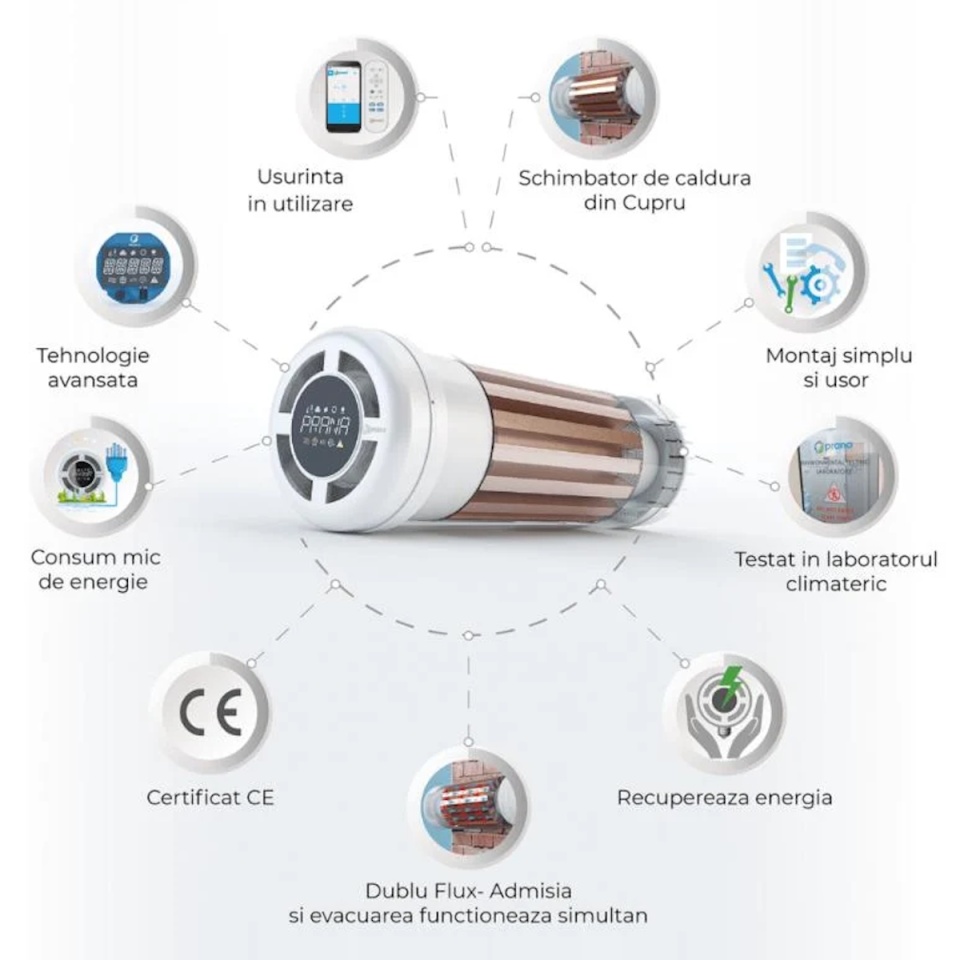

Key Features & Smart Capabilities
-
Antiseptic Copper Heat Exchanger: High-purity copper naturally prevents bacterial and mold growth inside the device while delivering exceptional thermal transfer with heat recovery efficiency up to 95%.
-
Advanced Sensor Suite (Premium Plus): Built-in intelligent sensors monitor CO₂ levels, humidity, Total Volatile Organic Compounds (TVOC/air quality), atmospheric pressure, and indoor/outdoor temperatures.
-
Fully Automated AUTO Mode: Dynamically adjusts intake and exhaust airflow based on live sensor readings to maintain optimal air quality with minimal energy consumption.
-
Simultaneous Supply & Extract Airflow: Dual counter-flowing streams operate at the same time through separate air channels without mixing, providing constant fresh air exchange.
-

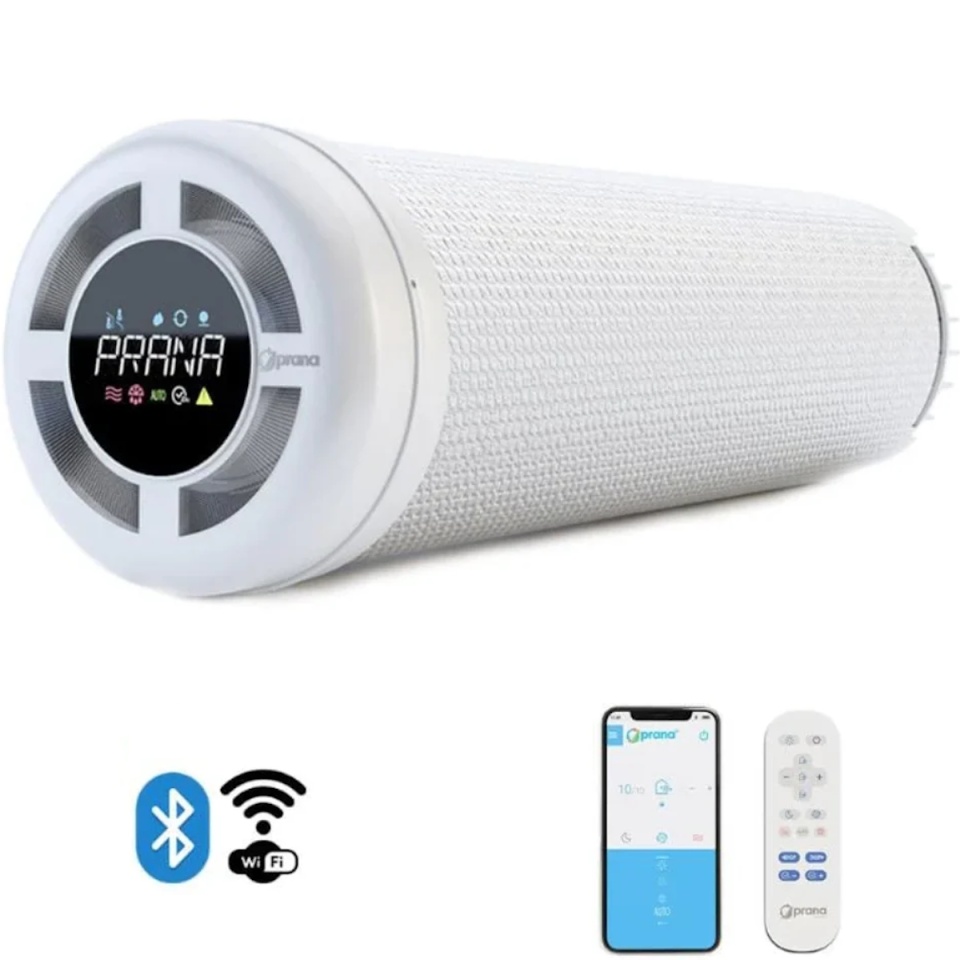

Smart Wireless Control: Effortlessly manage modes, schedules, and live metrics via the Prana Online mobile app (Wi-Fi & Bluetooth) or the included handheld remote control.
-
Energy-Efficient Operation: Low power consumption starting at just 3.2 W, with an integrated mini-reheater and defrost function for extreme winter weather.
Technical Specifications
| Parameter | Specification |
| Brand / Model | Prana / 150 Premium Plus |
| System Type | Decentralized Heat Recovery Ventilator (HRV) |
| Duct Diameter | 160 mm (Required wall opening ~162 mm) |
| Standard Tube Length | 450 mm |
| Airflow Volume (Supply / Extract) | Up to 70 m³/h |
| Heat Recovery Efficiency | Up to 95% |
| Heat Exchanger Material | High-Purity Copper |
| Power Consumption | 3.2 W – 15 W (up to 30 W during active defrost mode) |
| Integrated Sensors | CO₂, Humidity, TVOC (Air Quality), Temperature, Atmospheric Pressure |
| Control System | Wi-Fi, Bluetooth, Mobile App (Prana Online), Remote Control |
| Recommended Coverage | Up to 60 m² (depending on room layout) |
| Noise Level | 13 – 40 dB(A) |

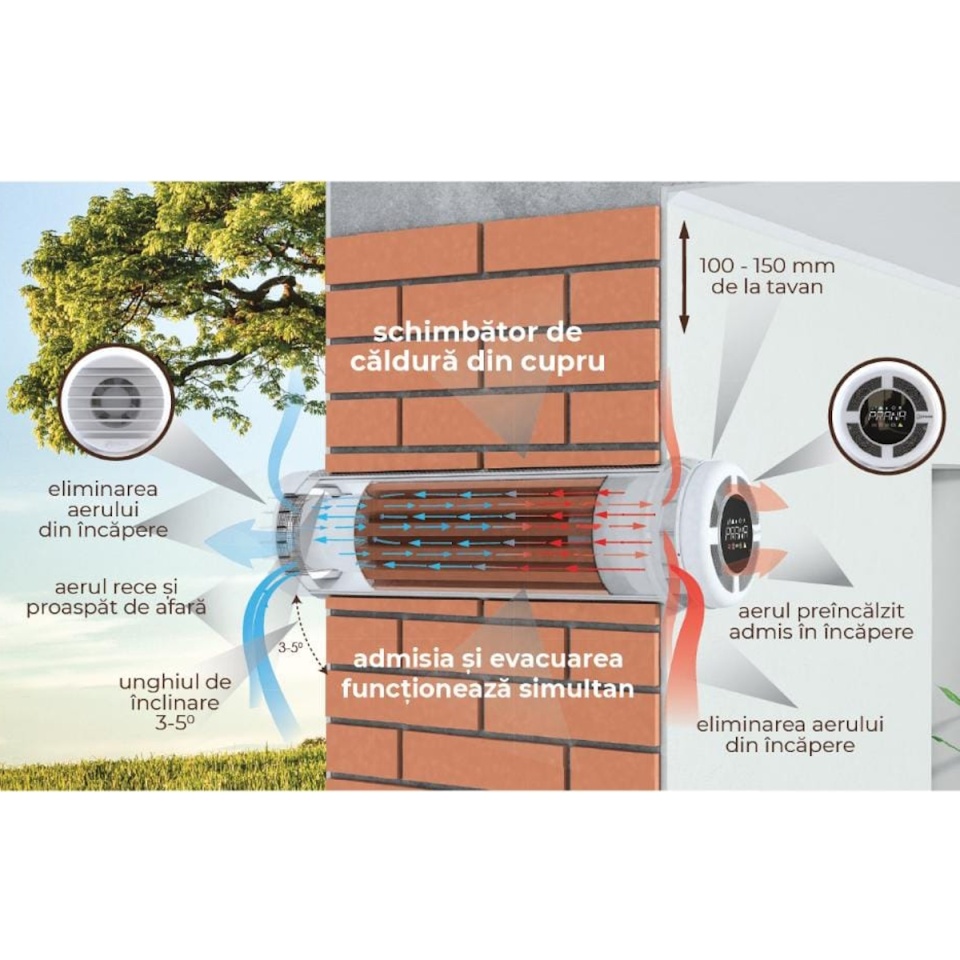

Installation Guidelines
-
Through-Wall Mounting: Installed in a cylindrical hole through an exterior wall (recommended core drilling diameter ~162 mm).
-
Outward Slope: Position the mounting tube with a slight downward slope (1°–2°) toward the outside to allow proper condensate drainage.
-
Power Connection: Connect to a standard 230V / 50Hz mains power supply.
Frequently Asked Questions (FAQ)
What sets the Prana 150 Premium Plus apart from standard models?
The Premium Plus version features a complete sensor array (CO₂, TVOC, humidity, atmospheric pressure, and temperature) that enables full autonomous operation in smart AUTO mode.
Why is a copper heat exchanger superior?
Copper possesses natural antimicrobial properties that prevent bacteria, virus, and mold accumulation inside the ventilation channels while ensuring maximum thermal efficiency.
