Home Controls Access Point EKRACPUR1PA

Name: Home Controls Access Point EKRACPUR1PA
Brand: Daikin
SKU: EKRACPUR1PA
Price: 574.21 RON
Availability: InStock

RON 574^.21 (VAT Included)

RON 474^.55 (VAT excluded)

Delivery costs are not included

Buy now, pay later from RON 13.93 / Month Details

How can we help you?

Call us: +40740015767 (Mo-Fr 9-18)

Ask for details

Send us a message

Description

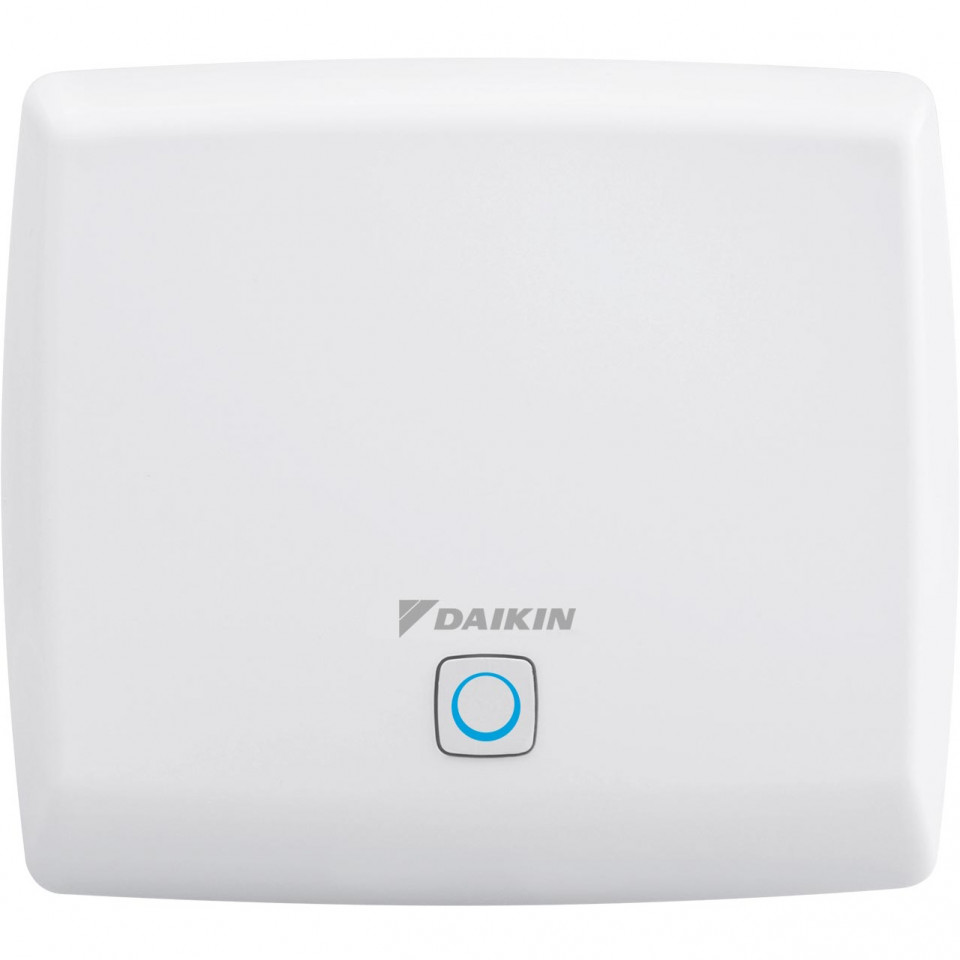

Daikin Home Controls Access Point EKRACPUR1PA

This accessory is part of the DHC ecosystem and communicates with a dedicated wireless connection.

All accessories of the system can be configured comfortably and individually via the ONECTA app. The available functions provided by the DHC ecosystem in combination with other accessories are described in the DHC Application Guide.

The DHC Access Point connects your smartphone via the ONECTA cloud with all DHC accessories. It transmits configuration and operating commands from the app to the DHC accessories.

Package contents

1 Daikin Home Controls Access Point
1 Plug-in mains adapter
1 Network cable 1,5 m
2 Screws
2 Plugs
1 Installation and operation manual.

Technical specifications

Supply voltage
Plug-in mains adapter (input): 100 V-240 V/50 Hz
Power consumption
plug-in mains adapter: 2.5 W max.
Supply voltage: 5 VDC
Current consumption: 500 mA max.
Standby power consumption: 1.1 W
Degree of protection: IP20
Ambient temperature: 5 to 35 °C
Dimensions (W x H x D): 118 x 104 x 26 mm
Weight: 153 g
Radio frequency band:
F1: 868.0-868.6 MHz
F2: 869.4-869.65 MHz
Maxium radiated power: 10 dBm max.
Receiver category: SRD category 2
Typ. open area RF range: 400 m
Duty cycle:
F1: < 1 % per h
F2: < 10 % per h
Network: 10/100 MBit/s, Auto-MDIX
