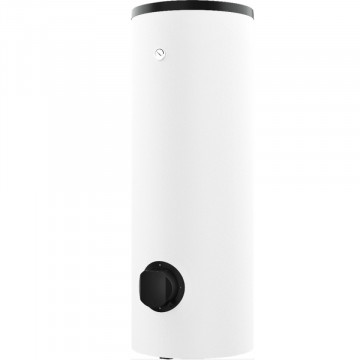

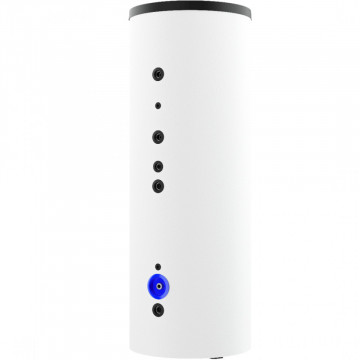

Floor-standing indirect cylinder with double coil Ariston BC2S 300
- ank protection with exclusive titanium-based eanmel treatment at 850˚C
- Double coil with high surface to couple with fossil or renewable energies
- Equipped for recirculation
- Upper flange with integrated anode and sensor sheath
- 110 mm front inspection flange
- Magnesium anode
- Adjustable support feet
- 3 kW electrical integration kit (for 200 and 300 liters models) or 6 kW available on request
- Ring nut for electrical kit insertion (for 300 and 450 liters model)
Technical Data
Capacity 300 liters
Coil exchange surface (Upper/Lower Coil) 0,8 1,3 m²
Max absorbed power (Upper/Lower Coil) 27,3 36,0 kW
DHW Production
ΔT=30°C (Upper/Lower Coil) 671 885 l/h
ΔT=45°C (Upper/Lower Coil) 497 688 l/h
Pressure loss trought coil (Upper/Lower Coil) 1,3 10,4 mbar
Max working pressure 10 bar
Heat dispersion 1,9 kWh/24h
Cooling costant 0,13 wh/l k j
Max working temperature 90°C
Net weight 135 kg
Details
SKU
3070617
Categories
Weight
107 kg
Brand
Physical Characteristics
Volume
201-500 liters
Material
Steel
Colour
White
DHW Tank Type
with 2 Coils
