Indirect Cylinder with double Coil BC2S 450

Description

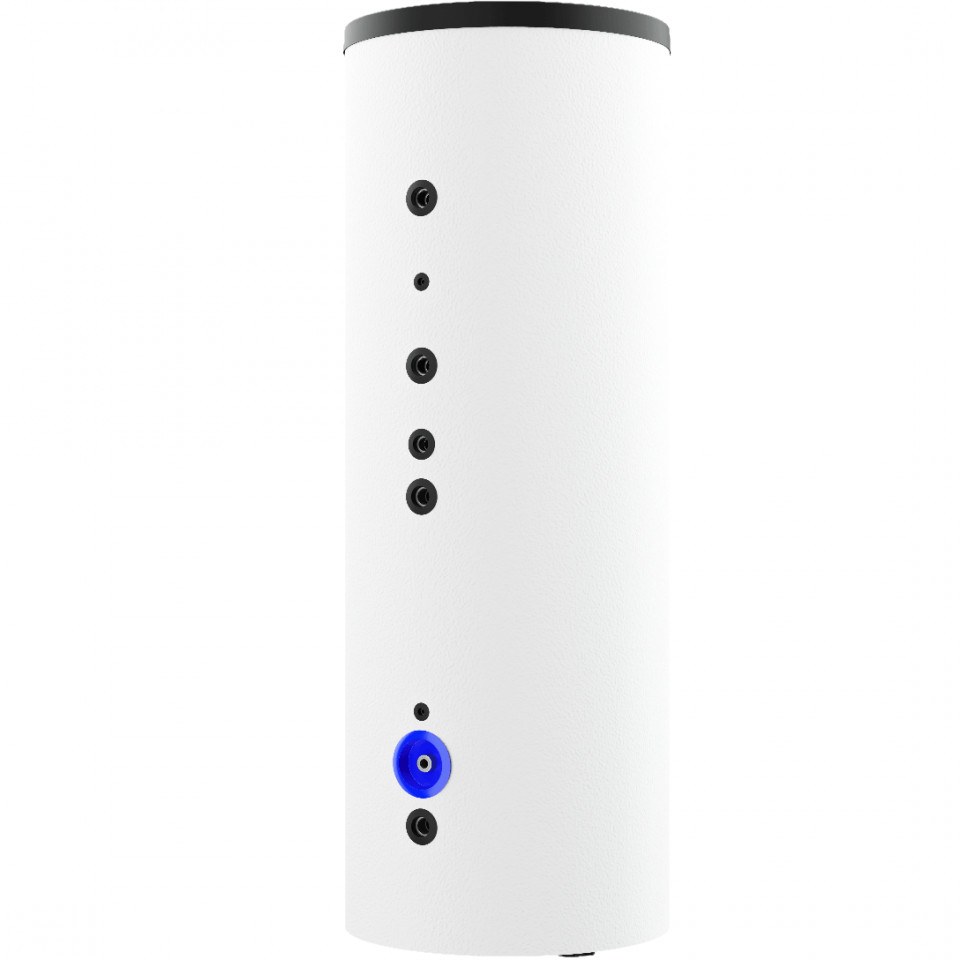

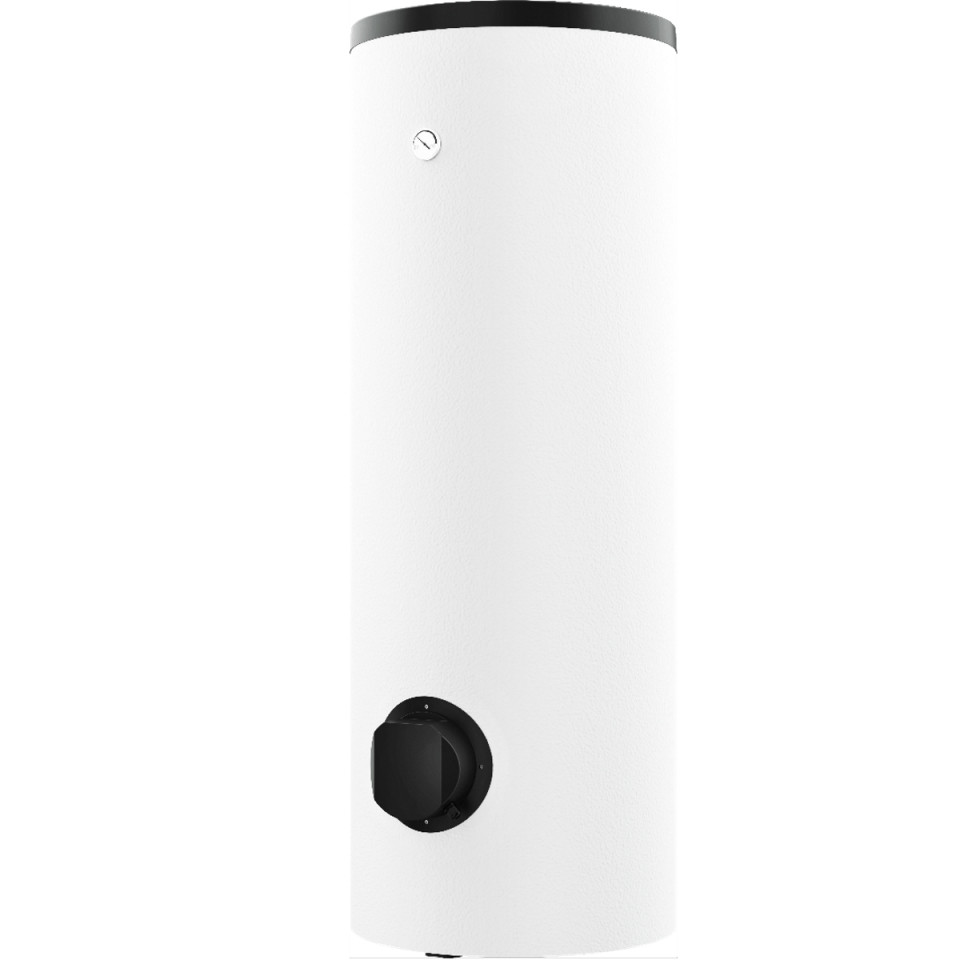

Floor-standing indirect cylinder with double coil Ariston BC2S 450

• ank protection with exclusive titanium-based eanmel treatment at 850˚C
• Double coil with high surface to couple with fossil or renewable energies
• Equipped for recirculation
• Upper flange with integrated anode and sensor sheath
• 110 mm front inspection flange
• Magnesium anode
• Adjustable support feet
• 3 kW electrical integration kit (for 200 and 300 liters models) or 6 kW available on request
• Ring nut for electrical kit insertion (for 300 and 450 liters model)

Technical Data

Capacity 450 liters
Coil exchange surface (Upper/Lower Coil) 1 1,6 m²
Max absorbed power (Upper/Lower Coil) 30,8 43,0 kW
DHW Production
ΔT=30°C (Upper/Lower Coil) 757 1057 l/h
ΔT=45°C (Upper/Lower Coil) 589 925 l/h
Pressure loss trought coil (Upper/Lower Coil) 1,6 13,0 mbar
Max working pressure 10 bar
Heat dispersion 2,1 kWh/24h
Cooling costant 0,1 wh/l k j
Max working temperature 90°C
Net weight 151 kg
