Indirect Cylinder with Coil BC1S 300

Description

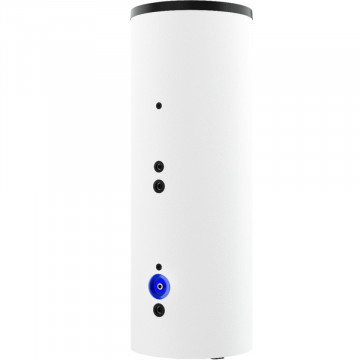

Floor-standing indirect cylinder with coil Ariston BC1S 300

• Tank protection with exclusive titanium-based eanmel treatment at 850˚C
• Single-coil, folded-down for uniform heating of the tank
• Equipped for recirculation
• Upper flange with integrated anode and sensor sheath
• 110 mm front inspection flange
• Magnesium anode
• Adjustable support feet
• 3 kW electrical integration kit (for 200 and 300 liters models) or 6 kW available on request
• Ring nut for electrical kit insertion

Technical Data

Capacity 300 liters
Coil exchange surface 1,3 m2
Max absorbed power 36 kW
Warming time 36 min.
DHW Production
ΔT=30°C 885 l/h
ΔT=45°C 688 l/h
Pressure loss trought coil 10,4 mbar
Max working pressure 10 bar
Heat dispersion 1,9 kWh/24h
Cooling costant 0,14 wh/l k J
Max working temperature 90°C
Net weight 135 kg
