Indirect Cylinder with Coil BC1S 450
RON 6,189.63
(VAT Included)
RON 5,115.40
(VAT excluded)
Delivery costs are not included
Sold by:
Insaterm
How can we help you?
Description

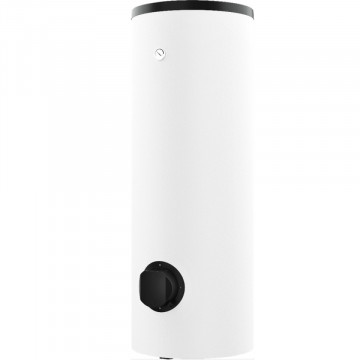

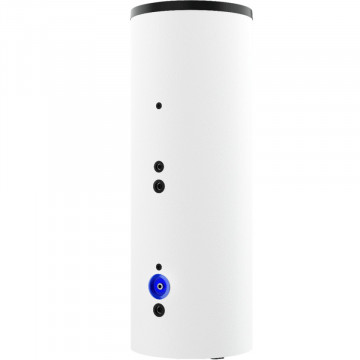

Floor-standing indirect cylinder with coil Ariston BC1S 450
- Tank protection with exclusive titanium-based eanmel treatment at 850˚C
- Single-coil, folded-down for uniform heating of the tank
- Equipped for recirculation
- Upper flange with integrated anode and sensor sheath
- 110 mm front inspection flange
- Magnesium anode
- Adjustable support feet
- 3 kW electrical integration kit (for 200 and 300 liters models) or 6 kW available on request
- Ring nut for electrical kit insertion
Technical Data
Capacity 450 liters
Coil exchange surface 1,6 m2
Max absorbed power 43 kW
Warming time 46 min.
DHW Production
ΔT=30°C 1057 l/h
ΔT=45°C 822 l/h
Pressure loss trought coil 13,0 mbar
Max working pressure 10 bar
Heat dispersion 2,1 kWh/24h
Cooling costant 0,13 wh/l k J
Max working temperature 90°C
Net weight 151 kg
Details
SKU
3070610
Categories
Weight
140 kg
Brand
Physical Characteristics
Volume
201-500 liters
Material
Steel
Colour
White
DHW Tank Type
with 1 Coil
