Sensor set RAS-C2, ventil RA-N DN15 Angle and Lockshield RLV

Description

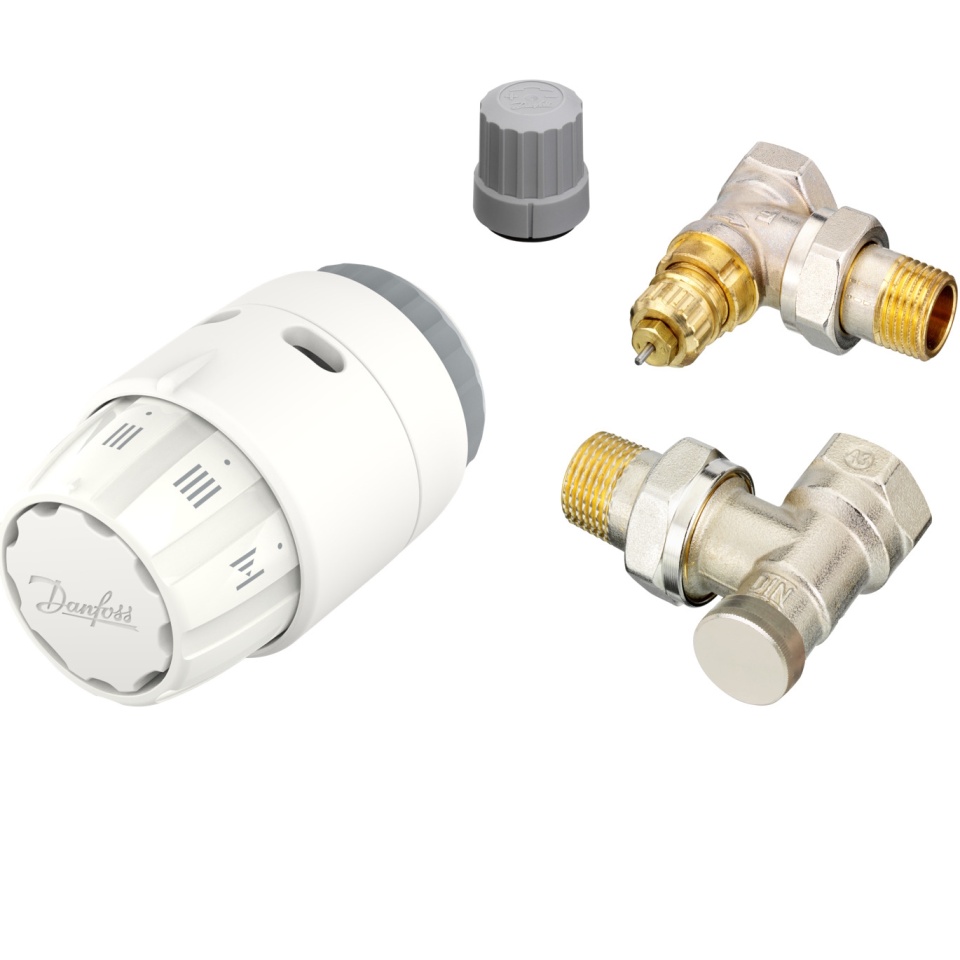

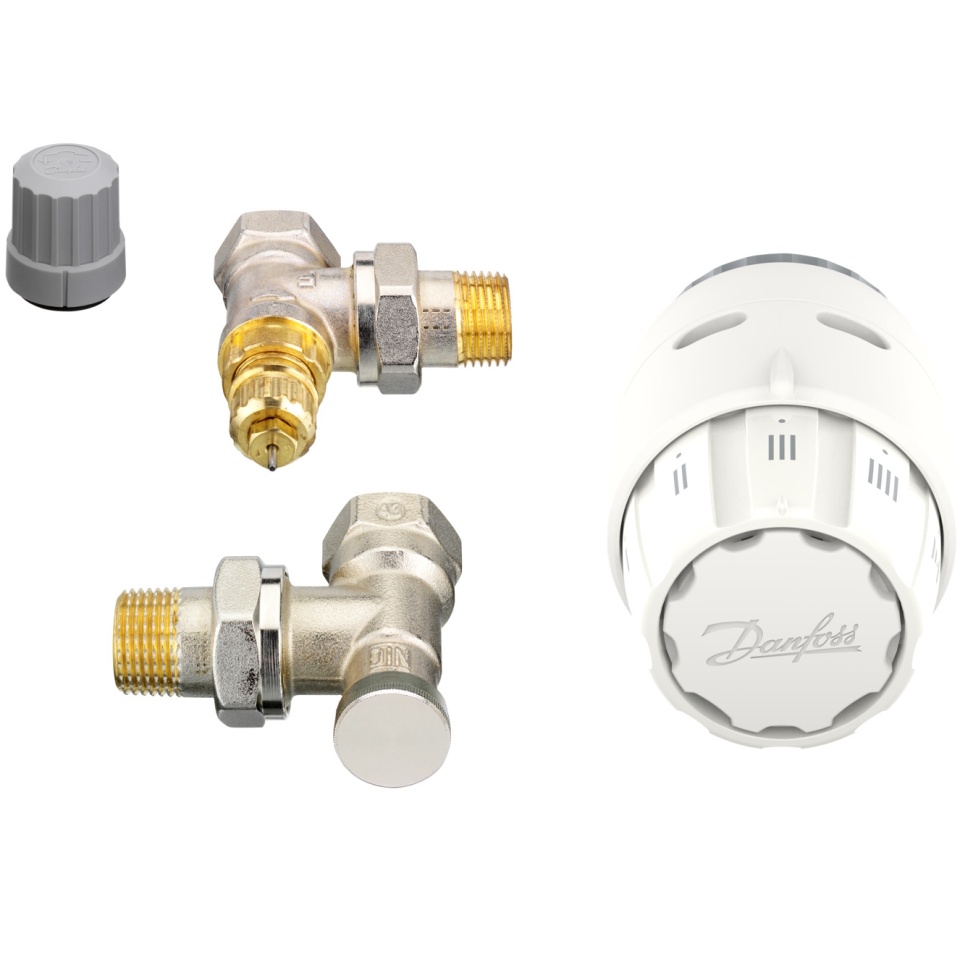

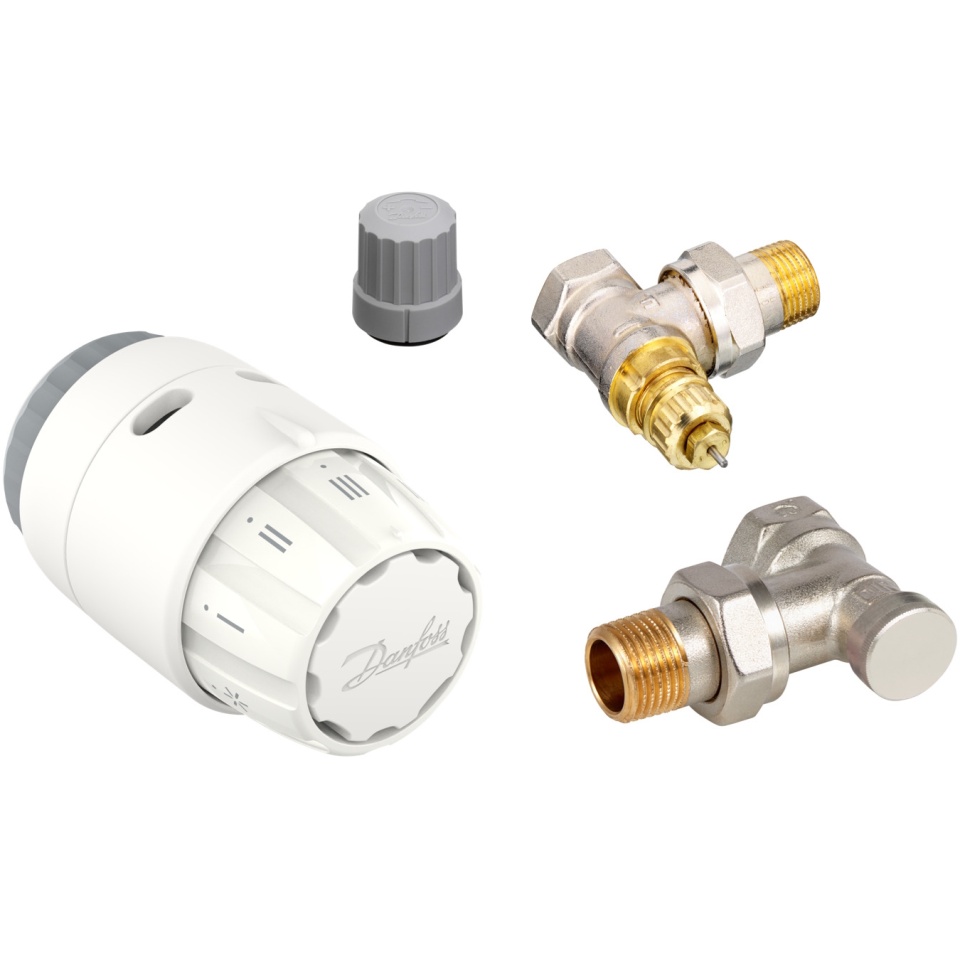

Sensor set Danfoss RAS-C2, ventil RA-N, DN 15, Angle and Lockshield RLV

RAS-C² radiator thermostats are designed for use in 2-pipe domestic heating systems.
All RAS-C² Combi Packs comprise of a angled or straight pattern bi-directional valve and a RAS-C2 sensor designed for 2-pipe heating systems.

Combi Packs are also available with a RLV lockshield valve or drain-off tailpiece.
The valves have a ½” BSP (R½”) tail piece connection to the radiator and are available with
15mm, 10mm or 8mm compression fitting or an elbow with 10mm push-fit fitting to connect the
valve to the pipe work.
The valve bodies are reversible and bi-directional and include a flow-selectable feature to ensure
trouble free installation without any risk of water hammer. For optimum performance, Danfoss
recommend the sensor be mounted horizontal where at all possible.
The valve is supplied with a protective cap, which can be used for manual regulation during the
construction phase. The cap must not be used as a manual shut of device.

RAS-C² sensors incorporate a “Frost Protection” setting and a “Positive Off” feature for maximum
user flexibility. Temperature range is from 8°C to 28°C.
