Multi-zone Thermostat Q8RF

Description

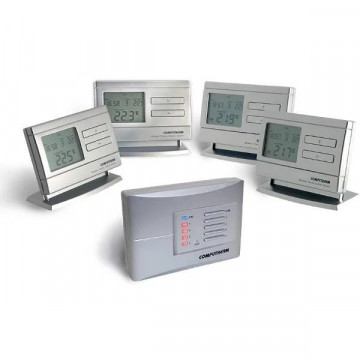

Computherm Q8 RF multi-zone room thermostat

it is suitable for ordering a heater or air conditioner, being compatible with most central heating boilers sold in Romania.

It can be easily connected to any boiler or air conditioner, if it is equipped with connection terminals, with the help of a 2-wire cable regardless of whether the control voltage is 24 V or 230 V.
The basic equipment of the appliance contains 2 thermostats and 1 receiver. If necessary, this assembly can be completed with 2 more thermostats.
The reception unit notices the start / stop signals of the thermostats, the central heating control (or the air conditioner), and also controls the closing / opening of the zone valves (maximum 4 zones - 230 VAC electric current and max. 2A resistive / 1A inductive) of the heating system.
By dividing the heating system into zones, they can work individually or together. Thus, only the rooms that are used at that time will be heated (eg the living room and bathroom during the day, and the bedroom at night).
The communication between the thermostats and the receiver is made by radio waves (radio frequency), so it is not necessary to make wiring between them.
The COMPUTHERM Q8 RF radio frequency thermostat is mobile.
The range is about 50 m in open ground and about 30 m in a building, being influenced by the structure of the building. The range is much shorter if the waves encounter metal structures, reinforced concrete, etc.
The package contains: Computherm Q8 RF transmitter x2 pcs., Computherm receiver x1 pcs. Transmitter support x2 pcs., Dowel and holsurub fixing kit x6 pcs
Thermostat technical data (transmitter):

Temperature measurement range: 5-35 ºC (0.1 ºC steps)
Temperature adjustment range: 5-35 ºC (steps 0.5 ºC)
Temperature measurement accuracy: ± 0.5 ºC
Temperature calibration range: ± 3 ºC (0.1 ºC steps)
Switching sensitivities: ± 0.1 ºC, ± 0.2 ºC, ± 0.3 ºC
Storage temperature: -10 ° C ... + 40 ° C
Supply voltage: 2 x 1.5 V LR6 (AA) alkaline batteries
Power consumption: 1.5 mW
Battery life: approx. 1 year
Operating frequency: 868.35 MHz
Dimensions: 130 x 80 x 22 mm (without stand)
Weight of thermostat without batteries: 112 g
Temperature sensor type: NTC 10kOhm ± 1% at 25 ° C
Receiver technical data:

Supply voltage: 230 V AC, 50 Hz
Power consumption: 0.3 W
Sarc. max. at the boiler switch relay: 24 V AC / DC, 230 V AC; 50 Hz, 6 A (1 A inductive)
Max voltage at zone outputs: 230 V AC, 50 Hz
Sarc. max. at zone outputs: 1 A (0.5 A inductive)
Range: approx. 50 m in open ground
Weight: 210 g.
