Programmable Thermostat Q7

Description

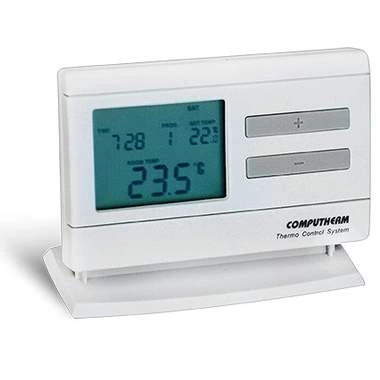

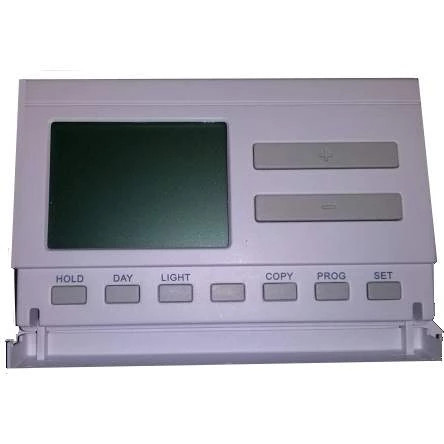

Programmable Thermostat Computherm Q7

The display is illuminated and easy to read and indicates both the set temperature and the existing temperature in the room. The 2 big buttons + and -, allow to overwrite the value of the temperature set by the program.
Schedule operation for 7 days, with different programs for each day of the week.
Pump anti-lock function: at 0 and 00 minutes, the thermostat commands the boiler to start for 1 minute. The order is given only if, for 24 hours, the thermostat has not given the start command.
Adjustment of time periods every 10 minutes.
The thermostat contains an output relay with 3 connection points without electrical potential: NO (1 -up), COM (2 -medium) and NC (3 -down). Use the NO and COM terminals if the thermostat controls a heater.
Chronothermostat technical data:

thermosensitive element NTC 10 kOhm at 25 ° C ± 1%
adjustable switching sensitivity ± 0.1 ° C; ± 0.2 ° C; ± 0.3 ° C
temperature control range 5–35 ° C from 0.5 to 0.5 ° C
temperature display range 0–35 ° C from 0.1 to 0.1 ° C; temperature display accuracy ± 0.1 ° C
temperature allowed for storage - 10 ° C .. + 60 ° C
supply voltage 2 x 1.5 V alkaline batteries LR6 (AA)
operating frequency 868.35 MHz; frequency band 868 - 868.6 MHz
thermostat dimensions (mm) 130 x 80 x 35 (without support)
