Receiver Unisenza Plus

Description

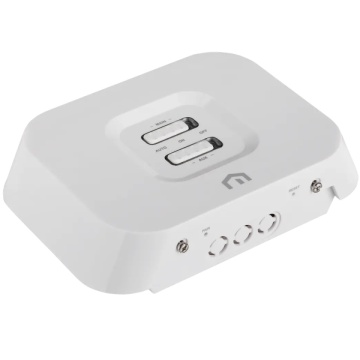

Receiver Purmo Unisenza Plus

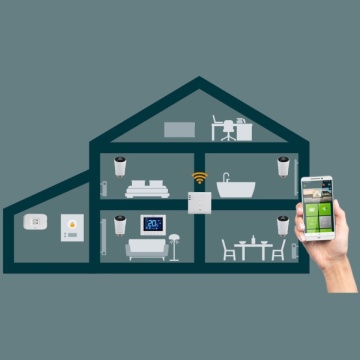

The Unisenza Plus Receiver can be used for wireless control of boiler, pump or zone valves in a central heating system. It has a two-channel relay output for control of both heating and hot water and has an OpenTherm interface with automatic detection. In addition, it can be paired with the Unisenza Plus Thermostat and Unisenza Plus Electronic Thermostatic Head in the product platform to support multiple applications and create a complete smart heating solution.

• Receiver for wireless control of a boiler, pump and/or zone valves in a central
heating system
• Two independent channels for controlling heating, cooling and/or a timer for
domestic hot water
• Possibility to pair up to 16 ETHs with the receiver, e.g. to switch off pumps or
boilers when valves are closed
• Coupling functions with the various Unisenza Plus thermostats, the electronic
thermostatic head (ETH) and the wiring centre
• Integrated OpenTherm controller function with automatic OT/+ interface
detection for integration with other OpenTherm devices

Specifications

Output interface Relay On/Off or OpenTherm (OT/+) protocol specification v4.1
Switch rating
(Volt-free output)
Main: 230V/50Hz, 5A resistive, 3A inductive
Aux: 230V/50Hz, 5A resistive, 3A inductive
Firmware update Over the air firmware update capability
Wireless Communication ZigBee 3.0, 2.4GHz
Power Supply 230Vac 50Hz
Operating Environment Indoor, residential & commercial
Operating Temperature 0°C – 50°C
Storage Temperature -10°C – 60°C
Operating/Storage Humidity <90% RH, non-condensing
Dimensions 144.6(W) x 99.8(D) x 34.5(H) mm
Ingress Protection Rating IP30
Regulation CE, UKCA
Environmental Requirement RoHS compliance
