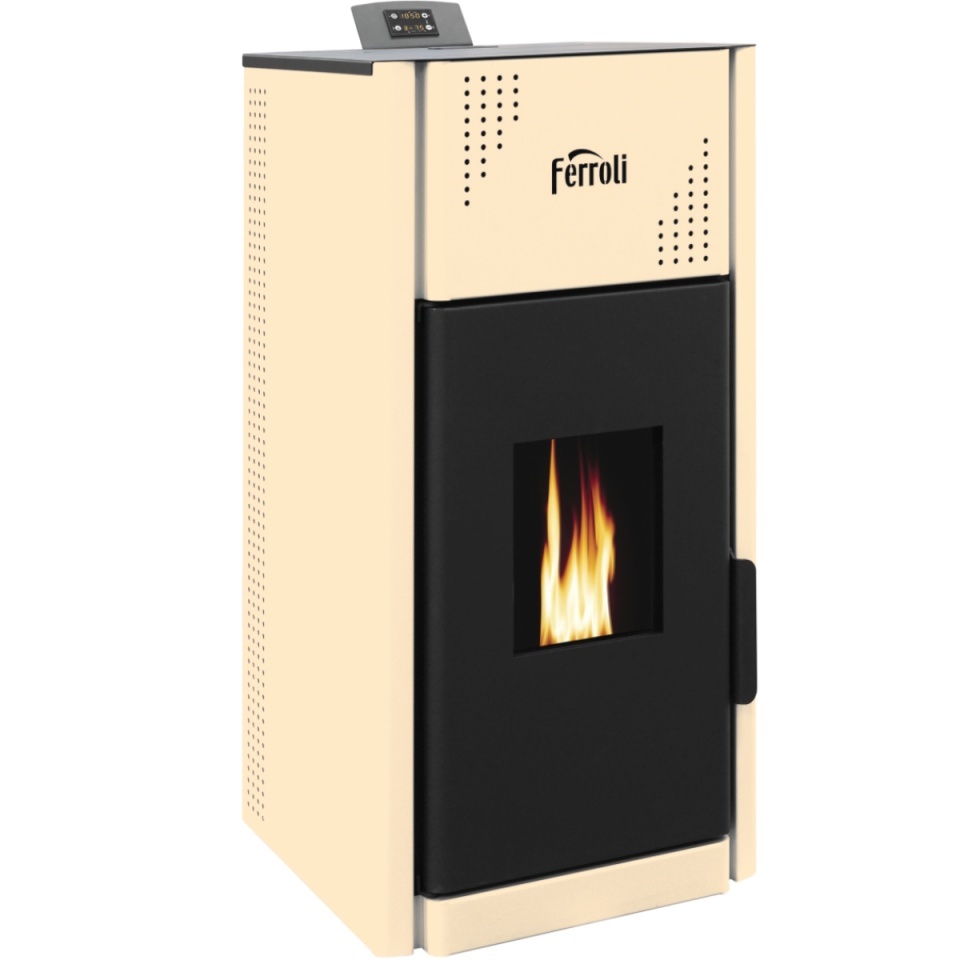

Thermo-stove Mirano Pellet Pro 30

Description

Mirano Pellet Pro 30 is a fully equipped Ferroli pellet thermo-stove:

circulation pump, expansion vessel, thermostat, pressure switch, etc., for central heating.

Combustion control is optimized using a modulation algorithm, which automatically decreases the dosage of pellets and air as the boiler approaches the desired temperature.

ADVANTAGES:

does not require a separate technical room
possibility of connecting an external boiler - DHW production
possibility of connecting an ambient thermostat
EQUIPMENT

safety thermostat

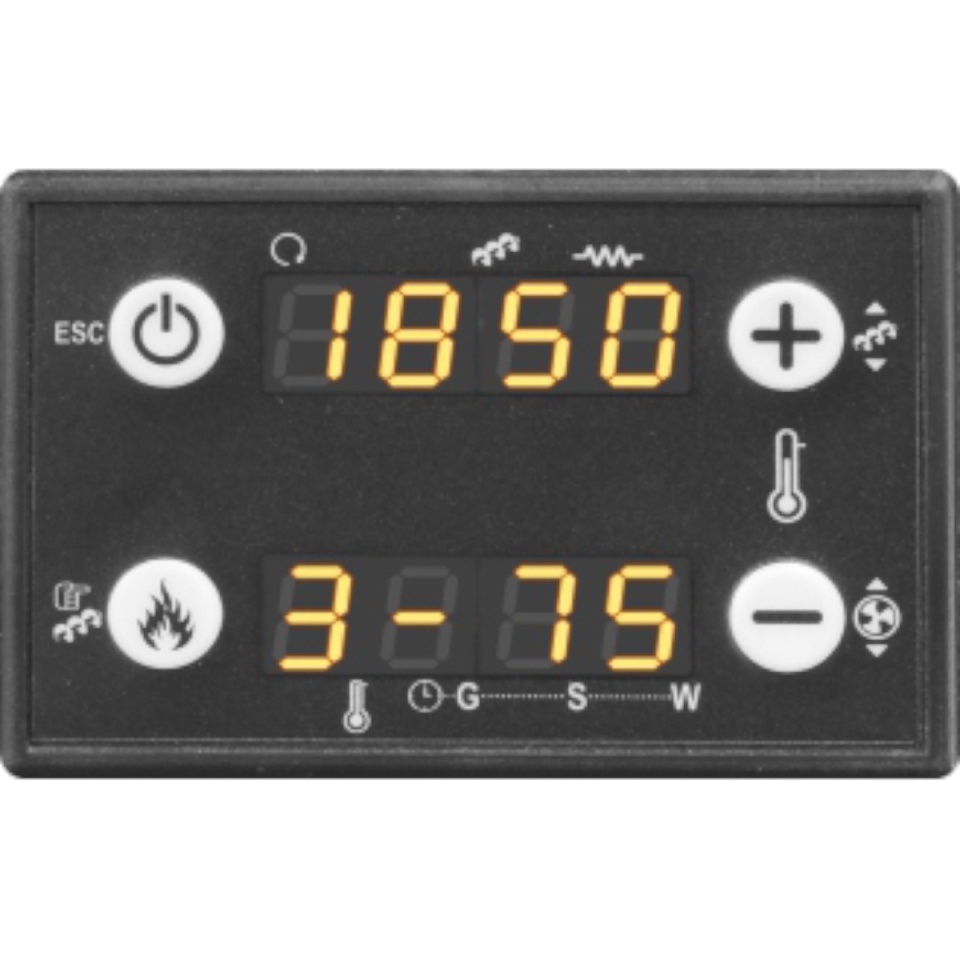

digital control panel
self-cleaning pellet burner
pellet hopper
removable ash tray

Technical data Mirano Pellet Pro

Maximum/minimum power 30.51 / 11.15 kW
Thermal power emitted in the installation room Max / Min 4 / 2 kW
Average pellet consumption 5.8 kg/h
Efficiency (nominal / reduced) 94 / 94%
Maximum volume to be heated: up to 860 m³
Flue gas duct ø 80 mm
Fresh air duct ø 60 mm
Bunker volume 45 kg
Dimensions (HxWxD) 1130x625x660 mm
Weight 170 kg
