Vitodens 200-W B2HAR58 wall-mounted Gas boiler

Description

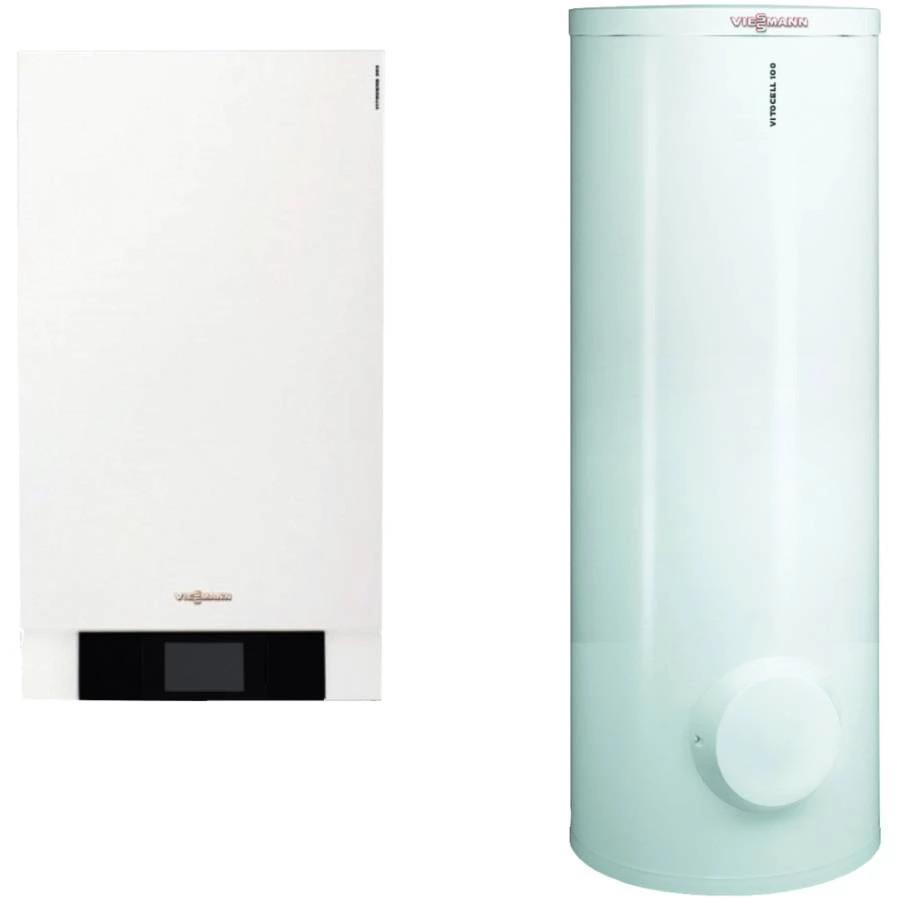

Promo: Vitodens 200-W B2HAR58 wall-mounted boiler,

operating on the principle of condensation with MatriX-cylindrical modulating burner and Inox-Radial heat exchange surface + Vitocell 100-W 300 Tank

The boiler has a fan and works with forced draft; the tank has 300 liters and is located near the boiler
The tank is protected against corrosion by Ceraprotect enamel and is equipped with: magnesium anode, polyurethane foam insulation, domestic hot water recirculation connection, inspection flange and cleaning. Optionally it can be equipped with an electrical resistance (for mounting in the flange cover), additional cost.
The delivery set includes: Boiler Vitodens 200-W, heating; Automation for Vitotronic 200 HO1B outdoor temperature controlled operation; Vitocell Boiler; Boiler water temperature sensor; Exhaust gas exhaust system (80/125), consisting of external wall connection and 87 ° elbow; Vitoconnect 100 type OPTO2 for internet connection, only in combination with Vitotronic 200.

Easy install kit, consisting of 2 expansion vessels and 2 pumps costs separately!

Boiler features:
Thermal power = 60 kW (flow / return 50 / 30oC); Thermal power = 54.4 kW (round trip 80 / 60oC)

Maximum permissible flow temperature = 80oC

Permissible working overpressure = 4 bar; power consumption = 50 W

Standard efficiency: up to 109% (return / return 40 / 30oC)

Condensate flow = max. 28 liters / day

Maximum gas consumption = 5.95 m3 / h; Flue gas temperature = 70oC

Flue gas connection (double, coaxial) = 100/150 mm

Dimensions: BxAxH = 480x380x850 mm

Weight = 65 kg

Flow / return connections = 1 1/2 "; Gas connection = 3/4"

Tank features:
Capacity: V = 300 liters

Dimensions: DxH = 672x1465 mm

Thermal power Q = 53 kW

Maximum hot water flow (at 45oC) = 1,302 liters / h
