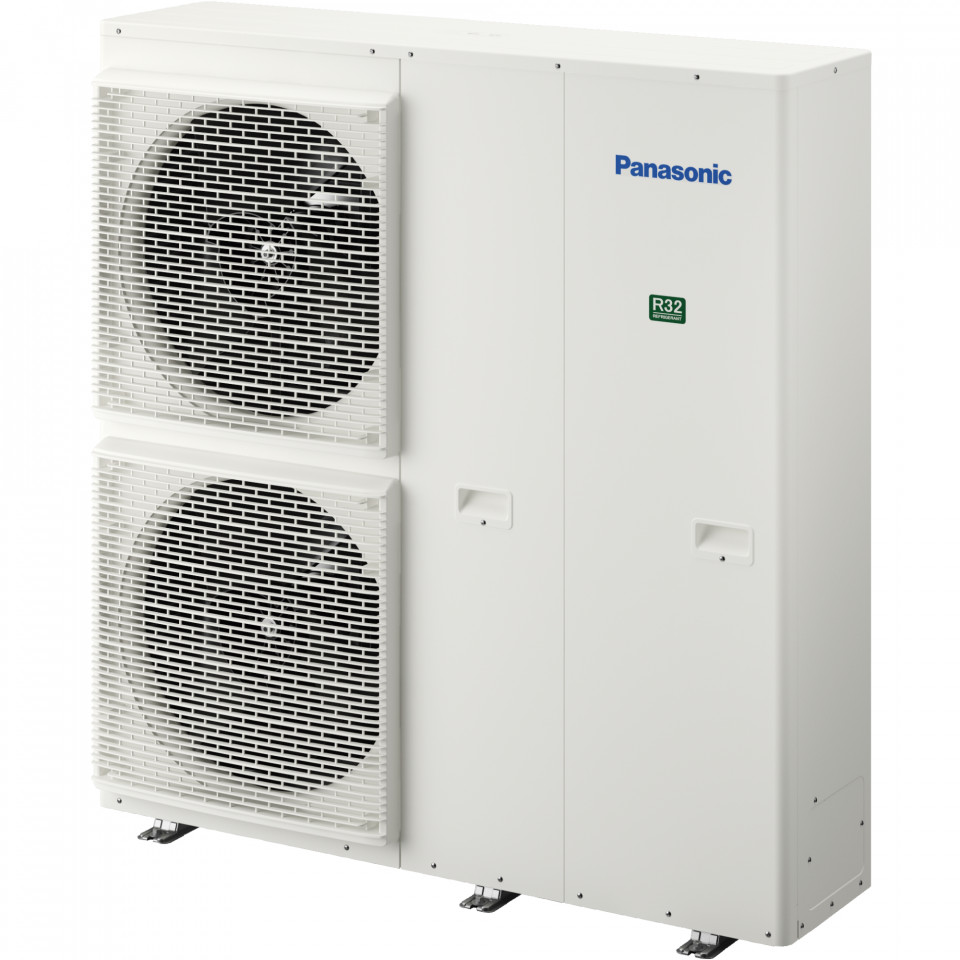

Air-to-water Heat Pump Aquarea T-CAP Mono-bloc WH-MXC09J3E8 9kW 3phase

Description

Air-to-water Heat Pump Aquarea T-CAP Mono-bloc WH-MXC09J3E8 9 kW 3 phase

Aquarea warms your home effectively and efficiently, even with extreme outdoor temperatures. Aquarea can also cool space in summer and bring hot water all year round.

Aquarea T-CAP is the range for retrofit and new builds, keeping Total Capacity even at extremely cold ambient.

The Mono‑Bloc system: It is only an outdoor unit. The installation doesn’t require refrigerant connections, as the unit is directly connected to the heating and/or hot water circuits.

Energy efficiency: A+++ in heating at 35°C / “A” water pump with variable speed / Built-in flow meter.
Flexibility: Built-in magnetic water filter.
Comfort: Constant capacity and operation range down to -20°C / 65°C water outlet temperature.

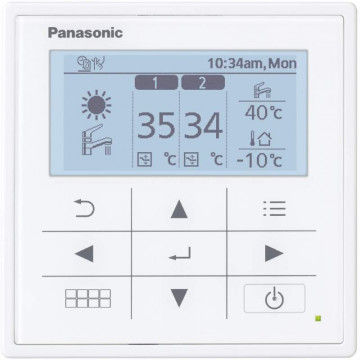

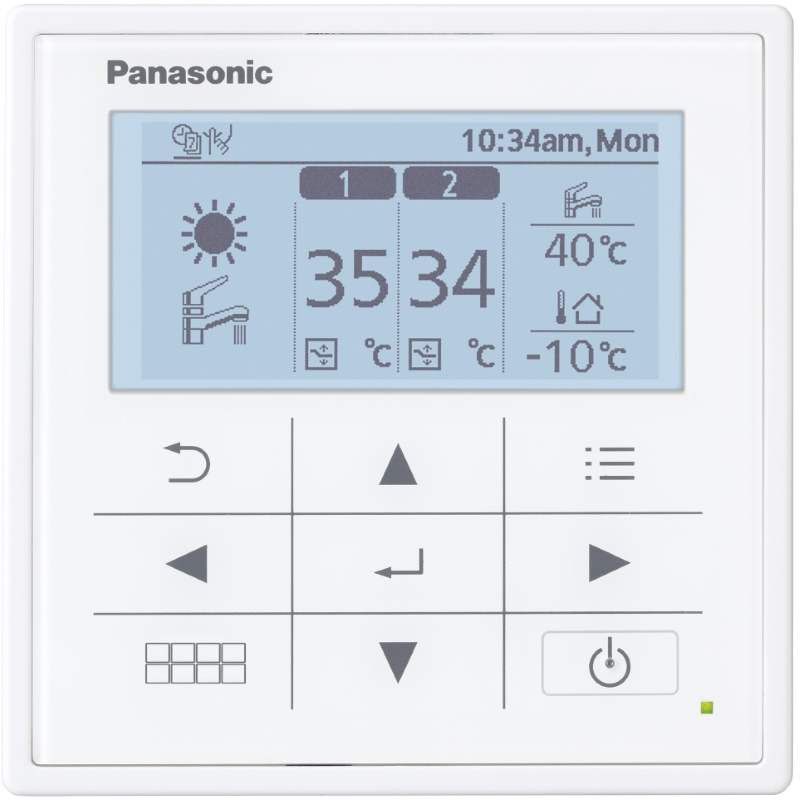

Control: Additional functions with optional PCB (2 zone control, bivalent control, Smart Grid contact and more).
Connectivity: Optional Aquarea Smart and Service Cloud and integration into BMS projects.

Specifications

Heating capacity / COP (air +7°C, water 35°C) kW / COP 9 / 5.08
Heating capacity / COP (air +7°C, water 55°C) kW / COP 9 / 3.08
Heating capacity / COP (air +2°C, water 35°C) kW / COP 9 / 3.81
Heating capacity / COP (air +2°C, water 55°C) kW / COP 9 / 2.54
Heating capacity / COP (air -7°C, water 35°C) kW / COP 9 / 3.08
Heating capacity / COP (air -7°C, water 55°C) kW / COP 9 / 2.12
Cooling capacity / EER (air 35°C, water 7°C) kW / EER 9 / 3.09
Cooling capacity / EER (air 35°C, water 18°C) kW / EER 9 / 4.46
Medium climate heating (water 35°C / water 55°C)
Seasonal energy efficiency
age s 195 / 140%
AIM 4.96 / 3.57
Energy class A+++ to D: A+++ / A++
Warm climate heating (water 35°C / water 55°C)
Seasonal energy efficiency
age s 256 / 171%
AIM 6.47 / 4.34
Energy class A+++ to D: A+++ / A+++
Cold climate heating (water 35°C / water 55°C)
Seasonal energy efficiency
age s 169 / 127%
AIM 4.31 / 3.26
Energy class A+++ to D A++ / A++

Sound power Heat 65 dB(A)
Dimensions HxWxD 1410 x 1283 x 320 mm
Net weight 140 kg
Refrigerant (R32) / CO2 Eq. 1.60 / 1.08 kg / T
Water pipe connector R 1¼"
Pump: Number of gears Variable speed, Power consumption (Min / Max) 32 / 173 W
Heating water flow (ΔT=5 K. 35 °C) 25.8 l/min
Integrated electric resistance capacity 3 kW
Power consumption: Heat 1.77 kW / Cool 2.91 kW
Operating and starting current
Heat 2.6A
Cold 4.3 A
Current 1 14.7 A
Current 2 13.0 A
Recommended fuse, supply 1 / 2 20 / 16 A
Recommended cable size, power supply 1 / 2 5x 1.5 / 3x 1.5 mm²
Operating range - outdoor environment
Heat -20..+35°C
Cold 10..+43°C
Water outlet Heat 20..65°C
Cold 5..20°C
