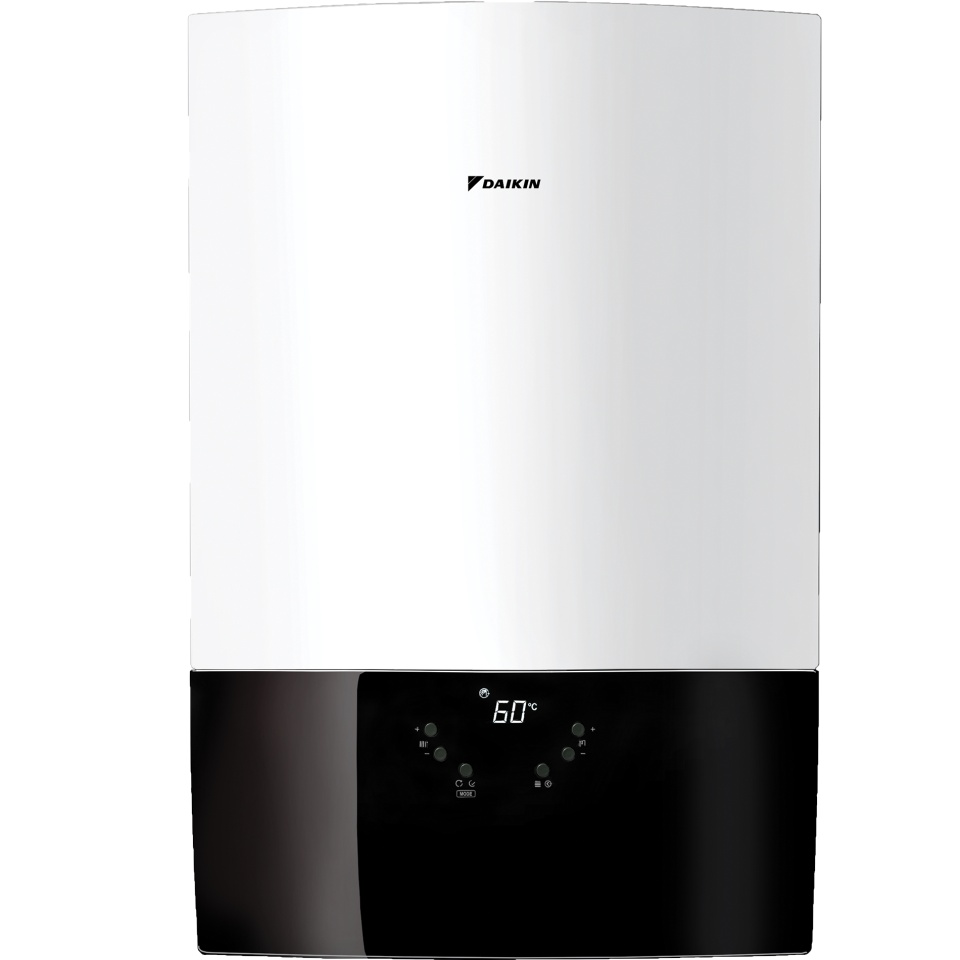

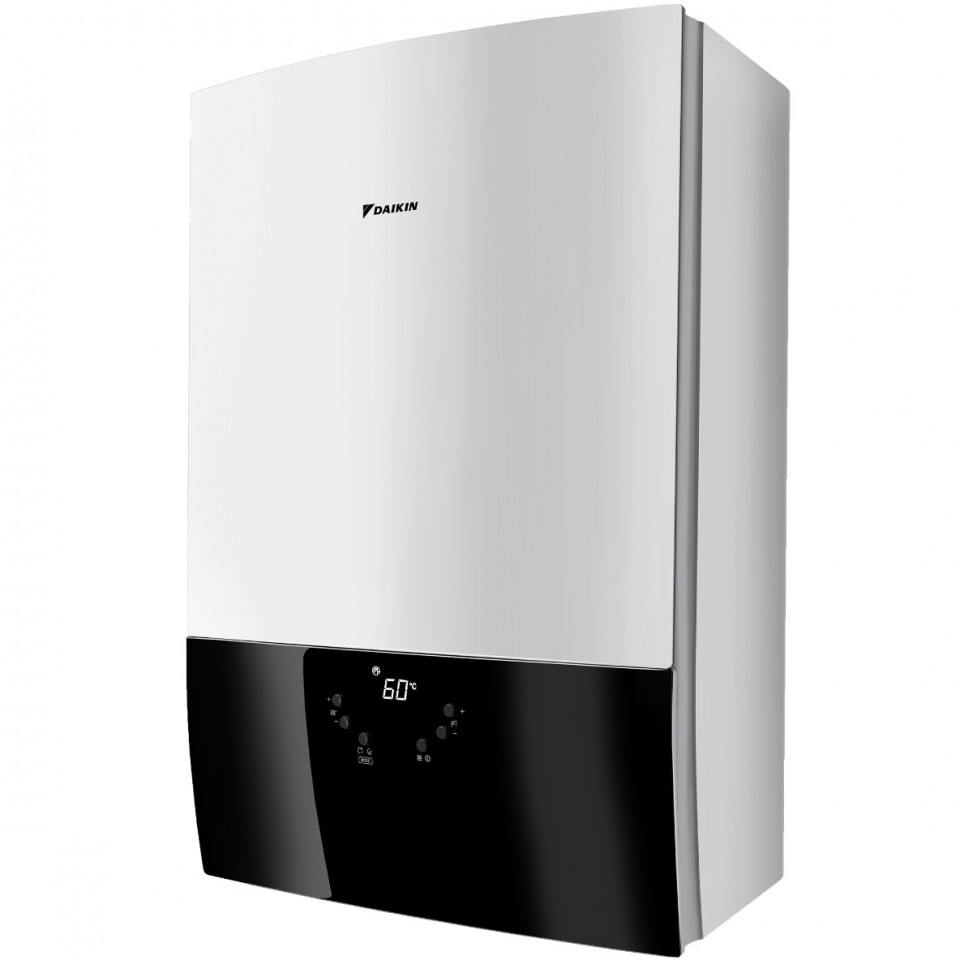

Altherma 3 C Gas W D2CNL024A1A 24

Name: Altherma 3 C Gas W D2CNL024A1A 24
Brand: Daikin
SKU: D2CNL024A1A
Price: 4628.07 RON
Availability: InStock

RON 4,628^.07 (VAT Included)

Delivery costs are not included

Financing through Online Credit smart by BT Direct

Calculate the rate

How can we help you?

Ask for details

Send us a message

Description

Easy to service: all parts are accessible by only removing the front panel
Very compact unit and flexible in use: possible to install in nearly all room conditions (inside the house as well as outside) thanks to freeze protection for water piping
High efficiency up to 107% with 1:5 modulation ratio.
Pneumatic combustion technology.

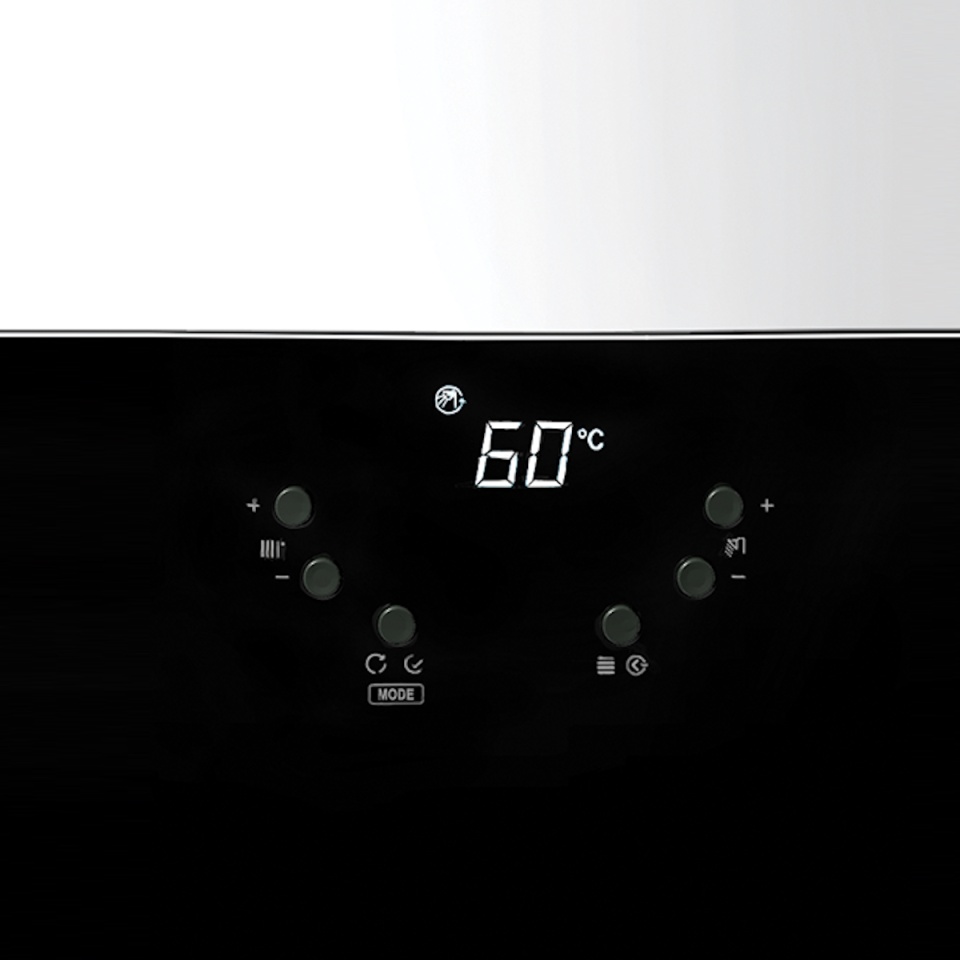

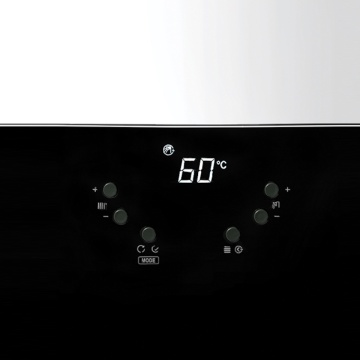

Compact unit with built in 7 liter expansion vessel, LCD control interface and freeze protection for
water piping.
NG only.
Not compatible with LAN adapter.
Dimensions (H x W x D): 590 x 400 x 256 mm

					D2CNL024A1AA
Gas	Consumption (G20)		Min	m³/h	0.40
			Max	m³/h	2.50
	NOx class				6
	NOx level (G20)			mg/kWh	42
Central heating	Heat input Qn (net calorific value)	Nom	Min	kW	4.0
			Max	kW	23.5
	Heat input Qn (gross calorific value)	Nom	Min	kW	4.4
			Max	kW	26.1
	Output Pn at 80/60°C		Min	kW	3.8
			Nom	kW	22.8
	Output Pnc at 50/30°C		Min	kW	4.4
			Nom	kW	24.0
	Output at 37/30°C		Nom	kW	4.4
	Water temperature		Max	°C	100
Domestic hot water	Heat input (net calorific value) Qnw	Nom	Min	kW	4.0
			Max	kW	25.5
	Heat input (gross calorific value) Qnw	Nom	Min	kW	4.4
			Max	kW	28.3
	Temperature		Max	°C	65
Space heating	General		ηs (Seasonal space heating efficiency)	%	93
			Seasonal space heating eff. class		A
Supply air	Concentric				Yes
Flue gas	Temperature		Max	°C	81
	Mass flow (G20)		Max	kg/h	1.7
Casing	Colour				Titanium White (Ral9003)
	Material				Powder painted galvanised steel plate
Dimensions	Unit	Height	Casing	mm	590
Domestic hot water heating	General		Declared load profile		XL
			Water heating energy efficiency class		A
