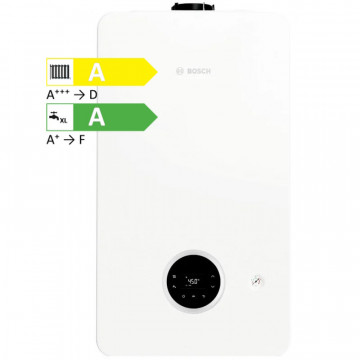

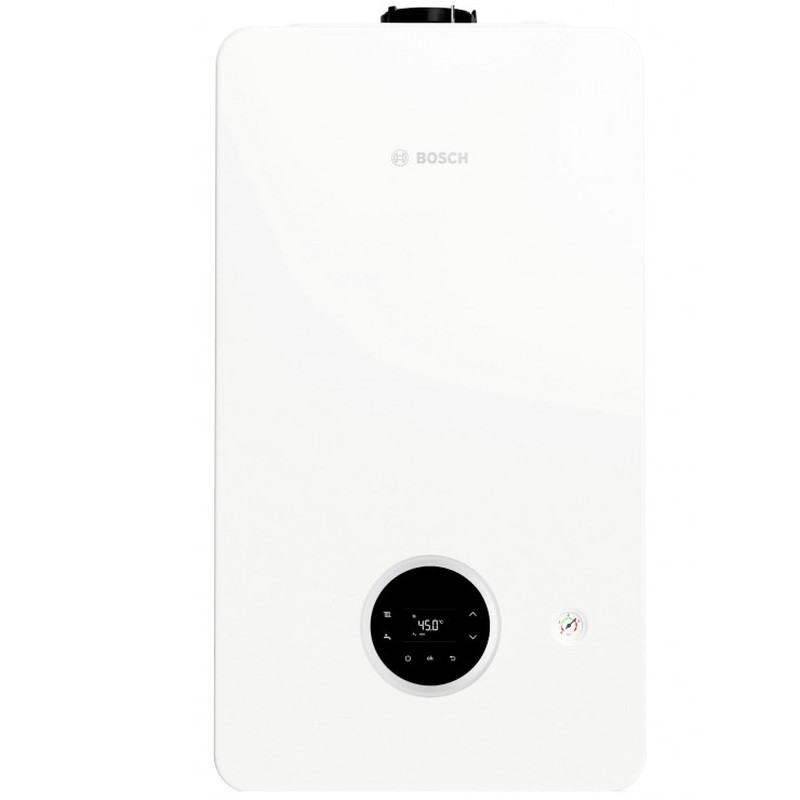

Condensing gas Boiler Condens 2200 W GC2200W 24 C 23

Description

Condensing gas Boiler Bosch Condens 2200 W GC2200W 24 C 23, flue kit included

Condens 2200 W is the new compact and versatile condensing wall boiler for heating and domestic hot water production.

Thanks to the modulation range (1:5) adapts to the actual need for heat.

Maximum reliability
The new Condens 2200 W boiler stands out not only for its small size, but also for its high strength, guaranteed by the primary heat exchanger in aluminum alloy Al-Si WB6.

High performance in class A+
The new Condens 2200 W guarantees a seasonal efficiency of 94%, the maximum achievable by a condensing boiler. If combined with a modulating thermoregulator with climatic function, it is also able to reach Class A+.

Great efficiency in a small space

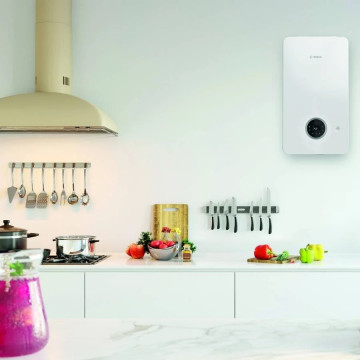

The compactness and versatility of the new Condens 2200 W boiler make it the ideal solution in case of replacement, because it can adapt to any domestic environment2.

Advantages

• Small size: fits everyone home environment and ideal for replacement operations
• Energy savings through efficiency seasonal equal to 94%
• New rounded design
• Compatible with Bosch EasyControl thermostat, remote control via special App.

Technical data

Caloric output/caloric demand
Nominal heat output max. (Pmax) 40/30°C 25.2 kW
Nominal heat output max. (Pmax) 50/30°C 25.2 kW
Nominal heat output max. (Pmax) 80/60°C kW 24.0 kW
Nominal thermal load max. (Qmax) kW 24.5 kW
Nominal thermal power min. (Pmin) 40/30°C 5.3 kW
Nominal thermal power min. (Pmin) 50/30°C 5.3 kW
Nominal thermal power min. (Pmin) 80/60°C 4.8 kW
Nominal thermal load min. (Qmin) 4.9 kW
Nominal heat output max. hot water (PnW) 25.0 kW
Nominal thermal load max. hot water (QnW) 25.5 kW
Max. power output heating curve 40/30°C 103%
Max. power output heating curve 50/30°C 103%
Max. power output heating curve 80/60°C 98%
Power output min. heating curve 36/30°C 109.5%
Power output min. heating curve 40/30°C 108%
Power output min. heating curve 50/30°C 108%
Power output min. heating curve 80/60°C 97.5%
Standard degree of use at heating curve 75/60°C 105%
Normalized degree of use at heating curve at 30% load 40/30°C 108.5%
Gas connection value
Methane gas H (Hi(15 °C) = 9.5 kWh/m3) 2.60 m3/h / Propane (Hi = 12.9 kWh/kg) 1.54 kg/h / Butane (Hi = 12.7 kWh/kg) 1.80 kg/h
Admissible gas connection pressure
Methane gas H 17-25 mbar / Liquefied gases 25-35 mbar
Expansion tank
Pressurization bar 0.75 bar
Nominal volume of the expansion tank according to EN 13831 6 liters
Hot water
Max. quantity of water 10 l/min
Water temperature 35-60°C
temperature max. hot water inlet 60°C
Max. water pressure admissible 10 bar
Flow pressure min. 0.3 bar
Specific flow according to EN 13203-1 (dT =30 K) 11.6 l/min.
Values for calculating the cross-section cf. EN13384
The mass flow rate of the burnt gases at nominal thermal output max./min. 11.31/2.40 g/s
Flue gas temperature 80/60°C at nominal heat output max./min. 70/58°C
Flue gas temperature 40/30°C at nominal heat output max./min. 50/35°C
Debris discharge pressure 140 Pa
CO2 at max. nominal heat output. 9.6%
CO2 at nominal thermal power min. 8.6%
NOx class – 6
Amount of condensate max. (TR = 30°C) 1.7 liters/h
The pH value approx. 4.8
Losses when the burner is off at dT=30 K 0.36%
Equipment category – II2 H 3 B/P
Installation type – B33(x), C11, C13(x), C33(x), C43(x), C53(x), C63(x), C93(x)
Electrical voltage AC ... 230 V, Frequency 50 Hz
Power absorbed max. (heating mode) 78 W
EMV limit value class – B
Sound pressure level 45 dB(A)
IP protection mode X4D
temperature max. tour 82°C
max. working pressure admissible (PMS) heating 3 bar
Allowed ambient temperature 0-50°C
Amount of hot water 7 liters
Weight (without packaging) 35 kg
Dimensions W × H × D 400 × 710 × 300 mm.
