Description

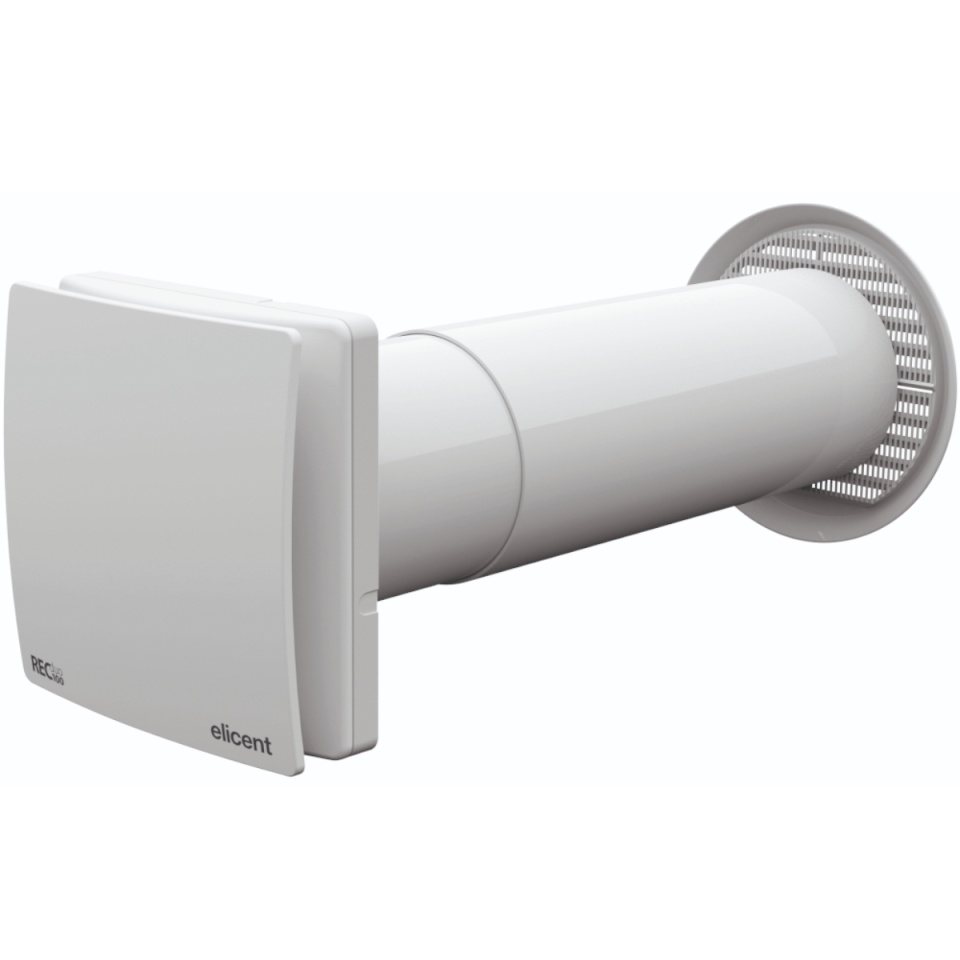

Elicent REC DUO 100 is the innovative decentralized HRU with heat recovery up to 90%.

Suitable for any  kind of rooms and ideal for a coupled installation to optimize the system efficiency.

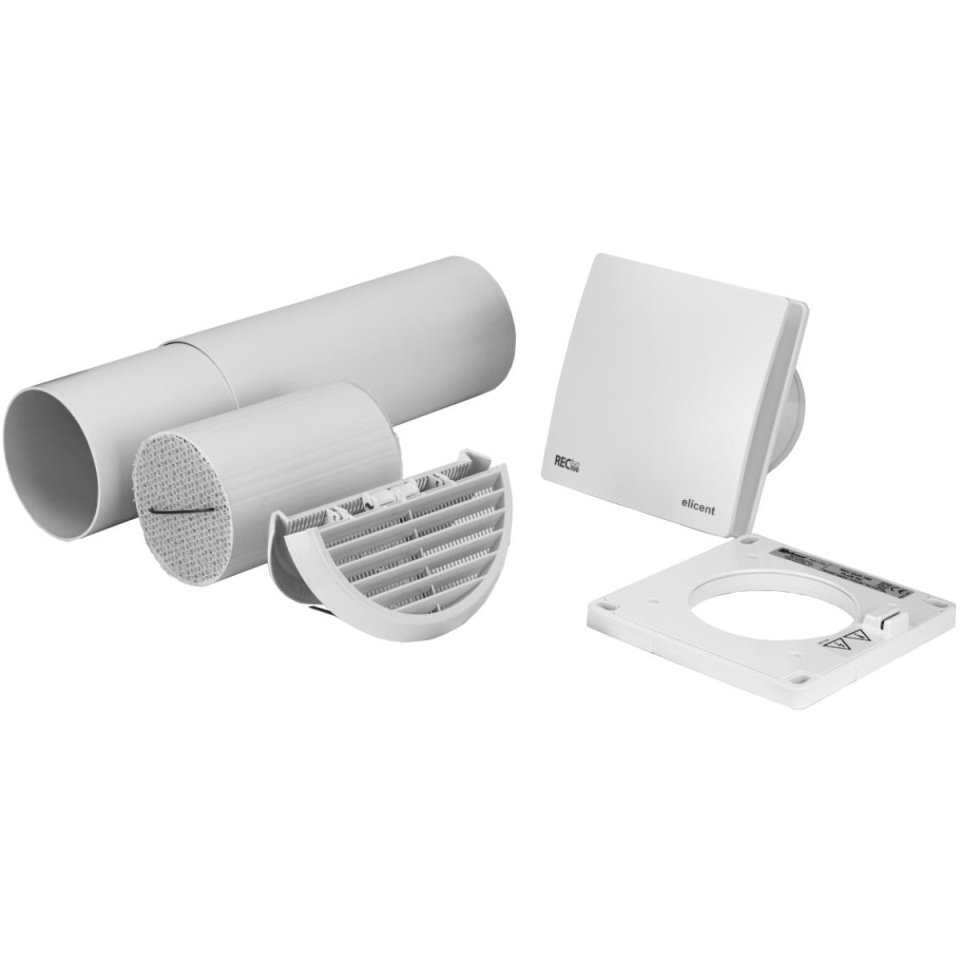

Easy Installation and maintenance:
– Magnetic coupling/uncoupling of the unit.

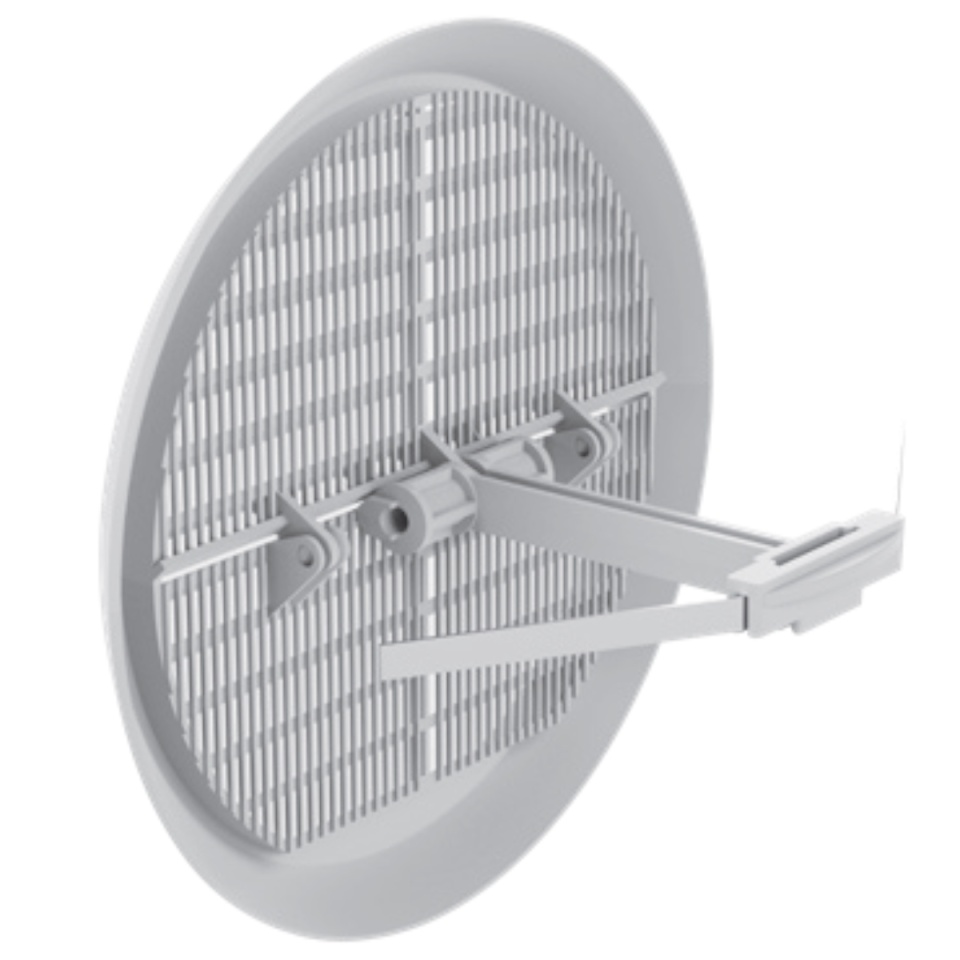

– External grill e with net installablefrom the inside.
– ø 100
– Telescopic duct.

Suitable for walls with thickness from 300 to 500 mm (adaptable to other wallthickness from 220 to 1000 mm).

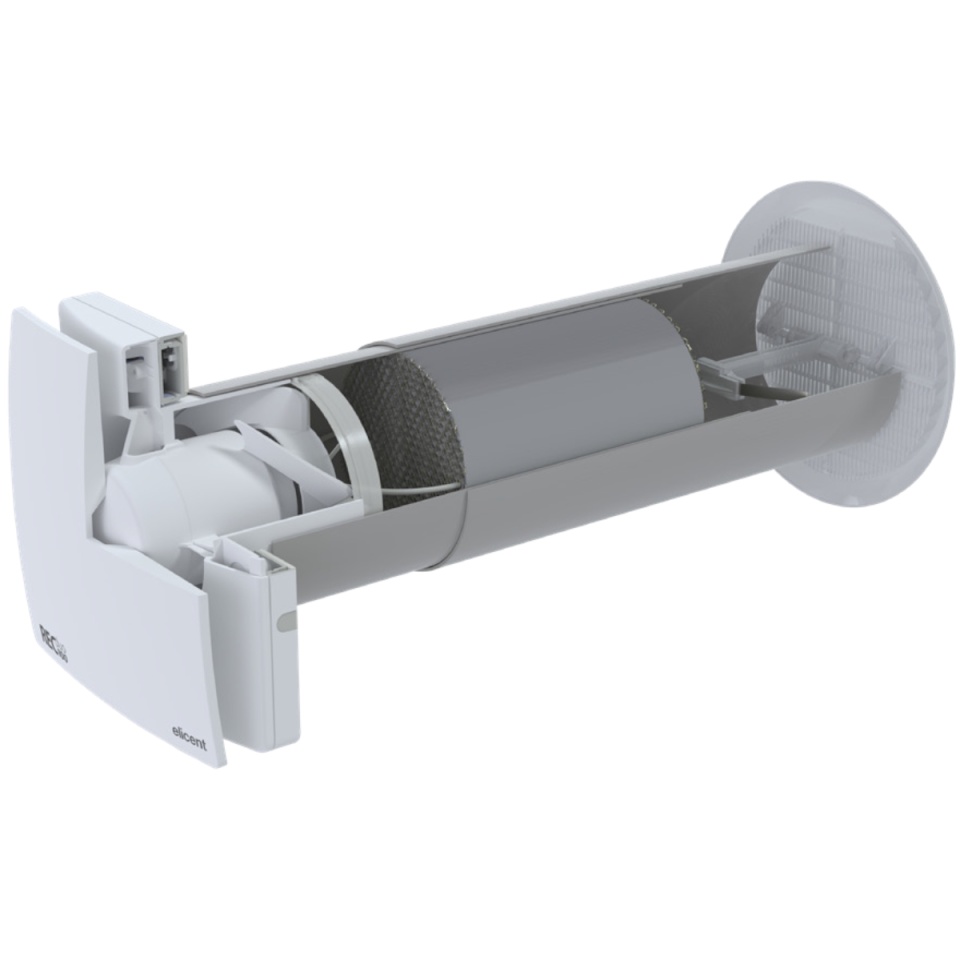

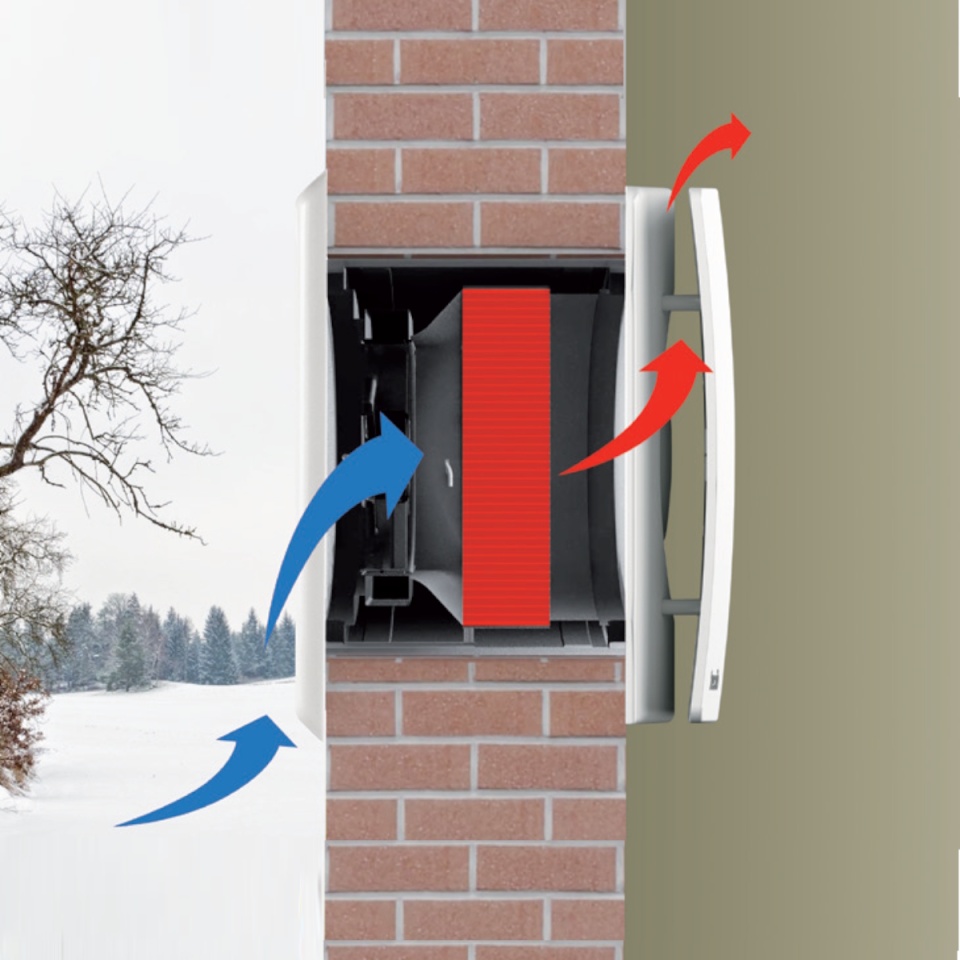

REC Duo 100 is a “push-pull” HRU with reverse flow. It  is provided with a ceramic heat exchanger that accumulatesthe heat from the extracted air during the “pull” cycle andreleases it to the new fresh air during the “push” cycle.

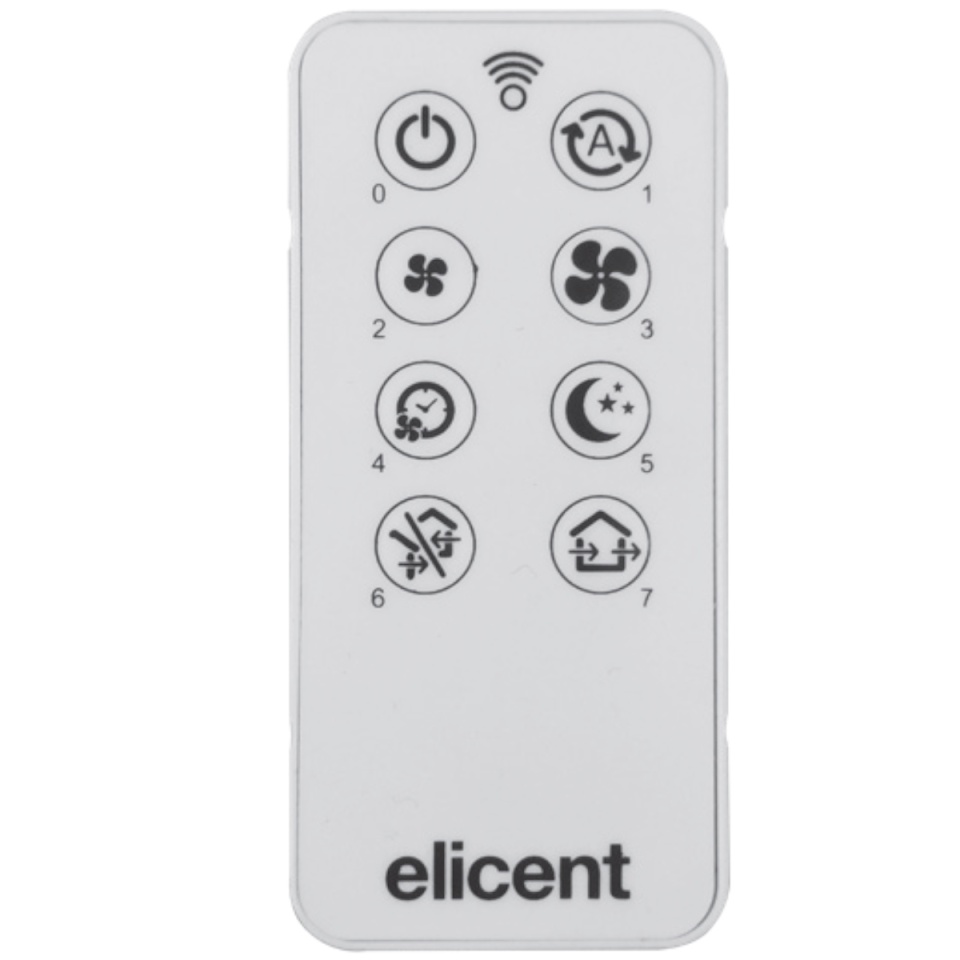

It is designed for a 24 hrs running at the minimum speed. The unit switches to the extraction operation modalitywhen speed boost is activated manually (through remote switch or remote controller RLS available as accessory) or automatically through the humidistat for versions REC Duo MHY and REC DUO RC.

Technical data

Power 1/2.8/3.5 W
Maximum noise level 15/33 dB(A)
Power supply 230 V-50 Hz-1 Ph
Number of speeds 3
Maximum air flow 40 mc/h
Connection diameter 98 mm
Timer Yes
On/off cord No
Humidity sensor No
Automatic blinds No
Function Standard
Nominal diameter 100 mm
Presence sensor No
Digital setting No
Operating mode Heat recovery
Air entry prevention system Not specified
Gross dimensions 160 x 160 x 500 mm
Gross weight 1.00 kg
