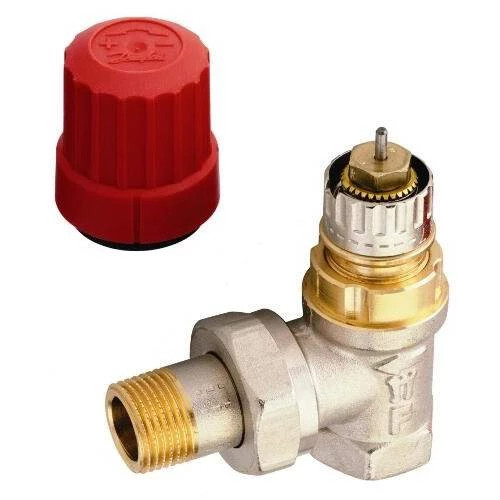

RA-N 15 Thermostatic Angle Valve

Description

Danfoss RA-N 15 (angle) thermostatic valve, 1/2".

The RA-N thermostatic valve can be used as a normal radiator valve, mounted on the flow, having the advantage that a thermostatic head can be added at any time without intervening on the installation.

The built-in kv preset makes it optional to use the radiator return valve
The valve bodies are supplied with a protective cap and an adjusting ring that can be used for manual adjustment during the construction phase.
The protective cover must not be used as a manual closing device for a long time. In such cases, the use of a special manual locking device (code no. 013G5000) is recommended.
Compression fittings for 15 mm, 10 mm or 8 mm copper pipes are available for RA-N valve bodies with 3/8 ”and 1/2” connections in accordance with BSP (British standard)
Faucet bodies are made of brass and nickel plated. the gasket pressure pin is made of chromed steel and works with a permanently lubricated annular gasket. The complete gasket assembly can be replaced without emptying the system
The corner thermostatic valve from the RA-N range comes as a straight or corner series model, but other constructive versions can be brought to order (British model, right angle with foot / left / right connection, etc.).
RA-N 15: kv = 0.04 -0.73 m3 / h

Fitting: 1/2 ", Angle model
