Sensor set RAS-C2 RA-FN DN 15 Angle

Description

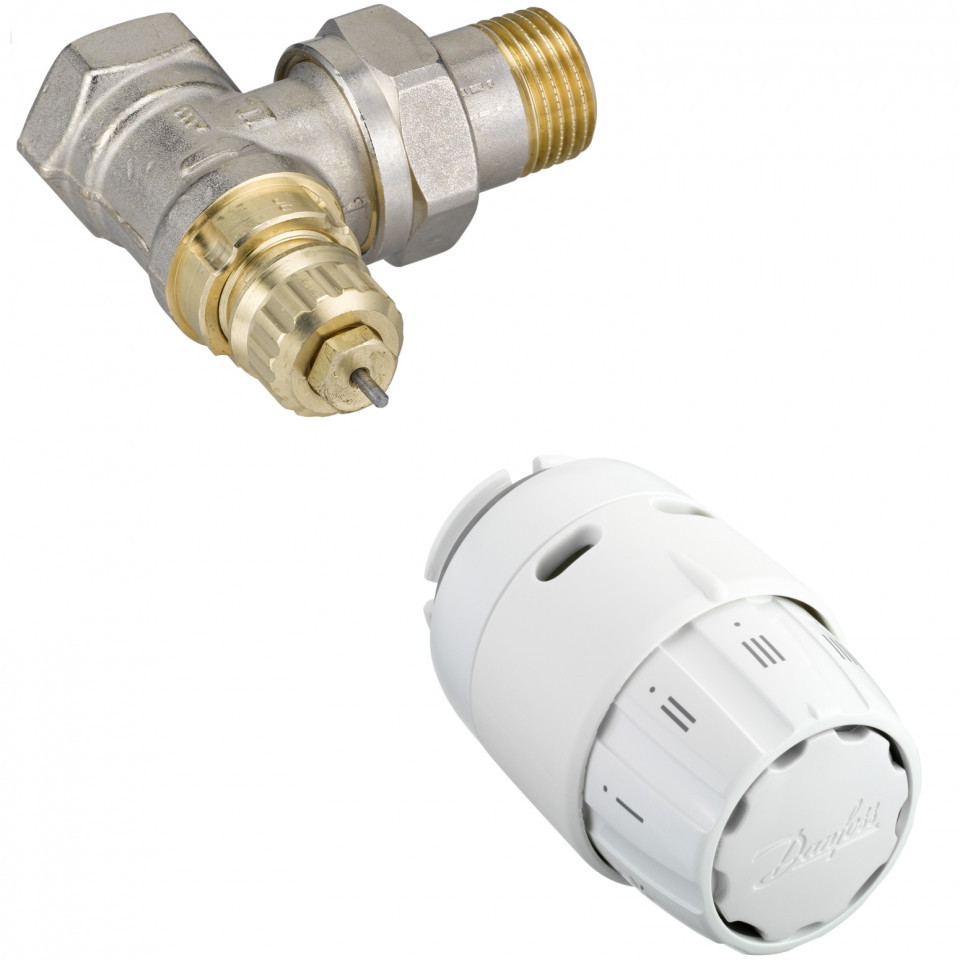

Sensor set, Box, Danfoss RAS-C2, RA-FN, DN 15, Angle

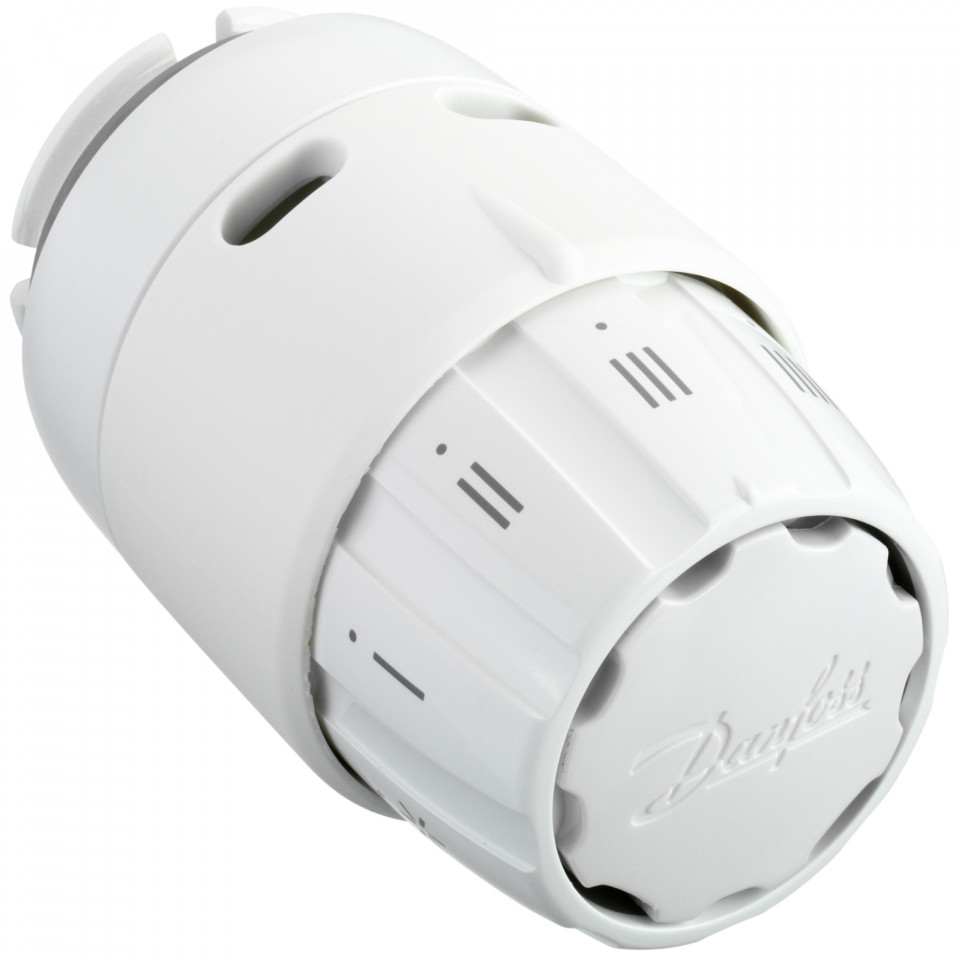

Thermostatic Sensor RAS-C² with RA-FN Radiator Valve (Fixed Capacity).

The RAS-C² thermostatic sensor is a self-actuating proportional controller with a small P-band. RAS-C² has a temperature range from 8 to 28°C and is equipped with frost protection setting and positive shut-off for maximum user flexibility.

The RAS-C² thermostatic sensor and the RA-FN valves are designed for use in 2-pipe domestic heating systems. The valves are manufactured from brass with nickel plating. The pressure pin of the gland seal is of chromium steel and works in a lifetime lubricated O-ring seal. The complete gland assembly can be replaced without draining down the system. RAS-C² thermostatic sensor Danfoss Heating Solutions VDAVH302 © Danfoss 06/2015 1 RA-FN angle valve RA-FN straight valve.

The valves are supplied with a grey protective cap, which can be used for manual regulation during the construction phase. The protective cap must not be used as a manual shut off device. A special manual shut off device (code no. 013G5002) should be used.

Compression fittings for 14 mm, 12 mm or 10 mm copper tube are available.

In order to avoid deposition and corrosion, the composition of the hot water must be in accordance with the VDI 2035 guideline (Verein Deutscher Ingenieure). It is recommended that formulations containing mineral oil are avoided.
